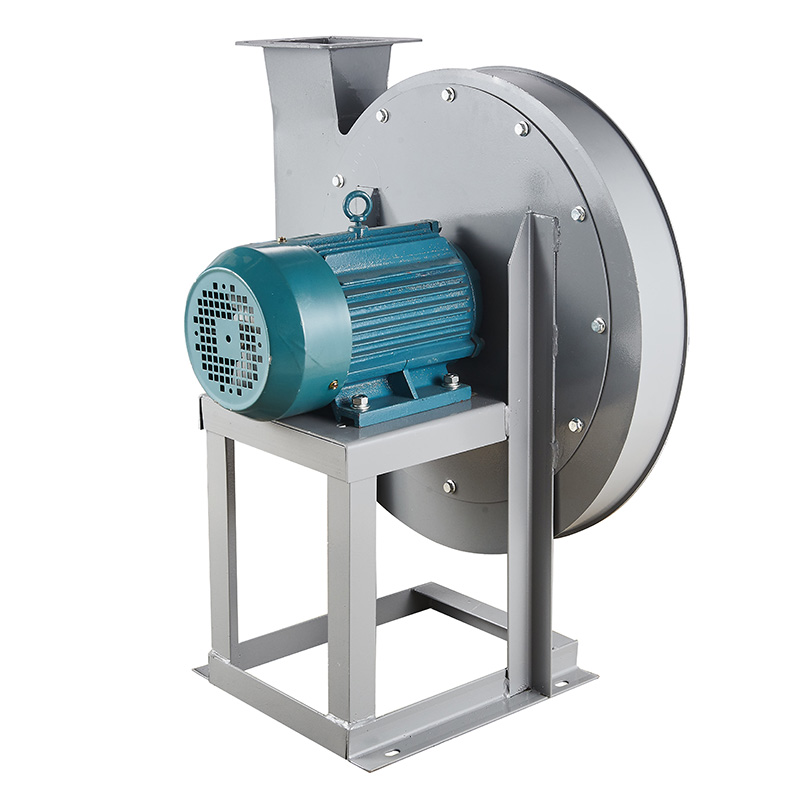

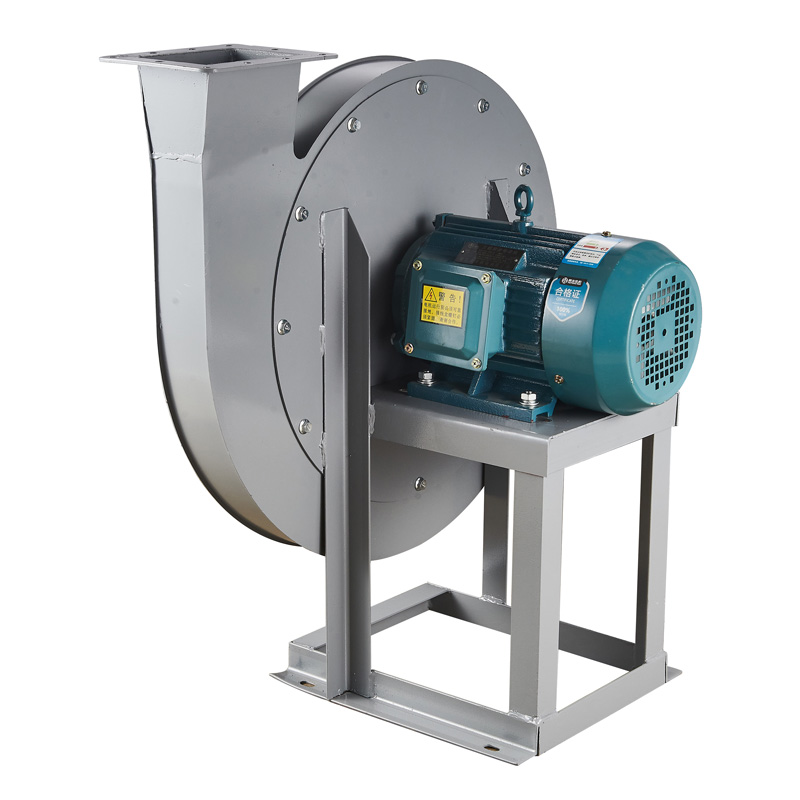

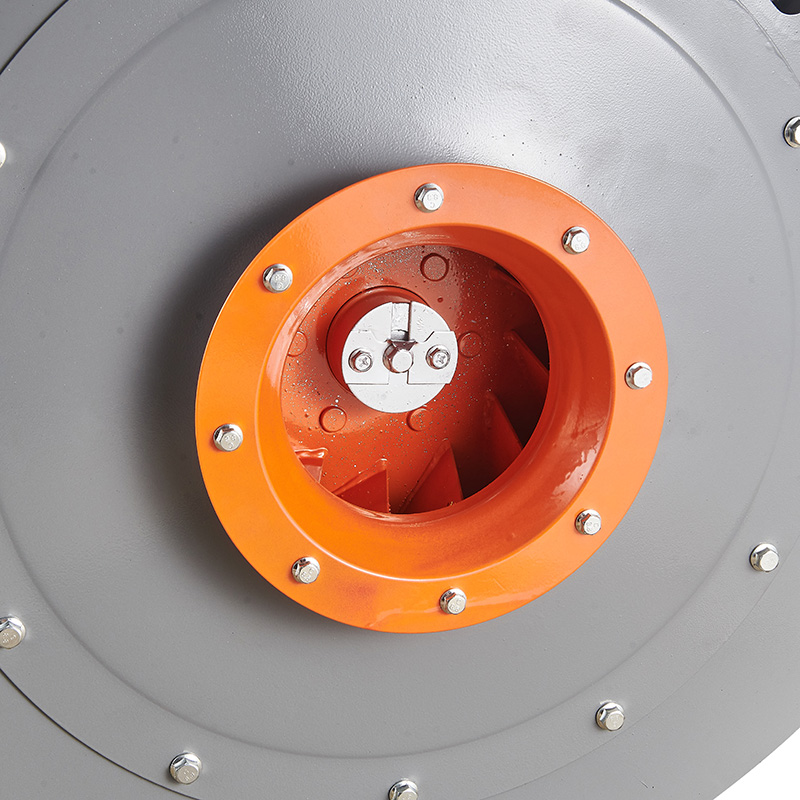

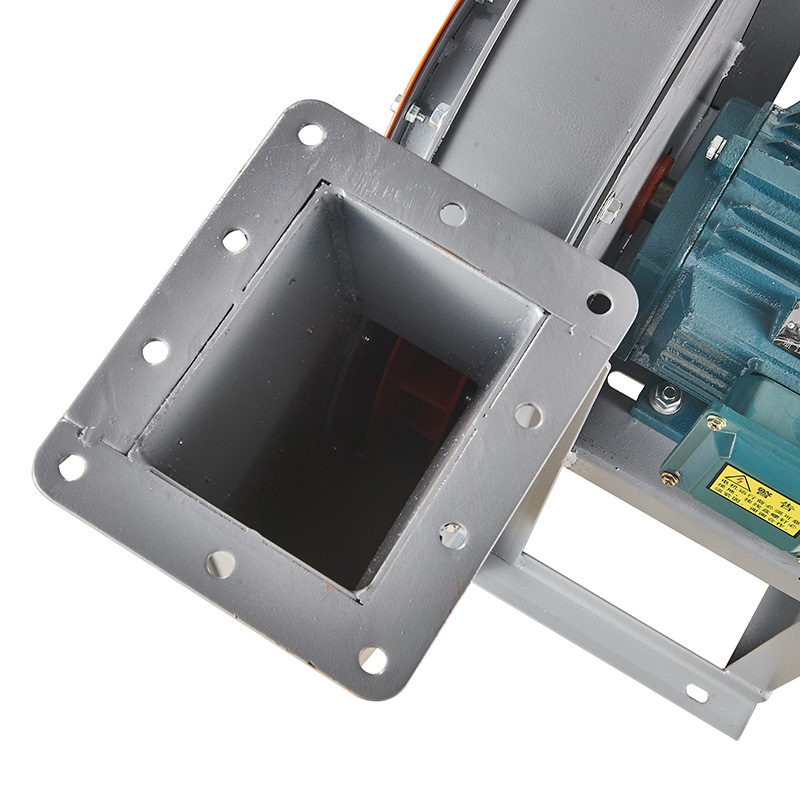

The 9-19 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
The 9-19 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
Type A: Direct drive with the motor, where the fan impeller and casing are directly fixed on the motor shaft and flange plate.
Type D: Equipped with a cantilever support device, driven by a coupling.
| 9-19A Core Technical Parameters | ||||||
| Model | Rotational Speed
（r/min） |
Voltage (V) |
Frequency (Hz) |
Power (kW) |
Air flow (m³/h) |
Total pressure (Pa) |
| 3.15A | 2900 | 380 | 50 | 0.75-2 | 402-545 | 2223-2262 |
| 2900 | 380 | 50 | 1.1-2 | 617-832 | 2231-2017 | |
| 3.55A | 2900 | 380 | 50 | 1.5-2 | 560-760 | 2545-2590 |
| 2900 | 380 | 50 | 2.2-2 | 860-1160 | 2554-2310 | |
| 4A | 2900 | 380 | 50 | 2.2-2 | 824-1264 | 3584-3597 |
| 2900 | 380 | 50 | 3-2 | 1410-1704 | 3507-3253 | |
| 4.5A | 2900 | 380 | 50 | 4-2 | 1174-2062 | 4603-4447 |
| 2900 | 380 | 50 | 5.5-2 | 2281-2504 | 4297-4112 | |
| 5A | 2900 | 380 | 50 | 7.5-2 | 1610-2844 | 5697-5517 |
| 2900 | 380 | 50 | 11-2 | 3166-3488 | 5323-5080 | |
| 5.6A | 2900 | 380 | 50 | 11-2 | 2622-3619 | 7182-7190 |
| 2900 | 380 | 50 | 18.5-2 | 3996-4901 | 6954-6400 | |
| 6.3A | 2900 | 380 | 50 | 18.5-2 | 3220-5153 | 9149-9055 |
| 2900 | 380 | 50 | 30-2 | 5690-6978 | 8857-8148 | |
| 9-19D Core Technical Parameters | ||||||
| Model | Rotational Speed
（r/min） |
Voltage (V) |
Frequency (Hz) |
Power (kW) |
Air flow (m³/h) |
Total pressure
(pa) |
| 7.1D | 2900 | 380 | 50 | 37-2 | 4610-7376 | 11717-11596 |
| 2900 | 380 | 50 | 55-2 | 8144-9988 | 11340-10426 | |
| 8D | 2900 | 380 | 50 | 75-2 | 6594-11649 | 15034-14546 |
| 2900 | 380 | 50 | 110-2 | 12968-14287 | 14021-13362 | |
| 1450 | 380 | 50 | 75-4 | 3297-4616 | 3620-3647 | |
| 1450 | 380 | 50 | 15-4 | 5275-7144 | 3584-3231 | |
| 9D | 1450 | 380 | 50 | 15-4 | 4695-7511 | 4597-4551 |
| 1450 | 380 | 50 | 22-4 | 8294-10171 | 4453-4101 | |
| 10D | 1450 | 380 | 50 | 30-4 | 6440-12450 | 5840-5495 |
| 1450 | 380 | 50 | 37-4 | 13952-15455 | 5244-4958 | |
| 11.2D | 1450 | 380 | 50 | 45-4 | 9047-15380 | 7364-7236 |
| 1450 | 380 | 50 | 75-4 | 17491-21713 | 6927-6246 | |
| 960 | 380 | 50 | 15-6 | 5990-11580 | 3182-2996 | |
| 960 | 380 | 50 | 22-6 | 12978-14375 | 2860-2705 | |
| 12.5D | 1450 | 380 | 50 | 110-4 | 12577-30186 | 9229-7822 |
| 960 | 380 | 50 | 37-6 | 8327-19985 | 3975-3377 | |
| 14D | 1450 | 380 | 50 | 132-4 | 17670-25916 | 11668-11771 |
| 1450 | 380 | 50 | 220-4 | 30040-42409 | 11464-9878 | |
| 960 | 380 | 50 | 37-6 | 11699-17158 | 5004-5047 | |
| 960 | 380 | 50 | 75-6 | 19888-28078 | 4917-4249 | |
| 16D | 1450 | 380 | 50 | 410-4 | 57150-63305 | 13808-13035 |
| 960 | 380 | 50 | 110-6 | 29687-41912 | 6456-5575 | |
