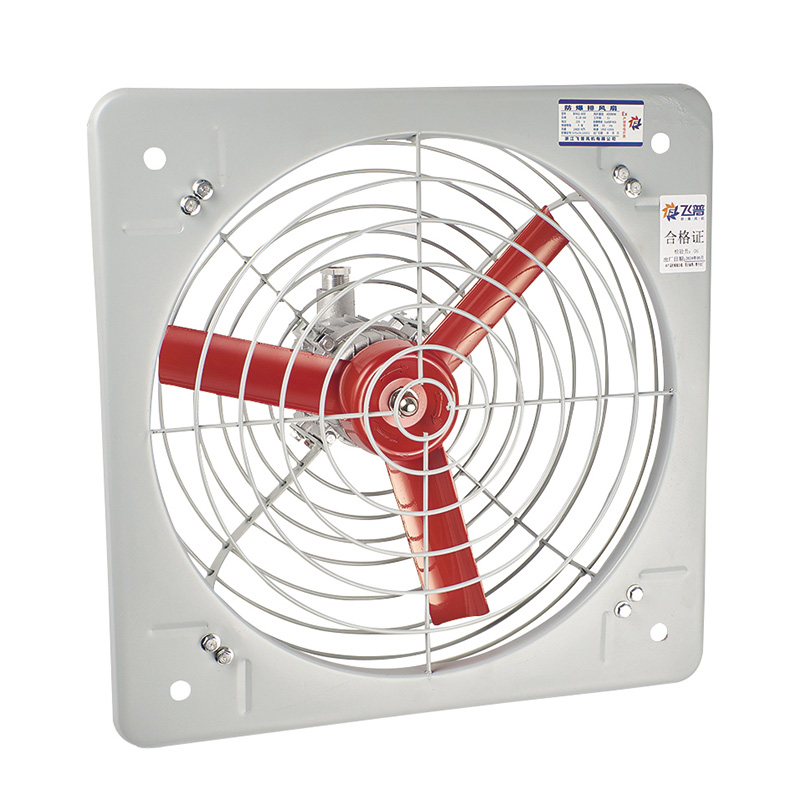

The BFAG explosion-proof exhaust fan is a commonly used explosion-proof ventilation device in the industrial field. It is mainly used in environments containing flammable and explosive gases or dust to ensure that the equipment does not ca use fire or explosion during operation.
The BFAG explosion-proof exhaust fan is a commonly used explosion-proof ventilation device in the industrial field. It is mainly used in environments containing flammable and explosive gases or dust to ensure that the equipment does not ca use fire or explosion during operation.
The exhaust fan is composed of explosion-proof motor, die-cast aluminum alloy blades, panel and other parts.
Applications:
Explosion-proof ventilation for petroleum, chemical, metallurgical, and coal-mining facilities.
| Core Technical Parameters | |||||
| Model | Fan blade diameter （мм） |
Air flow (m³/h) |
Voltage (V) |
Power (W) |
Rotation speed (rpm) |
| BFAG-300 | 300 | 2200 | Three-Phase380
Single-Phase220 |
120 | 1450 |
| BFAG-400 | 400 | 2400 | 180 | 1450 | |
| BFAG-500 | 500 | 4900 | 250 | 1450 | |
| BFAG-600 | 600 | 9500 | 370 | 1450 | |
| Model | B | Hole Datum Distance (a×a) | Frame Offset (b×b) |
| BFAG-300 | 295 | 340×340 | 385×385 |
| BFAG-400 | 295 | 390×390 | 480×480 |
| BFAG-500 | 300 | 470×470 | 575×575 |
| BFAG-600 | 300 | 525×525 | 675×675 |
