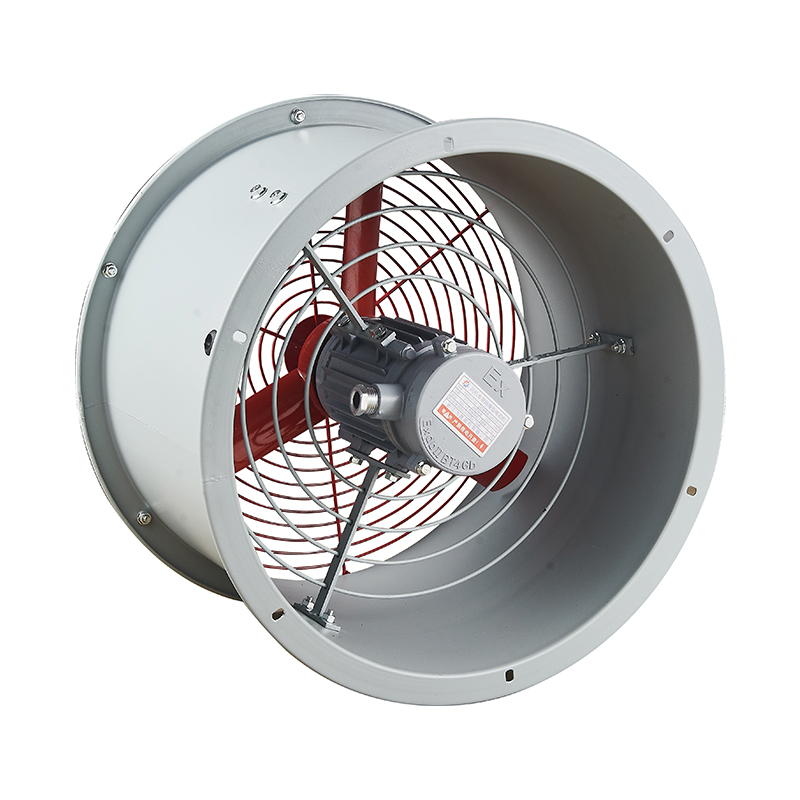

The CBF Explosion-Proof Axial Fan is specialized ventilation equipment for hazardous environments. The fan is composed of an explosion-proof motor, blades, casing, etc. To prevent sparks from friction, the blades are made of cast aluminum alloy.The fan features low noise, low energy consumption, and superior performance. In addition to ventilation and exhaust, it can be installed in spaced series along long exhaust ducts to increase duct pressure. Unlike general fans in structure and material, its applications are similar.
The CBF Explosion-Proof Axial Fan is specialized ventilation equipment for hazardous environments. The fan is composed of an explosion-proof motor, blades, casing, etc. To prevent sparks from friction, the blades are made of cast aluminum alloy.The fan features low noise, low energy consumption, and superior performance. In addition to ventilation and exhaust, it can be installed in spaced series along long exhaust ducts to increase duct pressure. Unlike general fans in structure and material, its applications are similar.
| Core Technical Parameters | |||||||
| Model | Diameter of blade
（mm） |
Power
（KW） |
Rotational Speed
（r/min） |
Airflow
(m³/h) |
Cable Outer Diameter Thread
(mm/G") |
Inlet Pipe Thread | Voltage
（V） |
| CBF-300 | 300 | 0.18 | 1450 | 2280 | φ10~φ14 | G3/4" | Three-Phase 380
Single-Phase 220 |
| CBF-400 | 400 | 0.37 | 1450 | 2880 | |||
| CBF-500 | 500 | 0.55 | 1450 | 5700 | |||
| CBF-600 | 600 | 0.75 | 1450 | 8700 | |||
| CBF-700 | 700 | 1.1 | 1450 | 10200 | Three-Phase 380 | ||
| CBF-750 | 750 | 1.5 | 1450 | 15300 | |||
| Model | B | φ1 | φ2 | φ3 | φ4 |
| CBF-300 | 295 | 305 | 327 | 353 | 360 |
| CBF-400 | 295 | 405 | 428 | 455 | 465 |
| CBF-500 | 315 | 505 | 530 | 555 | 565 |
| CBF-600 | 315 | 605 | 630 | 658 | 665 |
| CBF-700 | 390 | 710 | 738 | 766 | 766 |
| CBF-750 | 390 | 755 | 778 | 808 | 808 |
