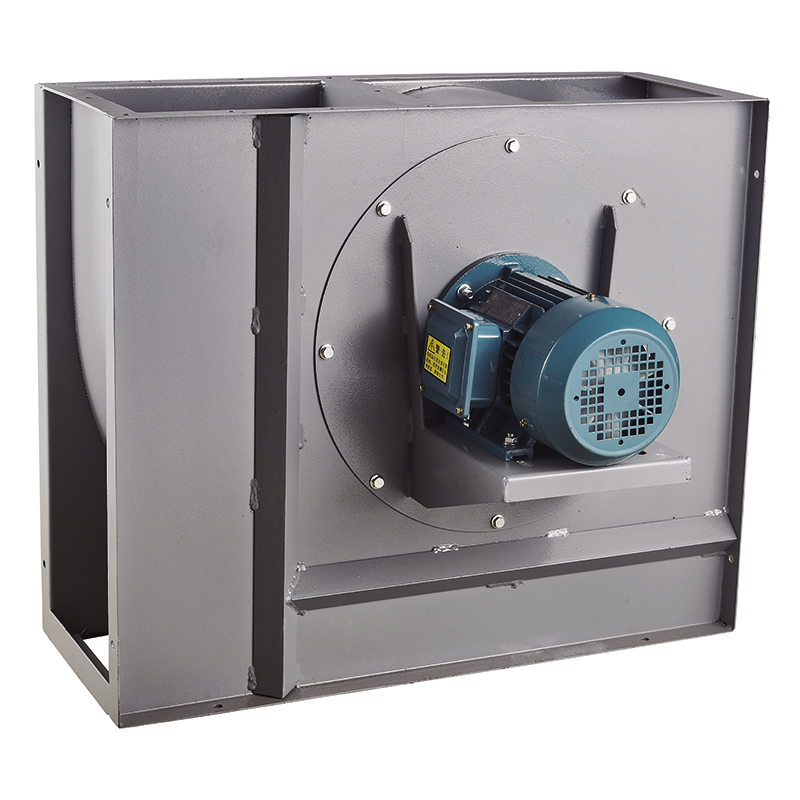

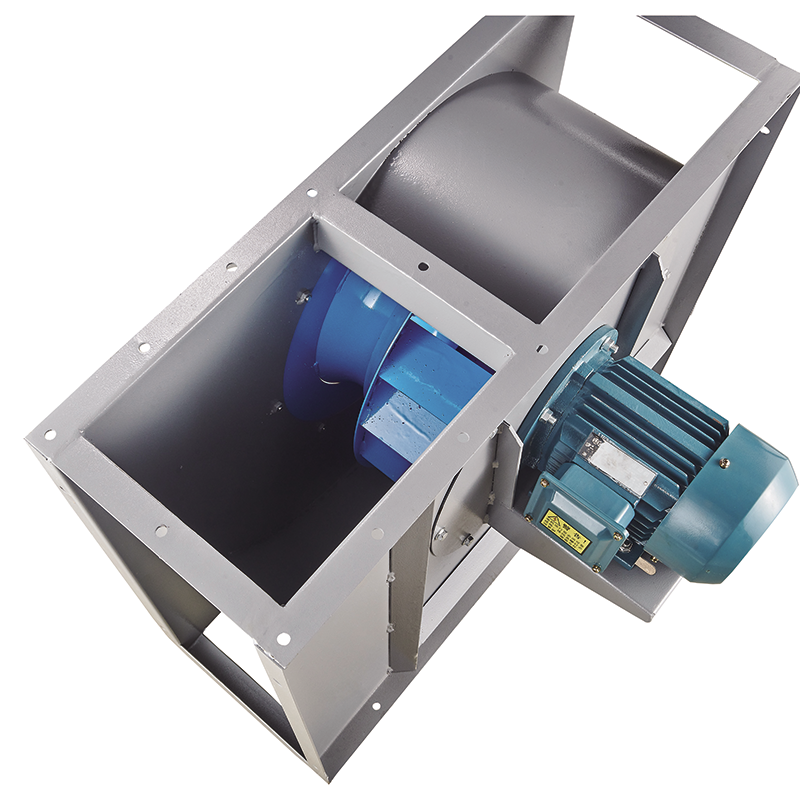

The CF4-82 series products all adopt Type A drive. This fan is equipped with a B35 motor, which is directly mounted on the side panel of the casing, eliminating the need for additional supports. Equipped with a 16-blade impeller for superior pressure performance, its compact housing is reinforced with angle iron on both sides. This design facilitates stable installation, presents a neat and aesthetic appearance, and allows flexible adjustment of the outlet orientation.
The fan uses flat blades to effectively reduce oil accumulation and ease cleaning/maintenance. Compared with model 4-72 fans of the same size, it produces lower noise. Specifically designed for kitchen exhaust, and also suits general ventilation.
| Core Technical Parameters | ||||||
| Model | Power
（KW） |
Voltage
（V） |
Rotational Speed
（r/min） |
Airflow
(m³/h) |
Total Pressure
(Pa) |
Noise Level
dB(A) |
| 3.55A | 0.55kW-4P | 220/380 | 1450 | 2050-3050 | 373-248 | ≤69 |
| 4A | 0.75kW-4P | 220/380 | 1450 | 3050-4450 | 505-345 | ≤71 |
| 4.5A | 1.1kW-4P | 220/380 | 1450 | 3900-5454 | 618-428 | ≤71 |
| 1.5kW-4P | 220/380 | 1450 | 4200-5750 | 635-460 | ≤74 | |
| 5A | 2.2kW-4P | 220/380 | 1450 | 5850-8200 | 800-500 | ≤77 |
| 1.1kW-6P | 380v | 960 | 3510-4920 | 480-300 | ≤73 | |
| 5.6A | 3kW-4P | 380v | 1450 | 8124-11475 | 965-625 | ≤78 |
| 4kW-4P | 380v | 1450 | ||||
| 1.5kW-6P | 380v | 960 | 4781-7219 | 389-252 | ≤74 | |
| 6A | 4kW-4P | 380v | 1450 | 8663-13080 | 1008-657 | ≤84 |
| 5.5kW-4P | 380v | 1450 | ||||
| 1.5kW-6P | 380v | 960 | 5700-8660 | 442-286 | ≤75 | |
| 6.3A | 5.5kW-4P | 380v | 1450 | 9990-15142 | 1110-725 | ≤85 |
| 7.5kW-4P | 380v | 1450 | ||||
| 2.2kW-6P | 380v | 960 | 6600-10026 | 488-316 | ≤76 | |
| 7.1A | 11kW-4P | 380v | 1450 | 12146-21227 | 1544-1091 | ≤86 |
| 3kW-6P | 380v | 960 | 8044-14057 | 667-478 | ≤79 | |
| Model | Outlet Flange Dimensions
(mm) |
Inlet Flange Dimensions
(mm) |
External Dimensions
(mm) |
|||||||||||||||
| A | a1 | B | b1 | C | c1 | Φ1 | Φ2 | Φ3 | W | L | L1 | H | h | D | E | |||
| 3.55A | 284 | 214 | 351 | 285 | 106 | / | 420 | 390 | 360 | 530 | 733 | 435 | 610 | 363 | 445 | 568 | ||
| 4A | 310 | 240 | 380 | 310 | 114 | / | 468 | 438 | 408 | 570 | 780 | 475 | 670 | 398 | 485 | 558 | ||
| 4.5A | 344 | 280 | 442 | 378 | 136 | / | 520 | 490 | 460 | 670 | 893 | 520 | 760 | 437 | 555 | 648 | ||
| 5A | 374 | 300 | 474 | 400 | 145 | 114 | 570 | 540 | 510 | 715 | 1055 | 585 | 825 | 488 | 620 | 700 | ||
| 5.6A | 400 | 325 | 527 | 452 | 123 | 122 | 625 | 595 | 565 | 750 | 1130 | 657 | 950 | 560 | 785 | 967 | ||
| 6A | 485 | 400 | 527 | 452 | 130 | 147 | 670 | 640 | 610 | 870 | 1200 | 720 | 1010 | 595 | 845 | 1035 | ||
| 6.3A | 485 | 400 | 585 | 500 | 135 | 147 | 695 | 665 | 635 | 890 | 1235 | 728 | 1015 | 605 | 731 | 930 | ||
| 7.1A | 535 | 450 | 665 | 580 | 155 | 163 | 795 | 755 | 715 | 1070 | 1420 | 810 | 1245 | 765 | 696 | 696 | ||
