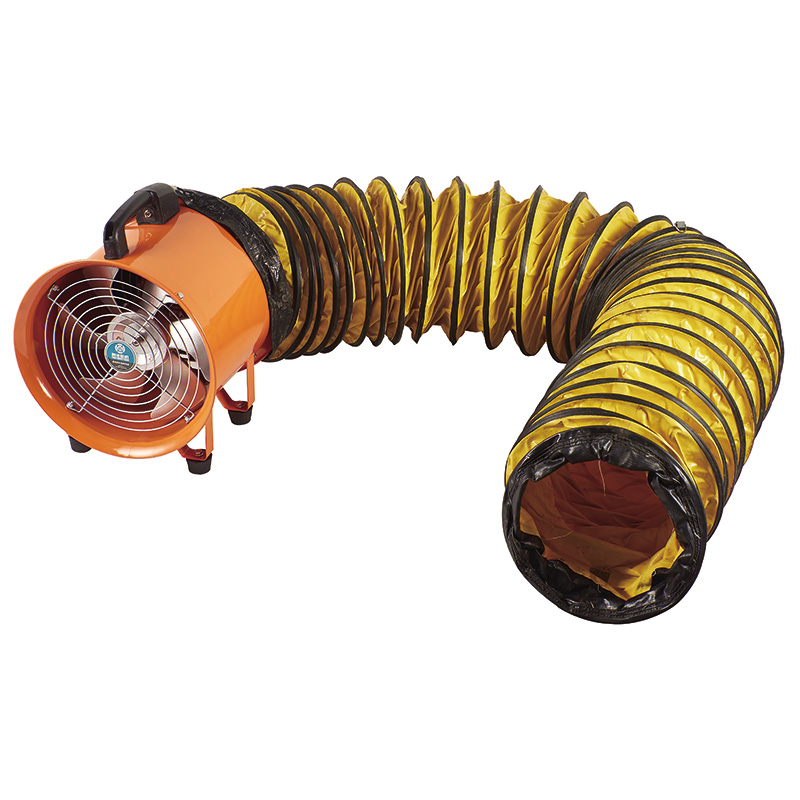

The fan features high wind pressure, high rotation speed, large air volume, mobile convenience, and strong suction. The casing is made of cold-rolled steel with plastic spraying, the impeller is cast aluminum alloy, and the motor is wound with pure copper wire. Manufactured with optimized aerodynamic design and advanced processing technology, it has a lighter structure.
Applications:
Designed for air transfer via ventilation hoses in long-distance/ deep work areas, confined spaces, and harsh atmospheric conditions—handling exhaust or fresh air supply.
| Core Technical Parameters | ||||||
| model | Power (kW) |
Voltage (V) |
Rotation speed (r/min) | Air flow (m³/h) |
Total pressure (Pa) |
External Dimensions
（mm） |
| 2 | 0.23 | 220 | 2800 | 1500 | 245 | 250*300*315 |
| 2.5 | 0.32 | 220 | 2800 | 2700 | 295 | 290*300*355 |
| 3 | 0.52 | 220 | 2800 | 3900 | 375 | 350*325*410 |
| 3.5 | 0.75 | 220 | 2800 | 4920 | 598 | 400*380*434 |
| 4 | 1.1 | 220 | 2800 | 5760 | 700 | 450*400*484 |
| 4.5 | 1.5 | 220 | 2800 | 9720 | 970 | 500*450*534 |
| model | Diameter of blade | D | D1 | D2 | W | W1 | W2 | H |
| CTF-2 | 200/8″ | 200 | 226 | 250 | 300 | 190 | 212 | 315 |
| CTF-2.5 | 250/10″ | 240 | 266 | 290 | 300 | 190 | 259 | 355 |
| CTF-3 | 300/12″ | 285 | 326 | 350 | 325 | 220 | 300 | 410 |
| CTF-3.5 | 350/14″ | 350 | 384 | 400 | 380 | 260 | 375 | 434 |
| CTF-4 | 400/16″ | 400 | 434 | 450 | 400 | 285 | 412 | 484 |
| CTF-4.5 | 450/18″ | 450 | 484 | 500 | 450 | 335 | 462 | 534 |
The GDT high-pressure low-noise cabinet-type smoke exhaust fan is a high-pressure cabinet-type smoke exhaust fan specially developed and designed by the company for kitchen smoke exhaust in recent years, based on the multi-blade low-noise air cabinet and the rear-inclined high-pressure air cabinet, in response to market demands. It combines the pressure of high-pressure fans with the low noise of multi-blade fans.
The DF Series Low-Noise Centrifugal Blower features excellent process design, robust materials, stable and reliable performance, and significant noise reduction effects. It is characterized by low noise, high efficiency, long service life, and easy installation. Widely applicable in industries and sectors such as telecommunications, power, electrical engineering, electronics, geology, coal mining, shipbuilding, and papermaking, it is particularly suitable for cooling, temperature control, and ventilation in environments including plastic machinery, printing machinery, blueprint machines, dryers, blow molding machines, and underground facilities.
The HFJZ-A craftsman kitchen fan is a square-housed ultra-quiet multi-blade centrifugal fan specially designed for kitchen exhaust. It was engineered to meet the demand for low-noise kitchen fans in modern kitchens and the exhaust requirements of communal ductwork. Compared to conventional multi-blade fans, it offers advantages such as higher pressure and lower noise levels. Moreover, it features a high static pressure design to tackle long ductwork and high resistance typical of modern kitchen setups.
The CBF Explosion-Proof Axial Fan is specialized ventilation equipment for hazardous environments. The fan is composed of an explosion-proof motor, blades, casing, etc. To prevent sparks from friction, the blades are made of cast aluminum alloy.The fan features low noise, low energy consumption, and superior performance. In addition to ventilation and exhaust, it can be installed in spaced series along long exhaust ducts to increase duct pressure. Unlike general fans in structure and material, its applications are similar.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The YL series electric motor is the latest designed fully enclosed single-phase motors, featuring a simple structure, reliable operation, convenient maintenance and affordable price.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The XCF is a new type developed from the CF-11 series. Engineered to incorporate the needs of modern urban kitchens, this comprehensive fan balances features like high resistance, high static pressure, ultra-low noise, and safety in its design.Compared to conventional multi-blade fans, it offers advantages such as higher pressure and lower noise levels. Moreover, it features a high static pressure design to tackle long ductwork and high resistance typical of modern kitchen setups.Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life.
Designed for hazardous, flammable, or explosive environments.Adopts a series of explosion-proof measures to ensure safe operation in dangerous environments. The pump features a special explosion-proof housing material to prevent sparks or arcs from igniting the surroundings. Also includes dust-proof functions to withstand harsh conditions.
The blades of the medium pressure fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
The Y5-48 series boiler centrifugal induced draft fan is specially designed to support industrial boilers (1-20 t/h) fired with various coal types and equipped with smoke and dust removal devices. It can be selected for any applications with similar inlet conditions and compatible performance requirements. The maximum ambient temperature for the fan operation shall not exceed 250°C, and the medium handled is flue gas. A dust removal device must be installed ahead of the induced draft fan to ensure the dust concentration in the flue gas entering the fan is less than 400 mg/m³.

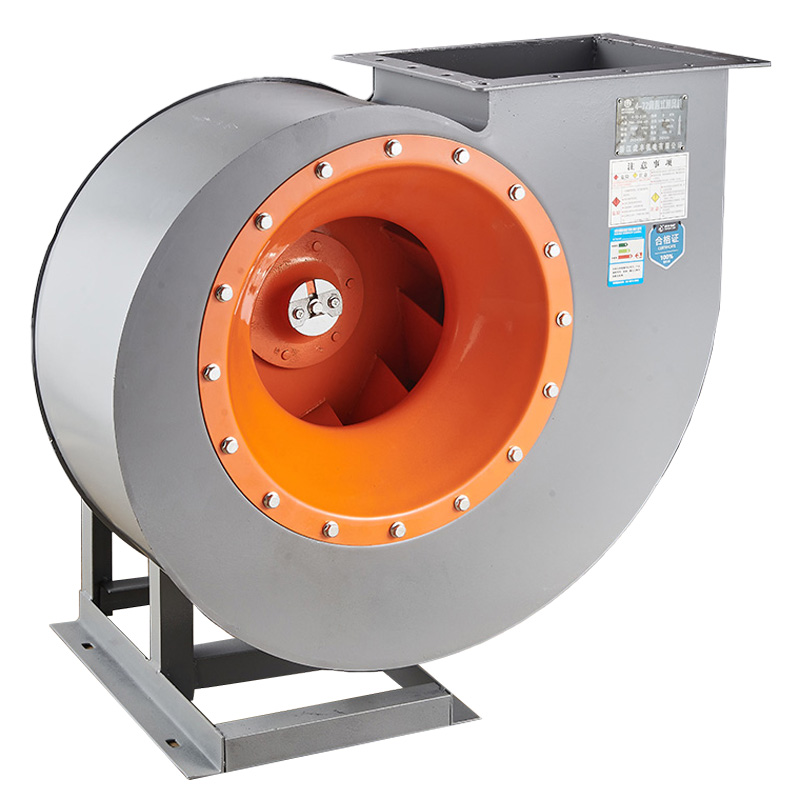

The 4-79 series centrifugal fans are applicable for indoor ventilation in general factories and large buildings, capable of both air intake and exhaust. The gases transported include air and other non-combustible, human-harmless gases that are non-corrosive to steel materials. The gases must not contain viscous substances, with the dust and hard particles content not exceeding 150mg/m³, and the gas temperature should not exceed 80°C.
