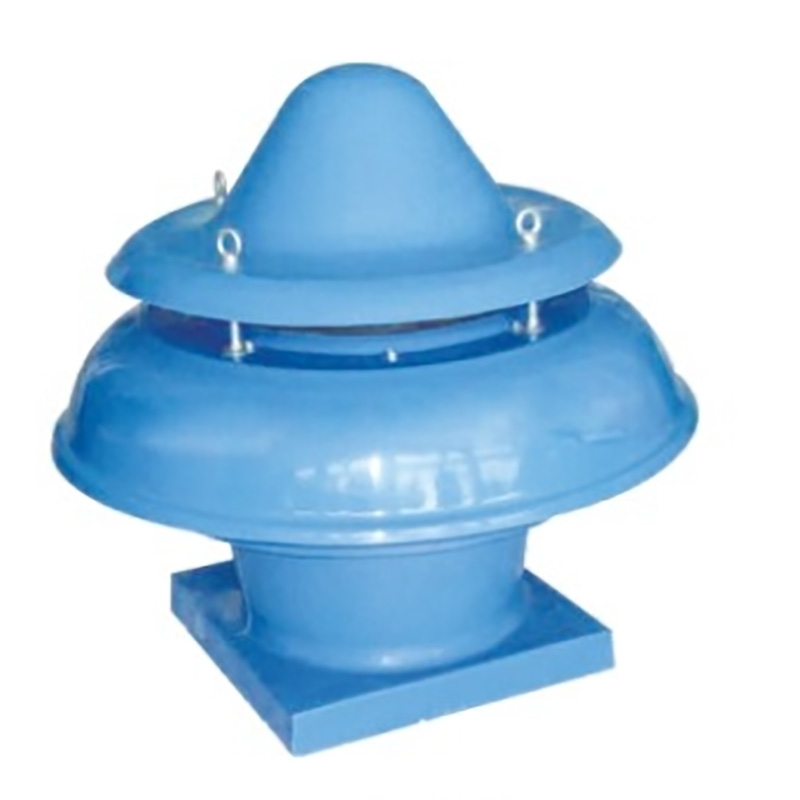

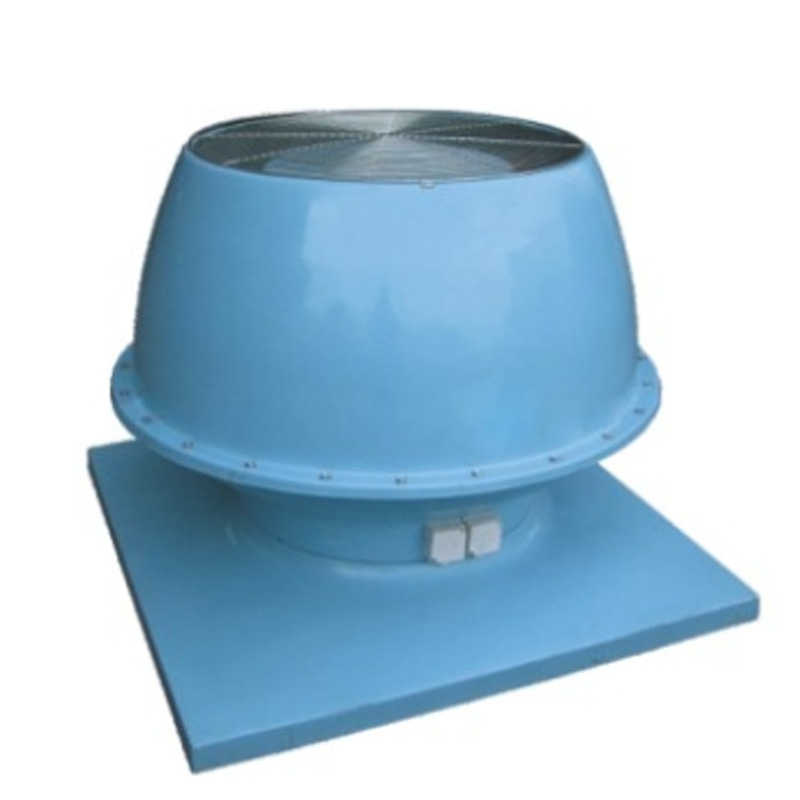

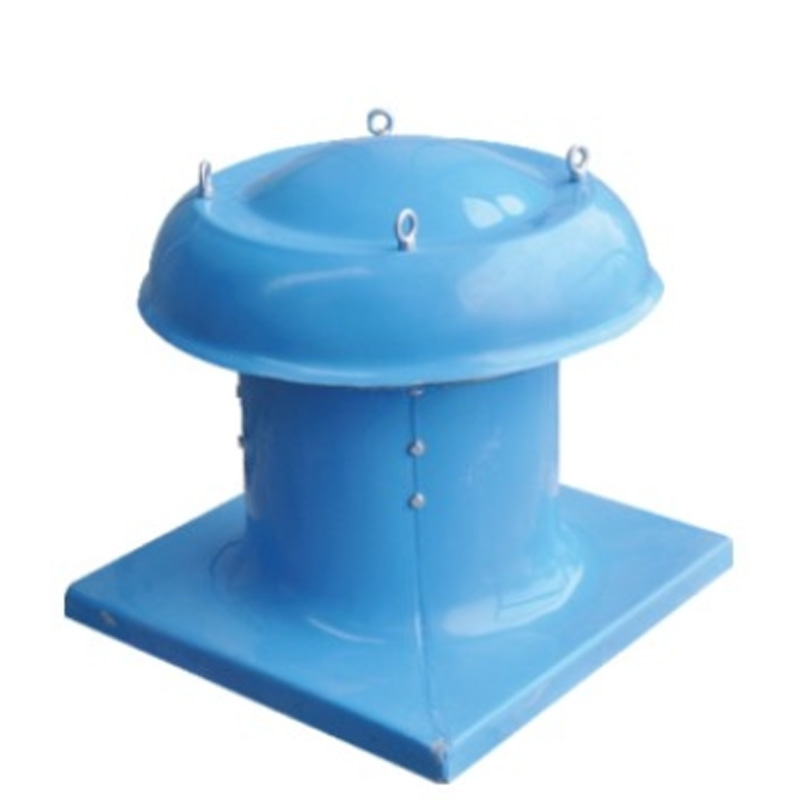

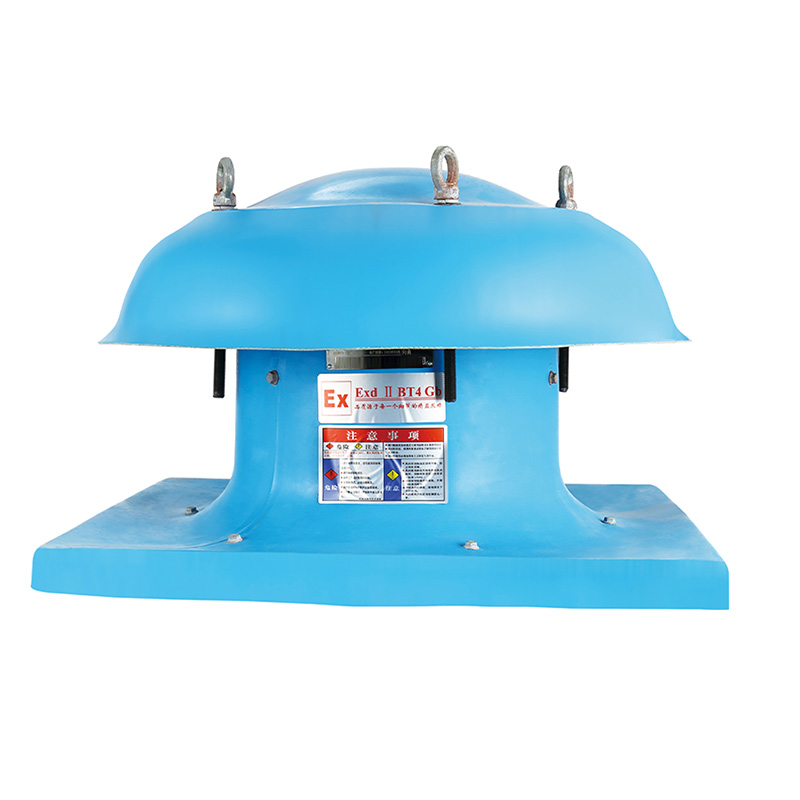

The DWT type roof fan features low noise, light weight, smooth operation, high efficiency, and excellent anti-corrosion performance. It is applicable to indoor ventilation and air exchange in mechanical factory buildings and warehouses of petroleum, chemical, textile, metallurgy and other industries.
The DWT type roof fan features low noise, light weight, smooth operation, high efficiency, and excellent anti-corrosion performance. It is applicable to indoor ventilation and air exchange in mechanical factory buildings and warehouses of petroleum, chemical, textile, metallurgy and other industries.
| Core Technical Parameters | |||||||||||
| Impeller diameter (mm) |
Air flow (m³/h) |
Wind Pressure
(Pa) |
Rotation speed (r/min) | Power (kW) |
Noise Level dB(A) | Impeller diameter (mm) |
Air flow (m³/h) |
Total pressure (Pa) |
Rotational Speed
（r/min） |
Power (kW) |
Noise Level
dB(A) |
| 300 | 3300 | 181 | 2850 | 0,37 | 66 | 800 | 27000 | 175 | 960 | 2,2 | 72 |
| 3000 | 206 | 25000 | 207 | ||||||||
| 2600 | 232 | 23000 | 228 | ||||||||
| 1650 | 61 | 1450 | 0,06 | 52 | 20000 | 129 | 720 | 1,5 | 66 | ||
| 1560 | 66 | 18000 | 154 | ||||||||
| 1450 | 72 | 16000 | 167 | ||||||||
| 400 | 7450 | 193 | 2850 | 0,75 | 69 | 15750 | 78 | 560 | 0,75 | 63 | |
| 6350 | 230 | 14500 | 96 | ||||||||
| 5300 | 250 | 12250 | 121 | ||||||||
| 5700 | 176 | 1450 | 0,55 | 67 | 34500 | 202 | 960 | 3 | 76 | ||
| 5400 | 184 | 29000 | 236 | ||||||||
| 4580 | 190 | 24000 | 256 | ||||||||
| 500 | 8000 | 135 | 1450 | 0,55 | 68 | 900 | 32000 | 126 | 720 | 2,2 | 73 |
| 7000 | 162 | 28000 | 156 | ||||||||
| 5600 | 191 | 24000 | 177 | ||||||||
| 7000 | 113 | 960 | 0,37 | 63 | 24000 | 102 | 560 | 1.1 | 67 | ||
| 6700 | 122 | 21500 | 118 | ||||||||
| 6400 | 131 | 18600 | 126 | ||||||||
| 6000 | 88 | 720 | 0,25 | 58 | 1000 | 50000 | 251 | 960 | 5,5 | 81 | |
| 5000 | 92 | 45000 | 286 | ||||||||
| 4100 | 96 | 39000 | 317 | ||||||||
| 600 | 15000 | 232 | 1450 | 1,5 | 73 | 46000 | 141 | 720 | 3 | 76 | |
| 14000 | 251 | 40000 | 167 | ||||||||
| 13000 | 267 | 35000 | 183 | ||||||||
| 11000 | 168 | 960 | 1.1 | 67 | 28000 | 111 | 560 | 1,5 | 69 | ||
| 10000 | 183 | 24000 | 125 | ||||||||
| 9100 | 193 | 20000 | 133 | ||||||||
| 8500 | 111 | 720 | 0,55 | 62 | 1120 | 56900 | 253 | 960 | 5,5 | 82 | |
| 8000 | 127 | 49500 | 296 | ||||||||
| 7600 | 136 | 40400 | 322 | ||||||||
| 700 | 17500 | 165 | 960 | 1,5 | 69 | 52500 | 138 | 720 | 3 | 77 | |
| 15000 | 201 | 45000 | 169 | ||||||||
| 12500 | 212 | 40000 | 183 | ||||||||
| 12000 | 141 | 720 | 0,75 | 63 | 32000 | 111 | 560 | 1,5 | 71 | ||
| 11000 | 163 | 28000 | 128 | ||||||||
| 9200 | 177 | 25000 | 142 | ||||||||
| 9300 | 83 | 560 | 0,55 | 59 | |||||||
| 8500 | 94 | ||||||||||
| 7200 | 102 | ||||||||||
| Model | φA | φD | B | G | C | E | H | M (d) × L1 |
| 3 | φ 580 | φ 300 | 370 | 30 | 510 | 300 | 545 | M8x250 |
| 4 | φ 650 | φ 400 | 470 | 30 | 630 | 340 | 585 | M12x250 |
| 5 | φ 900 | φ 500 | 570 | 30 | 750 | 390 | 715 | M12x300 |
| 6 | φ 1000 | φ 600 | 670 | 30 | 870 | 440 | 765 | M12x300 |
| 7 | φ 1200 | φ 700 | 800 | 40 | 1000 | 480 | 950 | M12x300 |
| 8 | φ 1340 | φ 800 | 900 | 40 | 1100 | 480 | 950 | M12x350 |
| 9 | φ 1650 | φ 900 | 1000 | 40 | 1250 | 480 | 950 | M12x350 |
| 10 | φ 1800 | φ 1000 | 1100 | 40 | 1400 | 480 | 1105 | M12x350 |
| 11.2 | φ 1800 | φ 1120 | 1240 | 40 | 1540 | 480 | 1105 | M16x350 |
