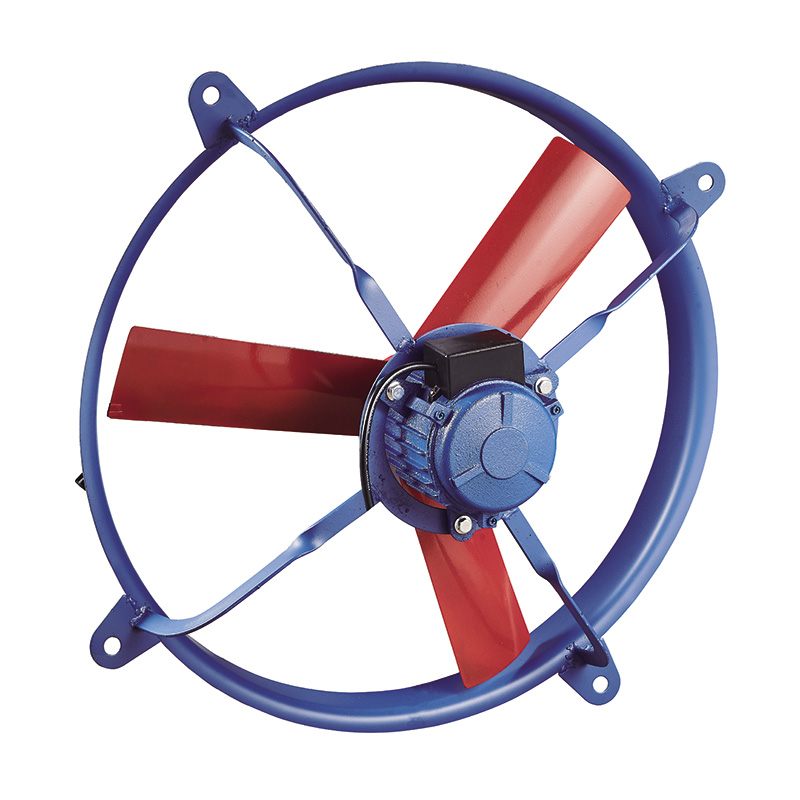

The FA series exhaust fan has the characteristics of sturdy structure, beautiful appearance, low noise, and low energy consumption, and is suitable for ventilation, air exchange, and cooling in general environments such as factories, warehouses, offices, canteens, and kitchens.
The FA series: single-phase capacitor operated motor axial flow exhaust fan
The FA-B: wall mounted fan.
| Core Technical Parameters | ||||||||
| Model | Impeller diameter (mm) |
Air Delivery Volume
(m³/h) |
Power (W) |
Voltage (V) |
Electric current（A） | Frequency (Hz) |
Rotation speed (r/min) |
Frame Material |
| FA-30 | 300 | 28 | 80 | 220 | 0.3 | 50 | 1350 | Steel sheet |
| FA-35 | 350 | 32 | 90 | 220 | 0.36 | 50 | 1350 | |
| FA-40/FTA-40 | 400 | 48 | 150/130 | 220/380 | 0.75/0.3 | 50 | 1350 | Steel sheet(Cast Iron Base) |
| FA-45/FTA-45 | 450 | 60 | 250/200 | 220/380 | 0.92/0.4 | 50 | 1350 | |
| FA-50/FTA-50 | 500 | 98 | 350/290 | 220/380 | 1.58/0.63 | 50 | 1350 | |
| FA-60/FTA-60 | 600 | 170 | 600 | 220/380 | 2.7/1.1 | 50 | 1350 | |
| FTA-75 | 750 | 265 | 850 | 380 | 1.3 | 50 | 900 | |
The vortex air pump has the characteristics of compact structure, small volume, light weight, low noise, and dual-use of blowing and suction. The shell is made of aluminum alloy material, further optimizing heat dissipation, and the motor is wound with pure copper wire . Widely used in supporting equipment, water treatment aeration, aquaculture, gas transmission, air dust removal, dry bottle, feeding, collection, etc.
The DWT type roof fan features low noise, light weight, smooth operation, high efficiency, and excellent anti-corrosion performance. It is applicable to indoor ventilation and air exchange in mechanical factory buildings and warehouses of petroleum, chemical, textile, metallurgy and other industries.
The 4-72 Model Centrifugal Fan conveys air and other non-flammable, non-toxic gases that do not corrode steel. No viscous substances are permitted within the system. The dust and hard particulate content must not exceed 150 mg/m³, and the gas temperature must not exceed 80°C. This fan employs backward-curved blades with superior aerodynamic properties, delivering smooth operation, high airflow, minimal vibration, high efficiency, and extended service life. It is widely used for ventilation in industrial and mining enterprises, large-scale buildings, hotels, and restaurants.
The T35-11 series axial flow fans are suitable for transporting non-corrosive gases free of significant dust, with the ambient temperature not exceeding 60°C.It is widely used for ventilation and cooling in ordinary factories, warehouses, offices, and residential buildings.
The fan features Low noise , high air volume , high pressure , low vibration , compact structure , small volume, light weight , easy installation and use .Versatile mounting bracket supports multiple installation orientations.
The SFG Series High-Temperature Axial Fan is upgraded from the SF model with a redesigned impeller and adopts an aluminum alloy casing to enhance the motor’s sealing performance,The motor incorporates high-temperature enameled wire, high-temperature bearings, and high-temperature lead wires. Consequently, this product can operate in environments with elevated temperatures (ambient temperature ≤100°C) or high humidity. The fan features a novel structure, aesthetically pleasing appearance, and superior performance, characterized by low noise, high airflow, elevated static pressure, and smooth operation.
The HTFC series multi wing low-noise cabinet centrifugal fan is a newly designed and developed product by our company to meet the needs of the increasingly developing commercial kitchen oil fume exhaust, industrial purification, and fresh air conditioning industries. Based on the digestion and absorption of advanced technologies at home and abroad, the principle of combining aerodynamics and aeroacoustics is applied. It has the characteristics of large air volume, high static pressure, low noise, and small vibration.
The medium pressure fan adopts stamped and aluminum alloy die-casting shell and fan blades, which are lightweight, novel in style, beautiful in appearance, and easy to install.The blades of the fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
The DF Series Low-Noise Centrifugal Blower features excellent process design, robust materials, stable and reliable performance, and significant noise reduction effects. It is characterized by low noise, high efficiency, long service life, and easy installation. Widely applicable in industries and sectors such as telecommunications, power, electrical engineering, electronics, geology, coal mining, shipbuilding, and papermaking, it is particularly suitable for cooling, temperature control, and ventilation in environments including plastic machinery, printing machinery, blueprint machines, dryers, blow molding machines, and underground facilities.
The CBF Explosion-Proof Axial Fan is specialized ventilation equipment for hazardous environments. The fan is composed of an explosion-proof motor, blades, casing, etc. To prevent sparks from friction, the blades are made of cast aluminum alloy.The fan features low noise, low energy consumption, and superior performance. In addition to ventilation and exhaust, it can be installed in spaced series along long exhaust ducts to increase duct pressure. Unlike general fans in structure and material, its applications are similar.
The fan features high wind pressure, high rotation speed, large air volume, mobile convenience, and strong suction. The casing is made of cold-rolled steel with plastic spraying, the impeller is cast aluminum alloy, and the motor is wound with pure copper wire. Manufactured with optimized aerodynamic design and advanced processing technology, it has a lighter structure.
Ideal for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railways, airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 8 MPa.
Ideal for moisture-proof drying; localized heating; construction sites; outdoor heating; equipment insulation; railway stations and airports; yachts and ships; paint drying; mobile heating; quick warming; venues and clubs; clean heat delivery; rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The 9-26 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
The GDT high-pressure low-noise cabinet-type smoke exhaust fan is a high-pressure cabinet-type smoke exhaust fan specially developed and designed by the company for kitchen smoke exhaust in recent years, based on the multi-blade low-noise air cabinet and the rear-inclined high-pressure air cabinet, in response to market demands. It combines the pressure of high-pressure fans with the low noise of multi-blade fans.
