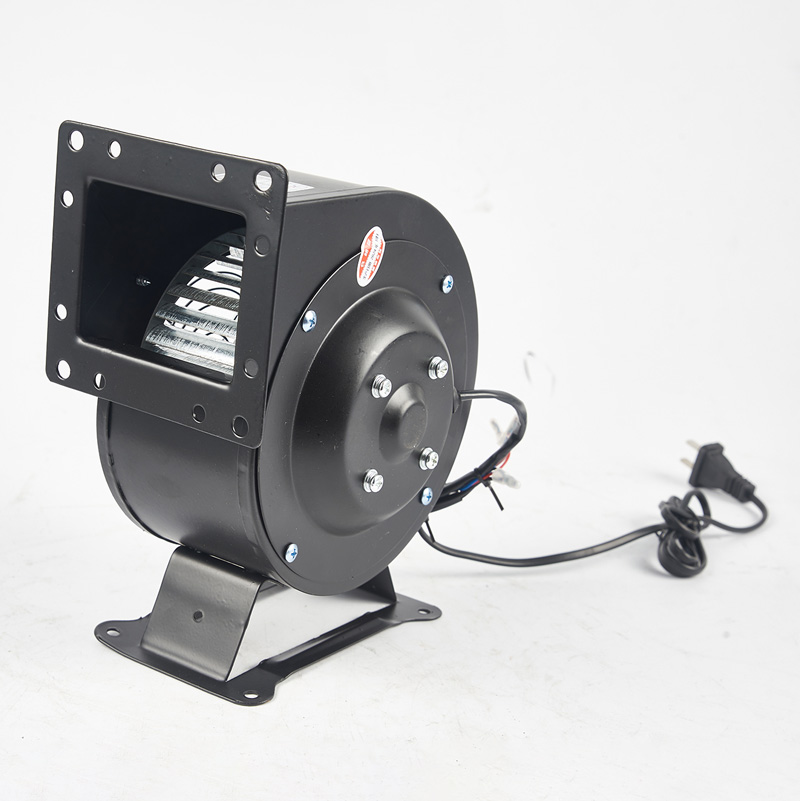

The fan features Low noise , high air volume , high pressure , low vibration , compact structure , small volume, light weight , easy installation and use .Versatile mounting bracket supports multiple installation orientations.
Applications:
Cabinet cooling, duct dust removal, exhaust systems, heat dissipation for inflatable models, and air-purification units.
| Core Technical Parameters | ||||||
| Model | Power (W) |
Voltage (V) |
Rotation speed (r/min) |
Air flow (m³/h) |
Total pressure (Pa) |
Noise Level
dB(A) |
| 130FLJ1 | 85W | 220/380 | 2200 | 216 | 280 | 70 |
| 130FLJ5 | 120W | 220/380 | 2250 | 300 | 350 | 72 |
| 150FLJ3 | 180W | 220/380 | 2600 | 480 | 400 | 72 |
| 150FLJ7 | 240W | 220/380 | 2300 | 540 | 420 | 73 |
| 320W | 220/380 | 2400 | 660 | 450 | 75 | |
| 170FLJ3 | 400W | 220/380 | 2500 | 780 | 550 | 76 |
| 170FLJ7 | 500W | 220/380 | 2600 | 900 | 630 | 76 |
| External Dimensions | ||||||||||||
| Model | Power (W) |
Outlet Flange Dimensions
(mm) |
External Dimensions
(mm) |
|||||||||
| A1 | A2 | A3 | B1 | B2 | B3 | a*n | M | N | C1 | C2 | ||
| 130FLJ1 | 85W | 60 | 92 | 110 | 65 | 70 | 90 | φ8*4 | 175 | 230 | 150 | 100 |
| 130FLJ5 | 120W | 83 | 102 | 115 | 65 | 100 | 117 | φ8*4 | 175 | 240 | 150 | 100 |
| 150FLJ3 | 180W | 53 | 70 | 80 | 85 | 102 | 113 | φ8 *4 | 210 | 220 | 150 | 100 |
| 150FLJ7 | 240W | 85 | 100 | 113 | 85 | 100 | 112 | φ8*4 | 205 | 255 | 150 | 100 |
| 150FLJ7 | 320W | 85 | 100 | 113 | 85 | 100 | 112 | φ8*4 | 205 | 215 | 150 | 100 |
| 170FLJ3 | 400W | 53 | 66 | 78 | 85 | 102 | 113 | φ8*4 | 250 | 195 | 181 | 100 |
| 170FLJ7 | 500W | 85 | 100 | 113 | 85 | 100 | 113 | φ8*4 | 250 | 275 | 181 | 100 |
