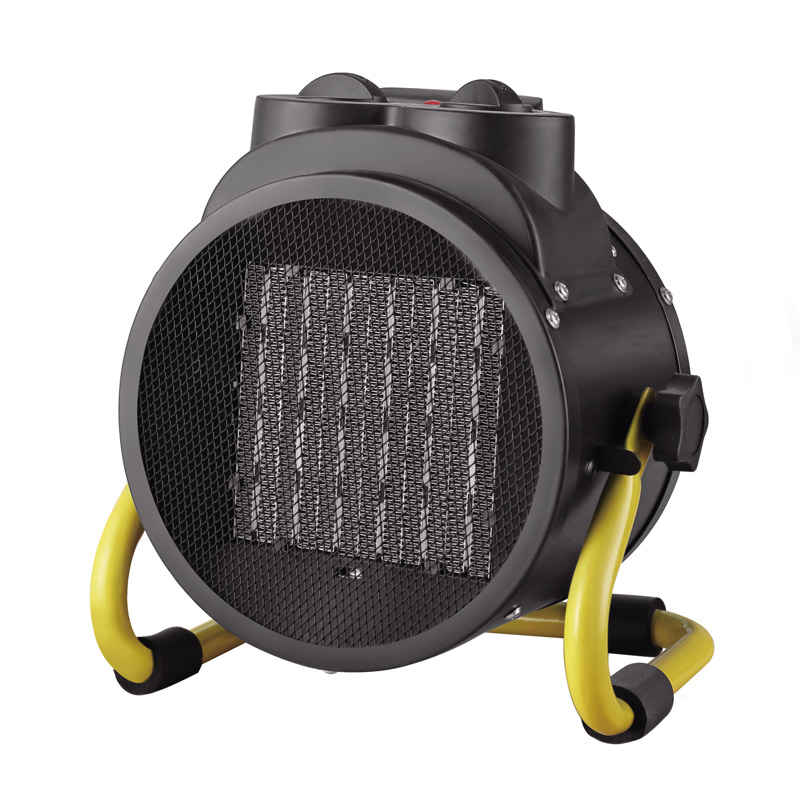

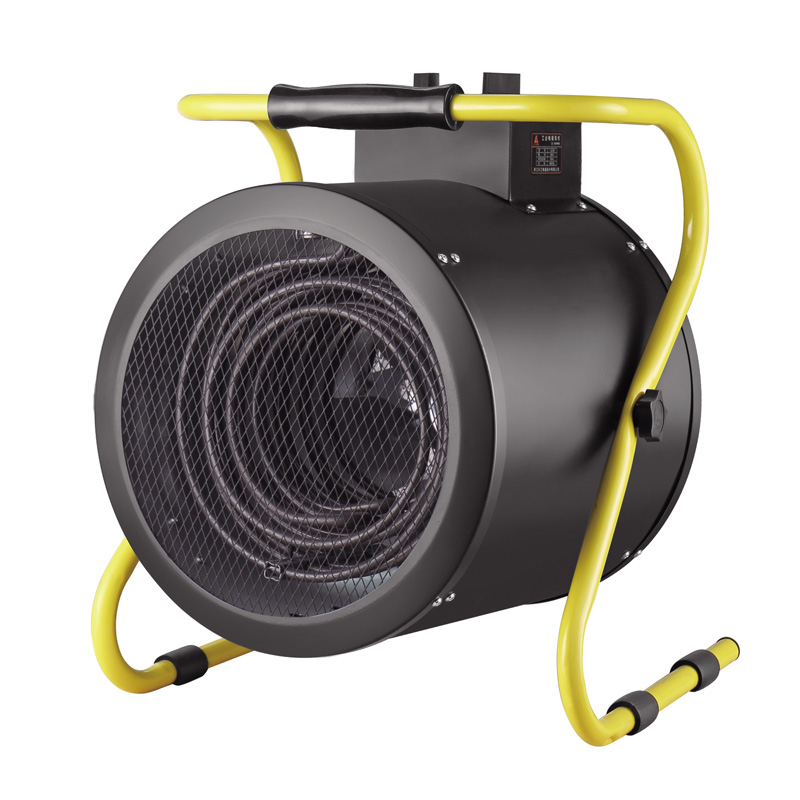

Ideal for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railways, airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
Features:
lRapid heating; overheat protection; intelligent temperature control; energy-saving and safe
lStainless-steel heating element ensures safety and reliability
lAdjustable thermostat for precise temperature control
lBuilt-in overheat protection for safe operation
Fully metal housing with insulation treatment for enhanced safety; free-standing and mobile with adjustable up/down angles.
lNo oxygen consumption; smoke-free, odorless, moisture-free; low noise, high thermal efficiency, fast heat delivery
| Core Technical Parameters | |||||||||
| Model | Voltage (V) |
Frequency (Hz) |
Power (W) |
Product size
(mm) |
Package size (mm) |
net weight
（kg） |
gross weight
（kg） |
Air flow (m³/h) |
Applicable area
（m²） |
| LG-PTC-D2 | 220 | 50 | 25/1000/2000 | 190 * 255 * 268 | 190 * 270 * 280 | 2.07 | 2.47 | 158 | 20 |
| LG-PTC D3 | 220 | 50 | 25/1500/3000 | 210 * 285 * 300 | 210 * 290 * 300 | 2.69 | 3.2 | 218 | 30 |
| LG-D3 | 220 | 50 | 3000 | 350 * 310 * 400 | 355 * 385 * 425 | 6.4 | 7.1 | 360 | 30 |
| LG-D5 | 220/380 | 50 | 5000 | 350 * 310 * 400 | 355 * 385 * 425 | 6.9 | 7.8 | 388 | 50 |
| LG-D9 | 380 | 50 | 9000 | 415 * 330 * 460 | 420 * 365 * 480 | 11.9 | 13.2 | 740 | 80 |
