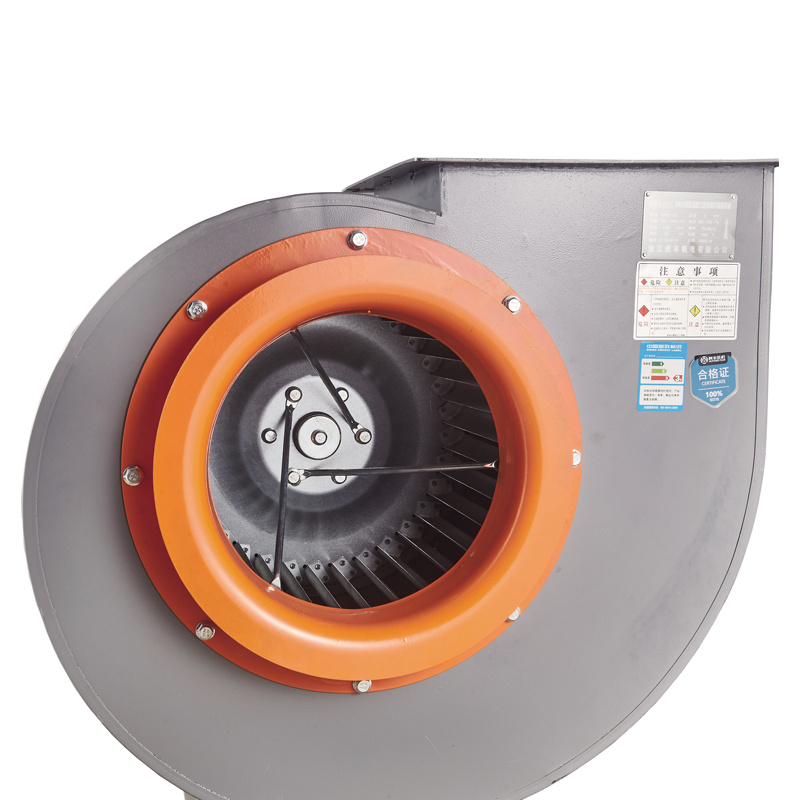

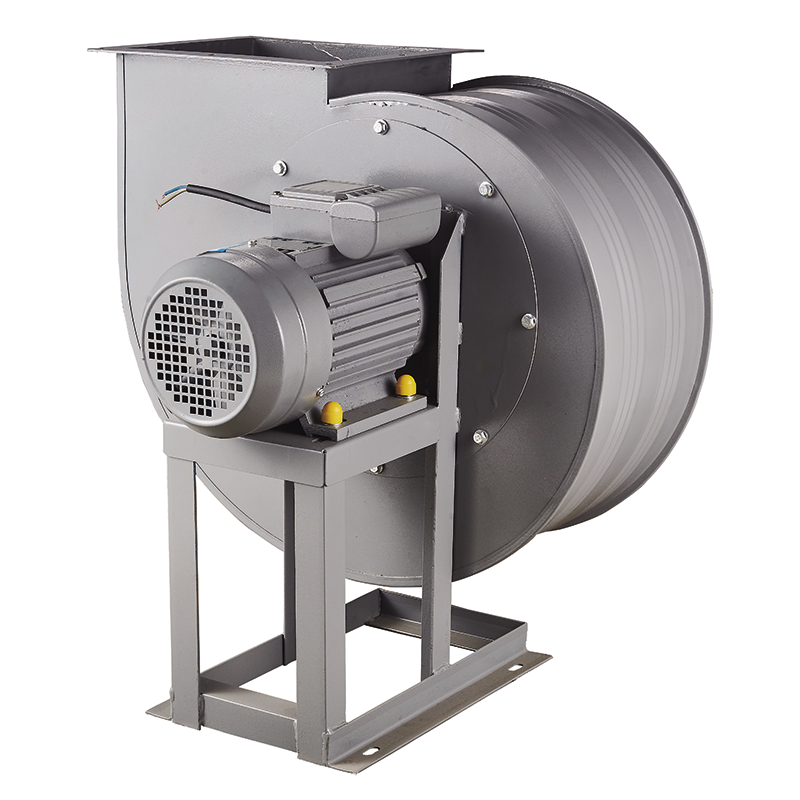

The HX63 is a new type developed from the 11-62 series. Engineered to meet the demands of green industry and environmental noise reduction. Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life.
Suitable for kitchen exhaust, fume extraction, or ventilation in public venues like canteens, hotels, and restaurants. Also ideal for use with production equipment such as grain machinery, chemical machinery, and plastic machinery. Highly versatile and adaptable for wide-ranging applications.
The HX63 is a new type developed from the 11-62 series. Engineered to meet the demands of green industry and environmental noise reduction. Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life.
Suitable for kitchen exhaust, fume extraction, or ventilation in public venues like canteens, hotels, and restaurants. Also ideal for use with production equipment such as grain machinery, chemical machinery, and plastic machinery. Highly versatile and adaptable for wide-ranging applications.
| Core Technical Parameters | ||||||
| Model | Power (kW) |
Voltage (V) |
Rotational Speed
(r/min) |
Air flow (m³/h) |
Total pressure (Pa) |
Noise Level
dB(A) |
| 12A | 1.5KW-4P | 220/380 | 1450 | 4710-7060 | 615-410 | 66 |
| 13A | 2.2KW-4P | 220/380 | 1450 | 5810-8710 | 790-525 | 68 |
| 14A | 2.2KW-4P | 220/380 | 1450 | 6702-10050 | 970-645 | 70 |
| 14A | 3KW-4P | 220/380 | 1450 | 7040-10560 | 1020-680 | 70 |
| 16A | 3KW-4P | 380 | 1450 | 7240-10860 | 1290-860 | 72 |
| 16A | 4KW-4P | 220/380 | 1450 | 7600-11400 | 1360-905 | 72 |
| 16A | 2.2KW-6P | 380 | 960 | 5430-8150 | 535-355 | 68 |
| 16A | 3KW-6P | 380 | 960 | 6725-10090 | 555-370 | 68 |
| 18A | 5.5KW-4P | 380 | 1450 | 9200-13800 | 1680-1200 | 73 |
| 18A | 4KW-6P | 380 | 960 | 7930-11900 | 750-500 | 73 |
| 20A | 4KW-6P | 380 | 960 | 9160-13740 | 885-590 | 74 |
| 20A | 5.5KW-6P | 380 | 960 | 10740-16110 | 1263-842 | 74 |
| 24A | 7.5KW-6P | 380 | 960 | 12970-19450 | 1330-885 | 76 |
| Model | Outlet Flange Dimensions
(mm) |
Inlet Flange Dimensions
(mm) |
External Dimensions
(mm) |
||||||||
| A1 | A | B1 | B | D | d | L | L1 | H | h | W | |
| 12A | 305 | 245 | 325 | 265 | 296 | 240 | 600 | 193 | 620 | 390 | 660 |
| 13A | 325 | 265 | 330 | 270 | 320 | 260 | 650 | 210 | 660 | 420 | 680 |
| 14A | 325 | 265 | 360 | 300 | 360 | 300 | 700 | 225 | 720 | 450 | 680 |
| 16A/4P | 335 | 275 | 390 | 330 | 400 | 340 | 750 | 245 | 825 | 535 | 730 |
| 16A/6P | 380 | 320 | 390 | 330 | 400 | 340 | 750 | 245 | 805 | 515 | 740 |
| 18A | 396 | 320 | 436 | 360 | 460 | 400 | 850 | 270 | 910 | 585 | 820 |
| 20A | 396 | 320 | 466 | 390 | 520 | 460 | 895 | 300 | 990 | 635 | 820 |
| 24A | 396 | 320 | 551 | 475 | 562 | 500 | 1120 | 368 | 1175 | 760 | 930 |
