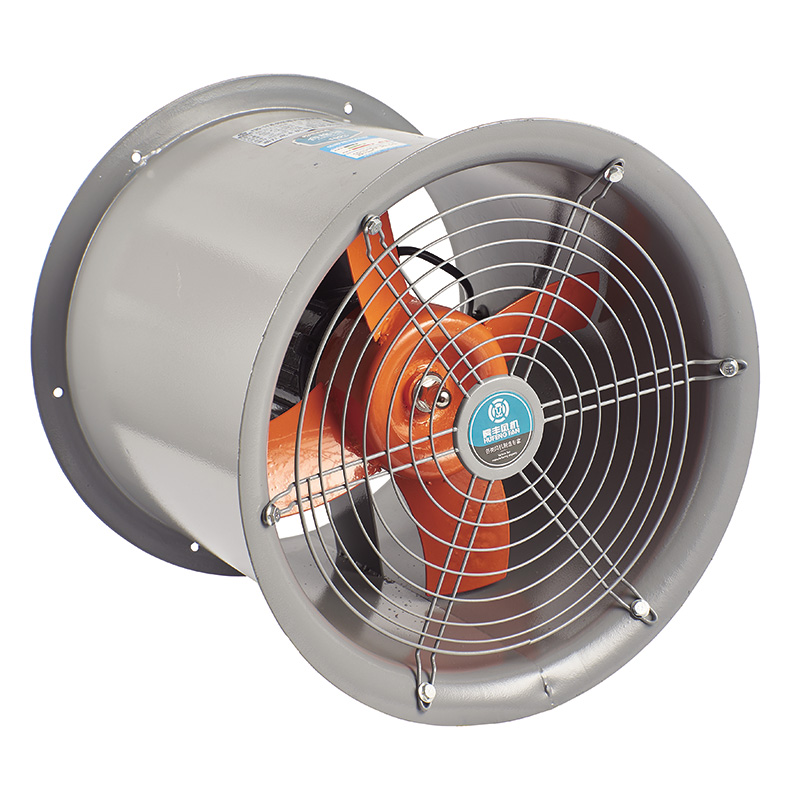

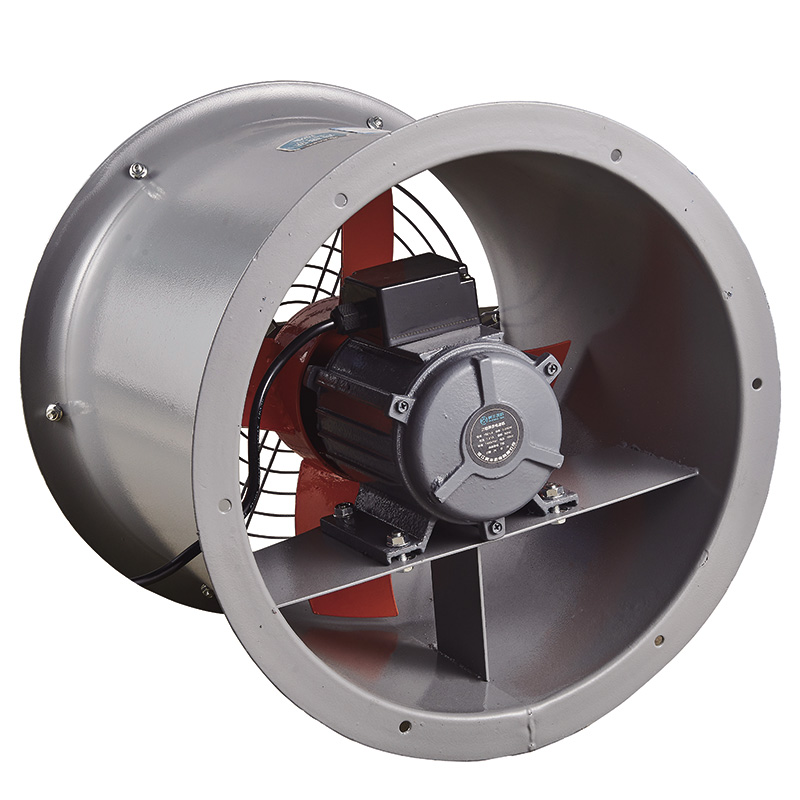

The T40 axial flow fan is suitable for ventilation and heat dissipation in general factories, warehouses, offices, and residences. Removing the casing allows it to be used as a free-standing fan, or it can be installed in spaced series along long exhaust ducts to increase air pressure in the pipeline.

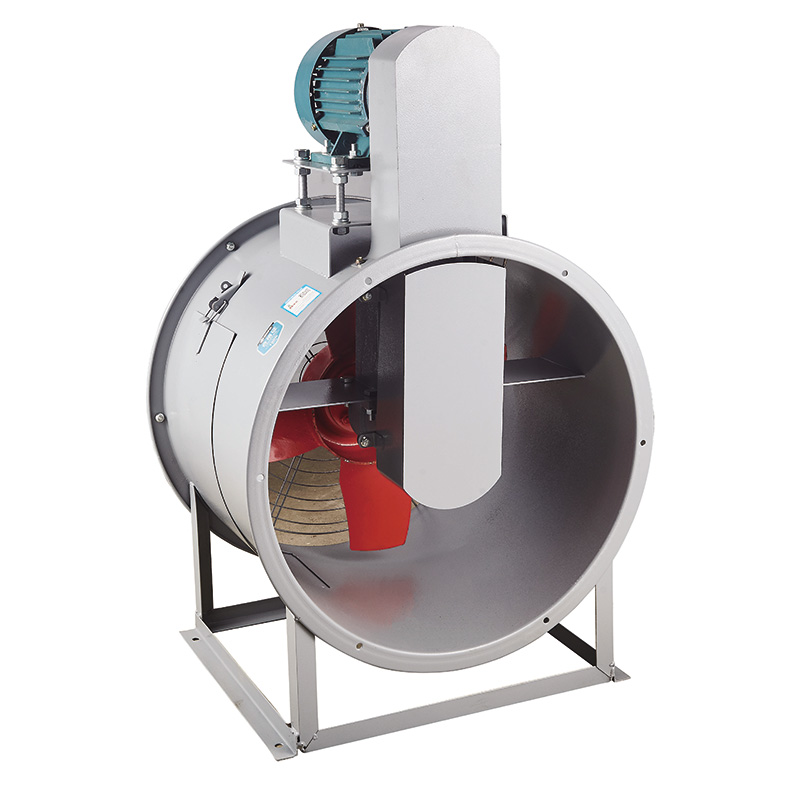

According to user needs, this series can adopt an external motor (mounted on the casing) with belt drive in its structure, designated as model KT40. It shares the same performance parameters as the T40 fan, with the primary function of exhausting high-temperature or moisture-resistant gases.
T40：The T40 axial flow fan is suitable for ventilation and heat dissipation in general factories, warehouses, offices, and residences. Removing the casing allows it to be used as a free-standing fan, or it can be installed in spaced series along long exhaust ducts to increase air pressure in the pipeline.
KT40：According to user needs, this series can adopt an external motor (mounted on the casing) with belt drive in its structure, designated as model KT40. It shares the same performance parameters as the T40 fan, with the primary function of exhausting high-temperature or moisture-resistant gases.
| Core Technical Parameters | ||||||
| model | Rotation speed (r/min) |
Power (kW) |
Voltage (V) |
Air flow (m³/h) |
Total pressure (Pa) |
Noise Level dB(A) |
| 2.5 | 2900 | 0.18-2 | 220/380 | 2010 | 152 | 71 |
| 1450 | 0.09-4 | 220/380 | 1010 | 38 | 56 | |
| 3 | 2900 | 0.55-2 | 220/380 | 3480 | 219 | 76 |
| 1450 | 0.12-4 | 220/380 | 1740 | 55 | 51 | |
| 3.5 | 2900 | 0.75-2 | 220/380 | 5520 | 298 | 80 |
| 1450 | 0.12-4 | 220/380 | 2760 | 75 | 65 | |
| 4 | 2900 | 1.5-2 | 220/380 | 8240 | 390 | 84 |
| 1450 | 0.25-4 | 220/380 | 4120 | 97 | 69 | |
| 5 | 1450 | 0.75-4 | 220/380 | 8050 | 152 | 75 |
| 960 | 0.25-6 | 220/380 | 5332 | 66 | 66 | |
| 6 | 1450 | 1.5-4 | 380 | 13900 | 219 | 80 |
| 960 | 0.75-6 | 380 | 9202 | 96 | 72 | |
| 7 | 1450 | 3.0-4 | 380 | 22100 | 300 | 81 |
| 960 | 0.75-6 | 380 | 14602 | 131 | 72 | |
| 8 | 1450 | 5.5-4 | 380 | 33000 | 389 | 83 |
| 960 | 1.5-6 | 380 | 21800 | 171 | 79 | |
| 9 | 960 | 3-6 | 380 | 31100 | 216 | 80 |
| 10 | 960 | 5.5-6 | 380 | 42700 | 267 | 82 |
