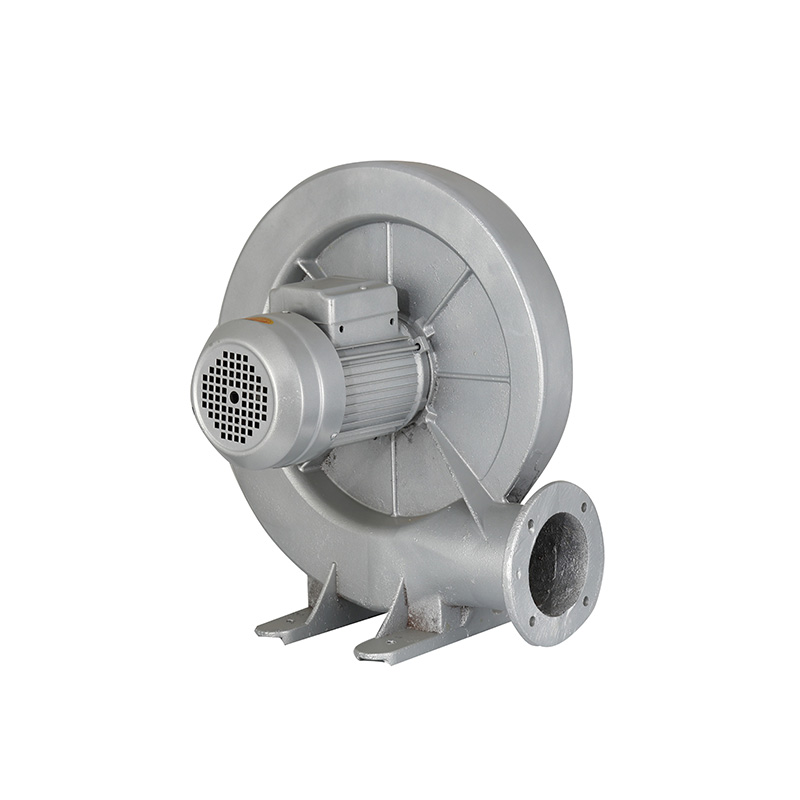

The medium pressure fan adopts stamped and aluminum alloy die-casting shell and fan blades, which are lightweight, novel in style, beautiful in appearance, and easy to install.The blades of the fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
Applications:
Widely used for factory smelting processes, diesel burners, vaporizing furnaces, and integrated kitchen ventilation. Particularly well suited for blower supply on boiler systems, plastics and chemical production, drying equipment, film-blowing machines, printing presses, and textile machinery.
| Core Technical Parameters | ||||||||
| Model | Power (W) |
Voltage (V) |
Frequency (Hz) |
Air flow (m³/h) |
Total pressure (Pa) |
Rotation speed (r/min) |
Caliber (mm) |
Noise Level
dB(A) |
| LZY | 180W | 220/380 | 50 | 480 | 1300 | 2800 | 65 | 50 |
| LZY | 250W | 220/380 | 50 | 620 | 1530 | 2800 | 75 | 55 |
| LZY | 370W | 220/380 | 50 | 780 | 1700 | 2800 | 75 | 60 |
| LZY | 550W | 220/380 | 50 | 950 | 1900 | 2800 | 100 | 65 |
| LZY | 750W | 220/380 | 50 | 1050 | 2050 | 2800 | 100 | 70 |
| External Dimensions | ||||||||||||
| Model | Power (W) |
Air outlet (mm) |
Air intake (mm) |
Length (mm) |
Width (mm) |
Height (mm) |
Base threaded Mounting Hole
(mm) |
|||||
| Φ1 | Φ2 | Φ3 | a*n | Φ4 | L | N | M | C1 | C2 | ΦA | ||
| LZY | 180W | 65 | 95 | 112 | φ7*4 | 100 | 250 | 310 | 325 | 120 | 85 | 9 |
| LZY | 250W | 75 | 95 | 112 | φ7*4 | 100 | 300 | 355 | 385 | 135 | 110 | 9 |
| LZY | 370W | 75 | 95 | 112 | φ7*4 | 100 | 300 | 355 | 385 | 135 | 110 | 9 |
| LZY | 550W | 100 | 125 | 152 | φ9*4 | 125 | 315 | 415 | 445 | 165 | 135 | 9 |
| LZY | 750W | 100 | 125 | 152 | φ9*4 | 125 | 315 | 415 | 445 | 165 | 135 | 9 |
