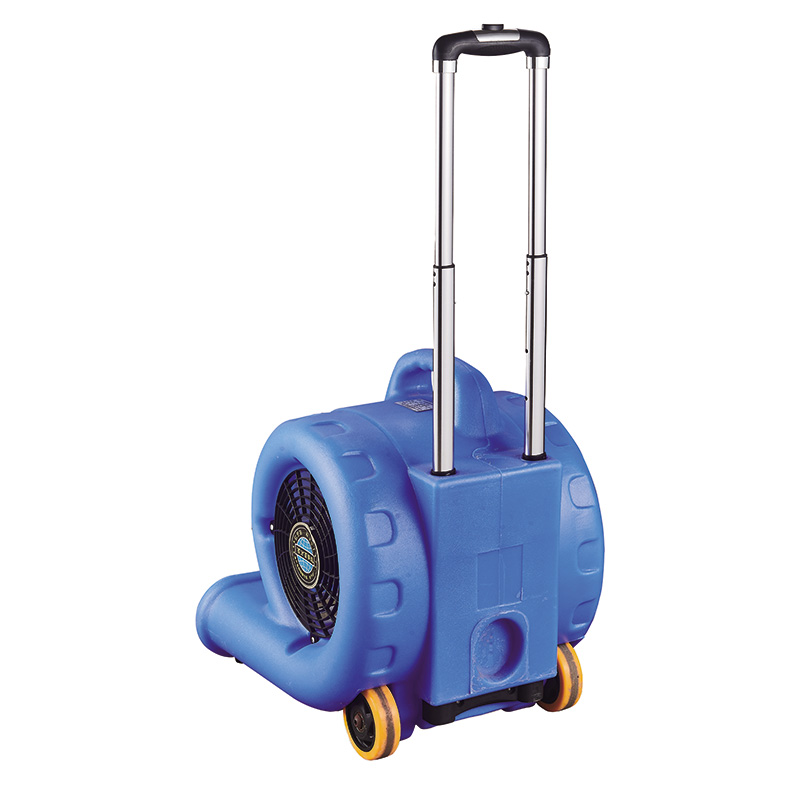

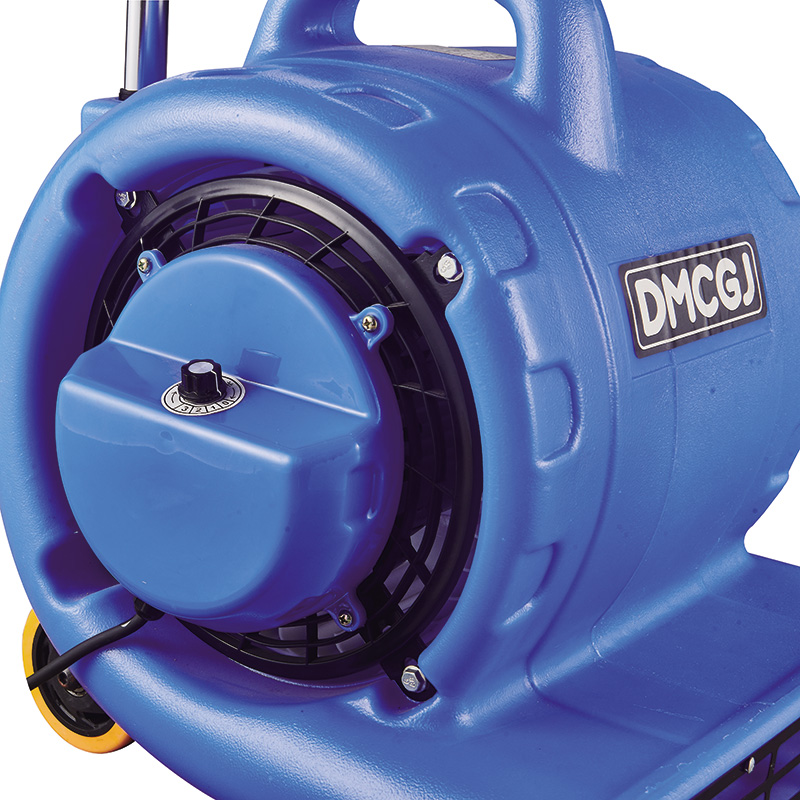

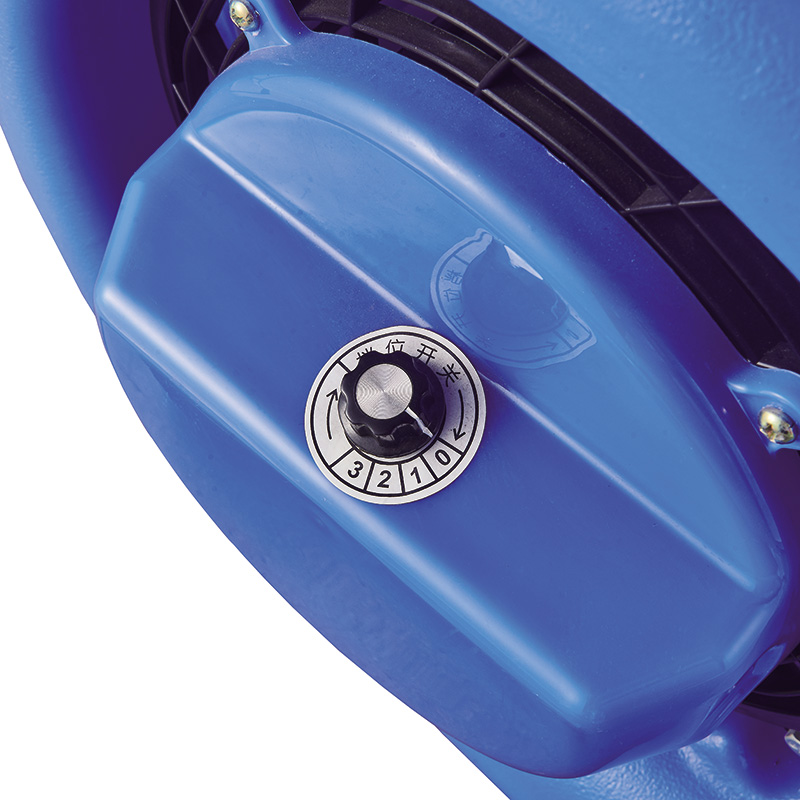

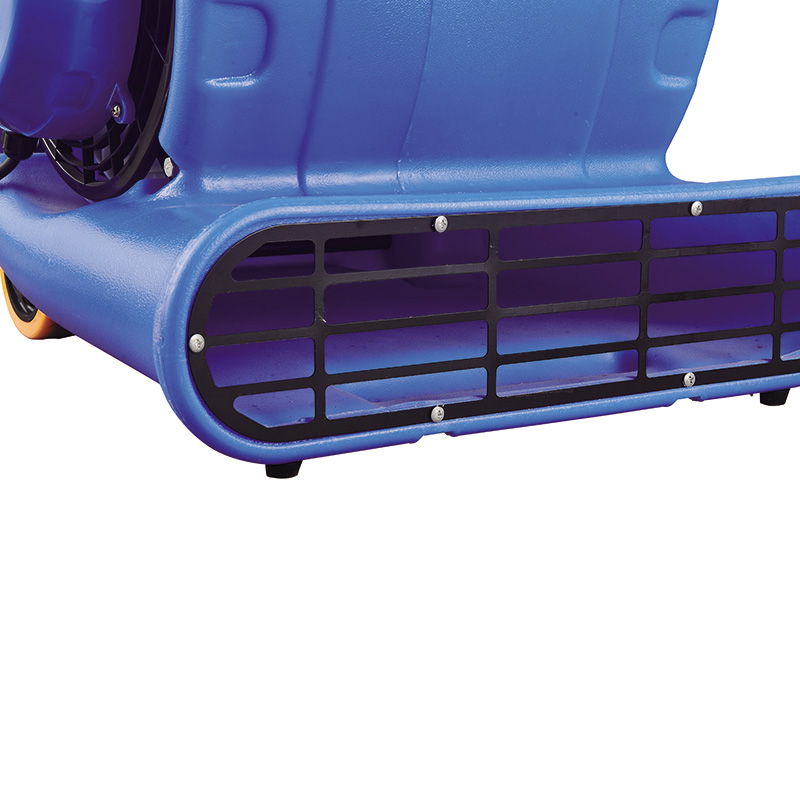

The ground dryer is equipped with a handle and swivel casters for easy transport and mobility. Its three-position pull-rod system allows you to adjust the handle height to suit your needs. A protective mesh guard over the motor prevents debris from entering, and three adjustable fan speeds allows for adjusting the air volume according to actual conditions.
The ground dryer is equipped with a handle and swivel casters for easy transport and mobility. Its three-position pull-rod system allows you to adjust the handle height to suit your needs. A protective mesh guard over the motor prevents debris from entering, and three adjustable fan speeds allows for adjusting the air volume according to actual conditions.
Applications:
Ideal for quickly drying floors and carpets after cleaning in hotels, office buildings, and exhibition halls. It can also be used for general ventilation and heat dissipation.
| Core Technical Parameters | |||||||
| Power (W) |
Voltage (V) |
External Dimensions
(mm) |
Air outlet (mm) |
weight (kg) |
|||
| Width | Length | Height | Length | Height | |||
| 180w/250w | 220v/380v | 220 | 290 | 300 | 220 | 93 | 3 |
| 550w/750w | 220v/380v | 370 | 390 | 440 | 375 | 105 | 9 |
| 950w/1100w | 220v/380v | 430 | 450 | 500 | 435 | 115 | 12 |
| 3200w heated model |
220v/380v | 420 | 440 | 490 | 430 | 110 | 16.5 |
