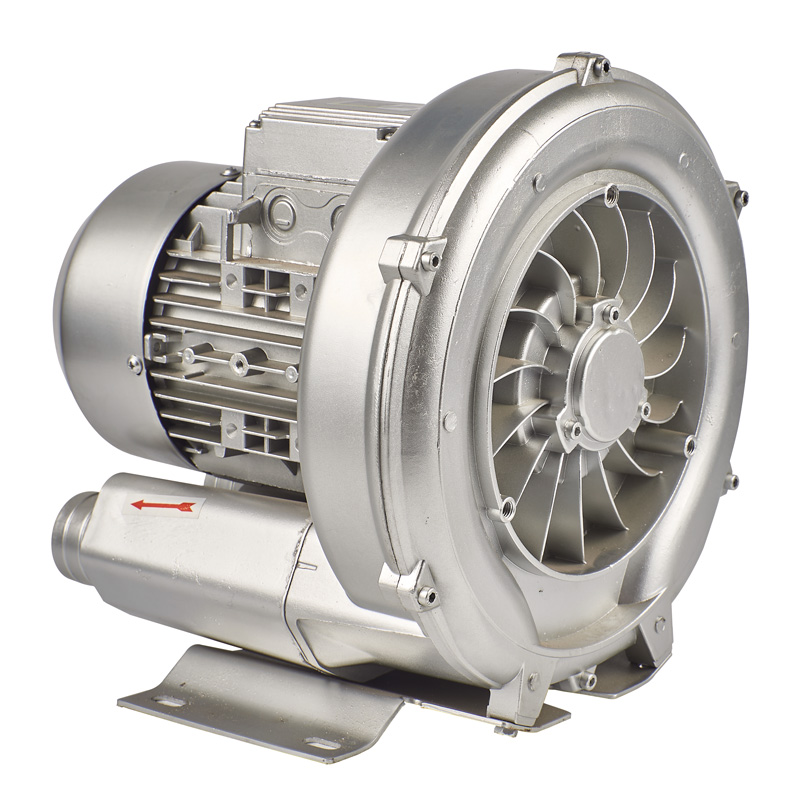

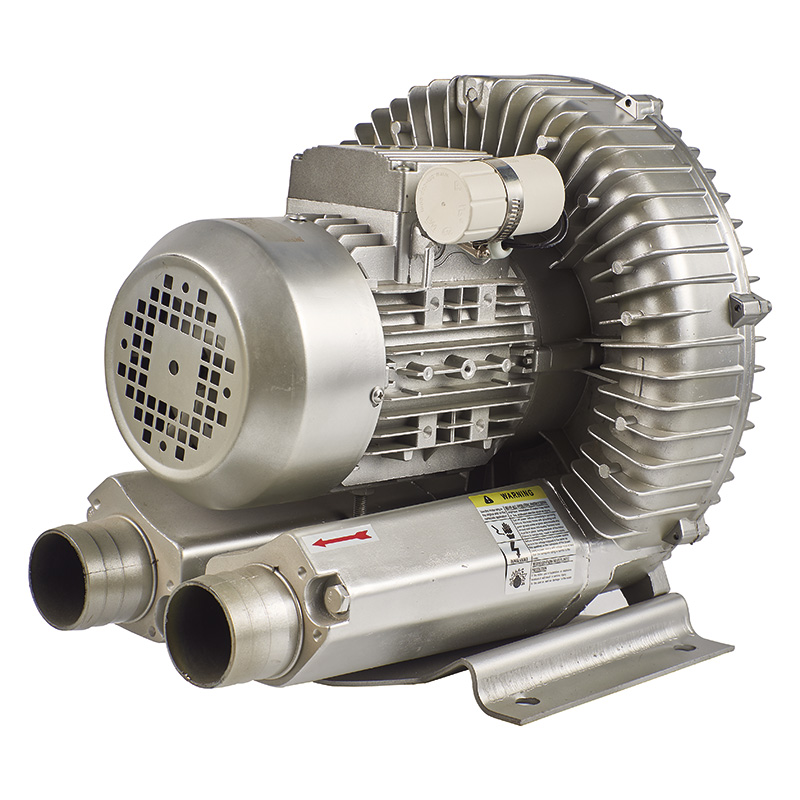

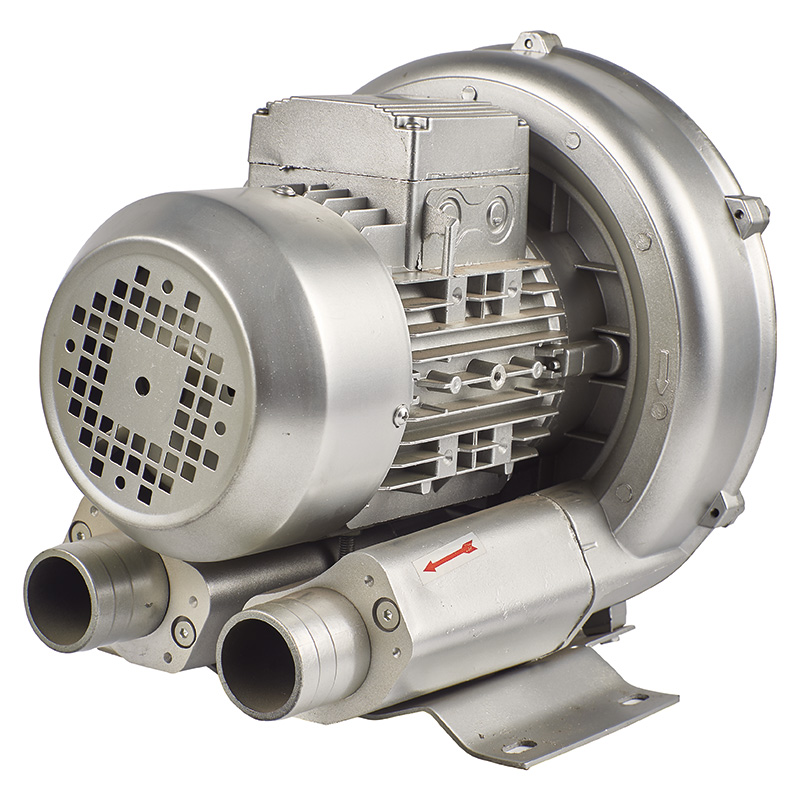

The vortex air pump features a compact structure, small size, light weight, low noise, and both blowing and suction functions. The aluminum-alloy housing optimizes heat dissipation; the motor uses pure copper windings. Widely used in equipment support, water treatment aeration, aquaculture, gas conveyance, dust removal, bottle drying, material feeding, collection, etc.
The vortex air pump features a compact structure, small size, light weight, low noise, and both blowing and suction functions. The aluminum-alloy housing optimizes heat dissipation; the motor uses pure copper windings. Widely used in equipment support, water treatment aeration, aquaculture, gas conveyance, dust removal, bottle drying, material feeding, collection, etc.
1.Air suction function: Screen-printing machine adhesion; welding fume extraction; textile machine fiber suction; photographic plate making; powder and granule conveyance; printing suction; industrial vacuuming; vacuum dehydration; book binding machine; fabric scrap processing; milk carton filling; tofu machine; product holding; construction sites; fabric ironing machines; gas decomposition.
2.Blowing function: Gas and heavy oil combustion; bottle-washing machine drying; paper and cloth strip blowing; air knives for drying; shearing machine air cushion; manure fermentation aeration; voucher transport; electrolyte agitation; fish-tank oxygen supply; punch-press part removal; powder and granule conveyance; incinerator grate waste removal; flue-gas blowing and suction; car-wash drying; printing machine forced drying; post-wash air drying.
| Model | Voltage (V) |
Power (kW) |
Rotation speed （r/min） |
Wind Pressure
（kpa） |
Negative Pressure
（kpa） |
Air flow (m³/h) |
Frequency (Hz) |
Noise Level
dB(A) |
| XGB-120 | 220 | 0.12 | 2800 | 7 | 6 | 38 | 50 | 55 |
| XGB-180 | 220 | 0.18 | 2800 | 10 | 8 | 40 | 50 | 55 |
| XGB-250 | 220/380 | 0.25 | 2800 | 12 | 8.5 | 56 | 50 | 56 |
| XGB-370 | 220/380 | 0.37 | 2800 | 16 | 11 | 80 | 50 | 60 |
| XGB-550 | 220/380 | 0.55 | 2800 | 20 | 16 | 110 | 50 | 60 |
| XGB-750 | 220/380 | 0.75 | 2800 | 22 | 20 | 150 | 50 | 60 |
| XGB-1100 | 220/380 | 1.1 | 2800 | 25 | 22 | 220 | 50 | 60 |
| XGB-1500 | 220/380 | 1.5 | 2800 | 27 | 24 | 240 | 50 | 60 |
| XGB-2200 | 220/380 | 2.2 | 2800 | 36 | 33 | 325 | 50 | 70 |
| XGB-3000 | 380 | 3 | 2800 | 38 | 35 | 390 | 50 | 70 |
| XGB-3800 | 380 | 3.8 | 2800 | 42 | 38 | 430 | 50 | 70 |
| XGB-4000 | 380 | 4 | 2800 | 45 | 41 | 480 | 50 | 70 |
| XGB-5500 | 380 | 5.5 | 2800 | 50 | 48 | 530 | 50 | 70 |
| XGB-7500 | 380 | 7.5 | 2800 | 56 | 51 | 550 | 50 | 70 |
| XGB-9000 | 380 | 9 | 2800 | 70 | 53 | 1000 | 50 | 70 |
| XGB-11000 | 380 | 11 | 2800 | 80 | 56 | 1100 | 50 | 70 |
| XGB-15000 | 380 | 15 | 2800 | 85 | 58 | 1150 | 50 | 70 |
| XGB-18500 | 380 | 18.5 | 2800 | 90 | 60 | 1200 | 50 | 70 |
| Model (mm) |
A
Installation Hole Center Distance |
B
Width |
C
Height |
D
Installation Hole Center Distance |
E
Length |
F
Distance between Inlet & Outlet |
G
Inlet/Outlet Port Diameter |
| XGB-120 | 160 | 190 | 210 | 55 | 195 | 80 | 32 |
| XGB-180 | 195 | 245 | 220 | 80 | 203 | 86 | 32 |
| XGB-250 | 205 | 246 | 247 | 83 | 260 | 90 | 40 |
| XGB-370 | 205 | 246 | 247 | 83 | 260 | 90 | 40 |
| XGB-550 | 205 | 268 | 272 | 83 | 277 | 93 | 40 |
| XGB-750 | 235 | 286 | 302 | 95 | 300 | 111 | 50 |
| XGB-1100 | 270 | 335 | 340 | 140 | 325 | 115 | 60 |
| XGB-1500 | 270 | 335 | 340 | 140 | 325 | 115 | 60 |
| XGB-2200
small |
290 | 362 | 365 | 140 | 350 | 120 | 60 |
| XGB-2200 | 290 | 382 | 385 | 140 | 377 | 125 | 60 |
| XGB-3000 | 290 | 382 | 385 | 140 | 377 | 125 | 60 |
| XGB-3800 | 315 | 405 | 410 | 140 | 415 | 125 | 60 |
| XGB-4000 | 315 | 418 | 470 | 185 | 435 | 125 | 75 |
| XGB-5500 | 360 | 446 | 480 | 170 | 476 | 148 | 75 |
| XGB-7500 | 360 | 446 | 480 | 170 | 476 | 148 | 75 |
| XGB-9000 | 360 | 550 | 570 | 540 | 600 | 207 | 111 |
| XGB-11000 | 360 | 550 | 570 | 540 | 600 | 207 | 111 |
| XGB-15000 | 360 | 550 | 570 | 540 | 600 | 207 | 111 |
| XGB-18500 | 360 | 550 | 570 | 540 | 600 | 207 | 111 |
The HFJZ-B craftsman kitchen fan is a square-housed ultra-quiet multi-blade centrifugal fan specially designed for kitchen exhaust. It was engineered to meet the demand for low-noise kitchen fans in modern kitchens and the exhaust requirements of communal ductwork. Compared to conventional multi-blade fans, it offers advantages such as higher pressure and lower noise levels. Moreover, it features a high static pressure design to tackle long ductwork and high resistance typical of modern kitchen setups.

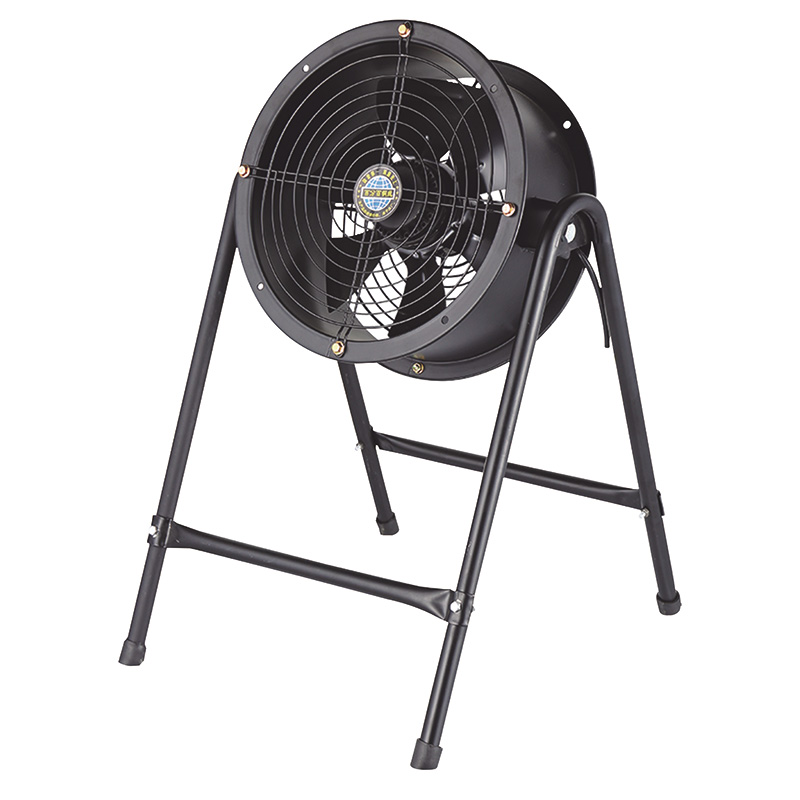

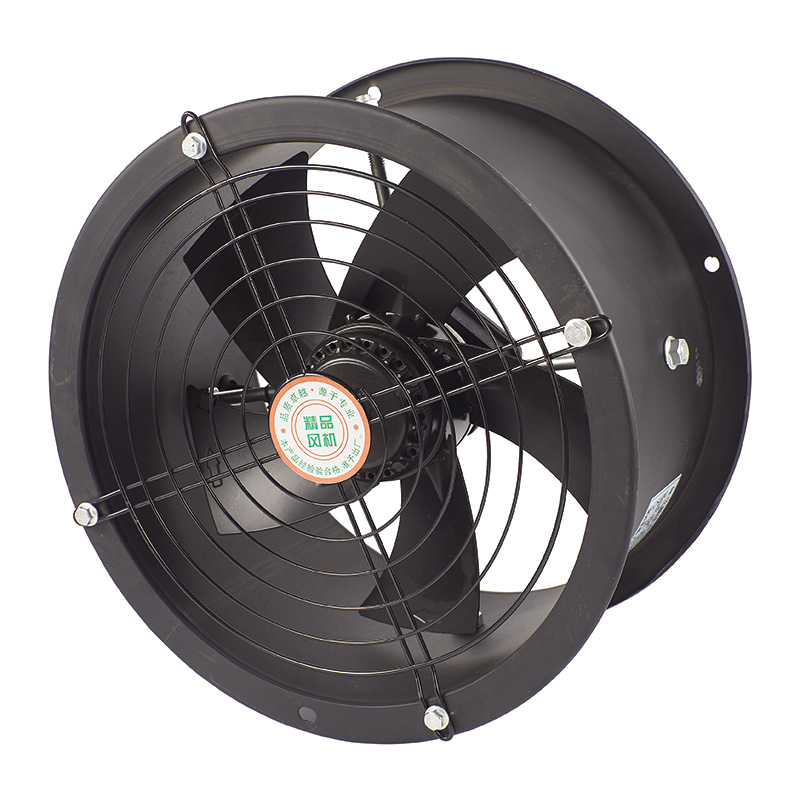

The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.

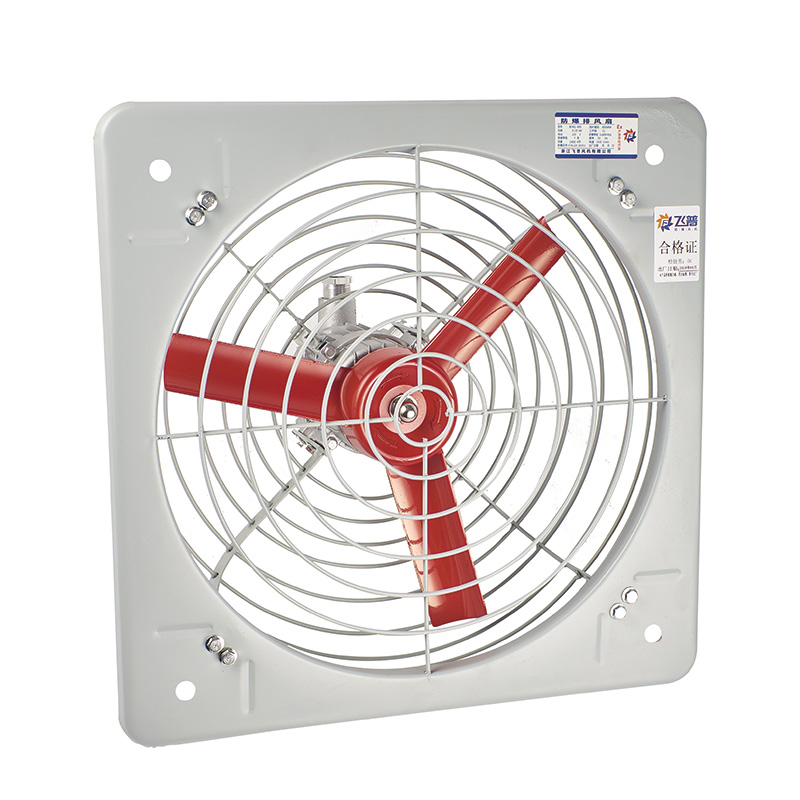

The BFAG explosion-proof exhaust fan is a commonly used explosion-proof ventilation device in the industrial field. It is mainly used in environments containing flammable and explosive gases or dust to ensure that the equipment does not ca use fire or explosion during operation.

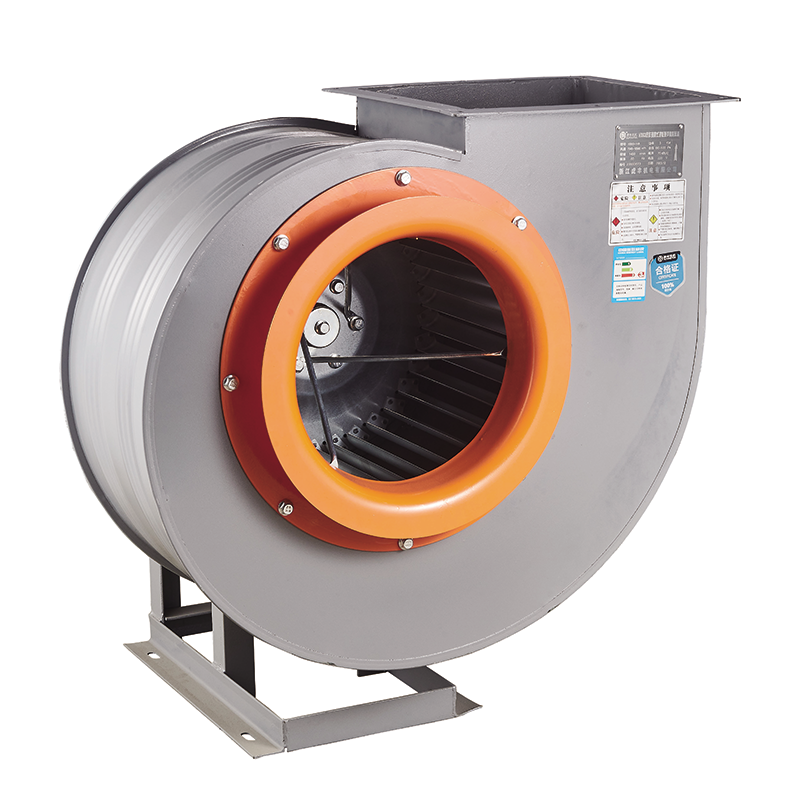

The HX63 is a new type developed from the 11-62 series. Engineered to meet the demands of green industry and environmental noise reduction. Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life. Suitable for kitchen exhaust, fume extraction, or ventilation in public venues like canteens, hotels, and restaurants. Also ideal for use with production equipment such as grain machinery, chemical machinery, and plastic machinery. Highly versatile and adaptable for wide-ranging applications.

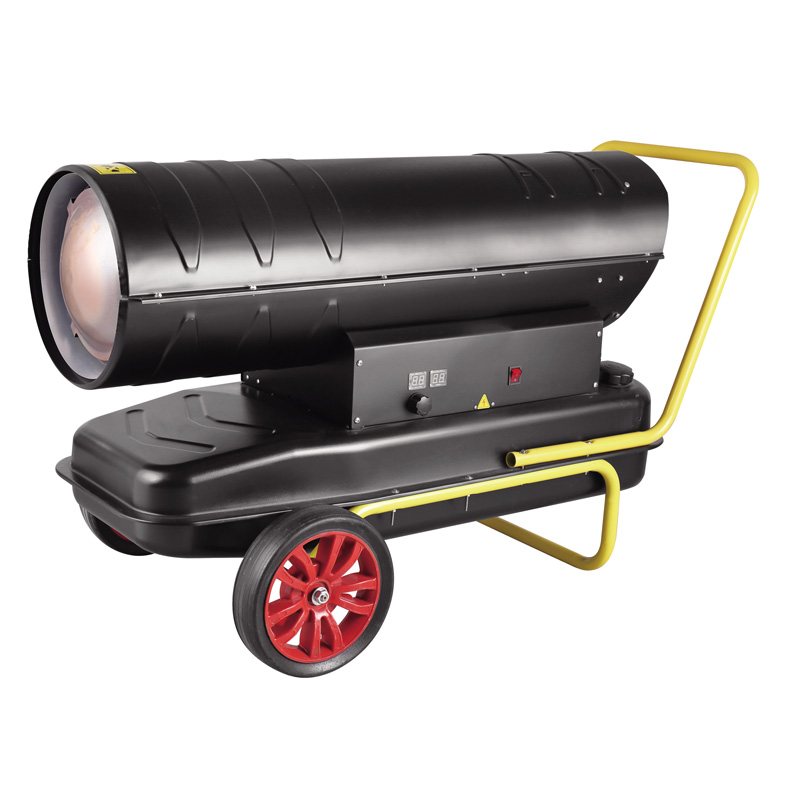

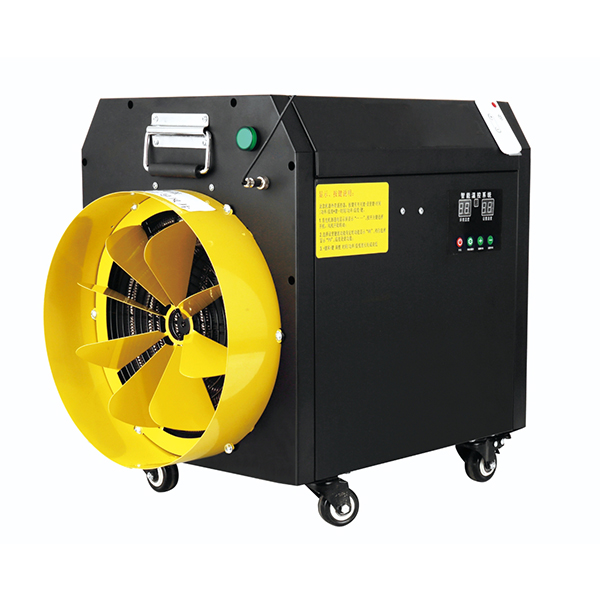

Ideal for moisture-proof drying; localized heating; construction sites; outdoor heating; equipment insulation; railway stations and airports; yachts and ships; paint drying; mobile heating; quick warming; venues and clubs; clean heat delivery; rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
Ideal for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railways, airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
The 9-19 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.

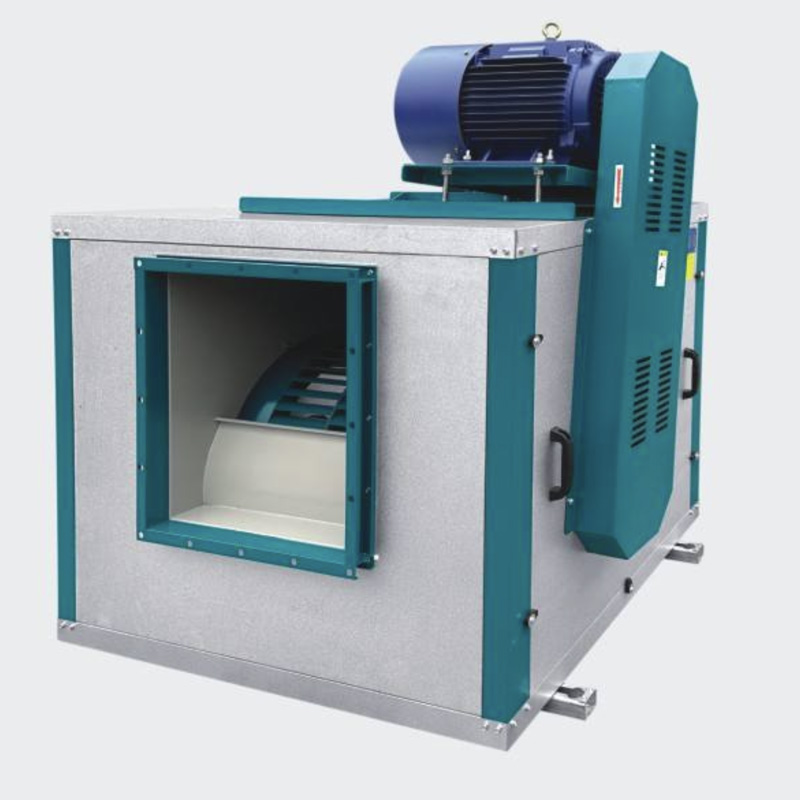

The GDT high-pressure low-noise cabinet-type smoke exhaust fan is a high-pressure cabinet-type smoke exhaust fan specially developed and designed by the company for kitchen smoke exhaust in recent years, based on the multi-blade low-noise air cabinet and the rear-inclined high-pressure air cabinet, in response to market demands. It combines the pressure of high-pressure fans with the low noise of multi-blade fans.

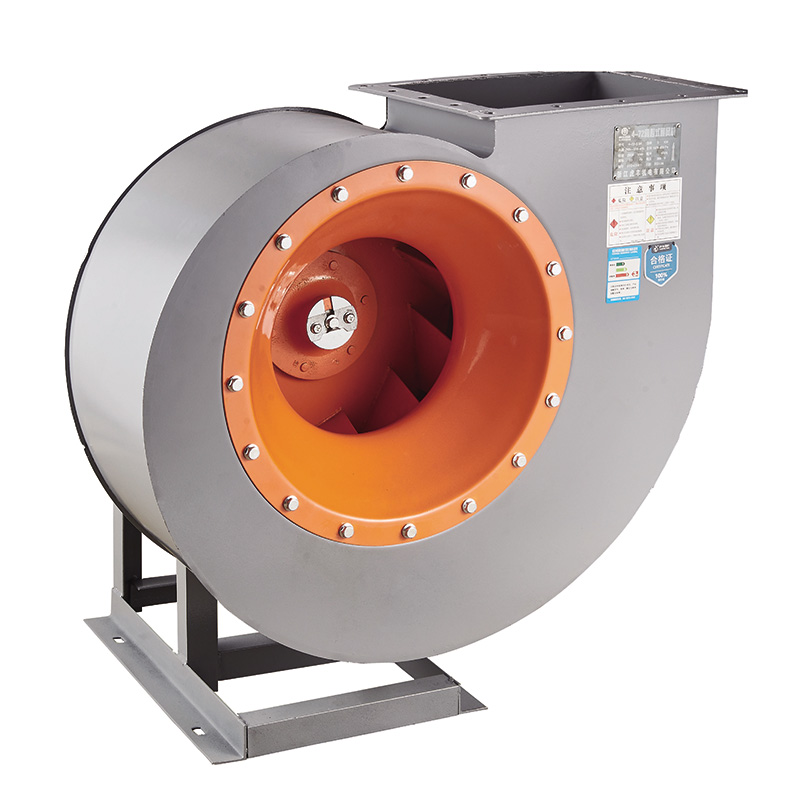

The 4-72 Model Centrifugal Fan conveys air and other non-flammable, non-toxic gases that do not corrode steel. No viscous substances are permitted within the system. The dust and hard particulate content must not exceed 150 mg/m³, and the gas temperature must not exceed 80°C. This fan employs backward-curved blades with superior aerodynamic properties, delivering smooth operation, high airflow, minimal vibration, high efficiency, and extended service life. It is widely used for ventilation in industrial and mining enterprises, large-scale buildings, hotels, and restaurants.

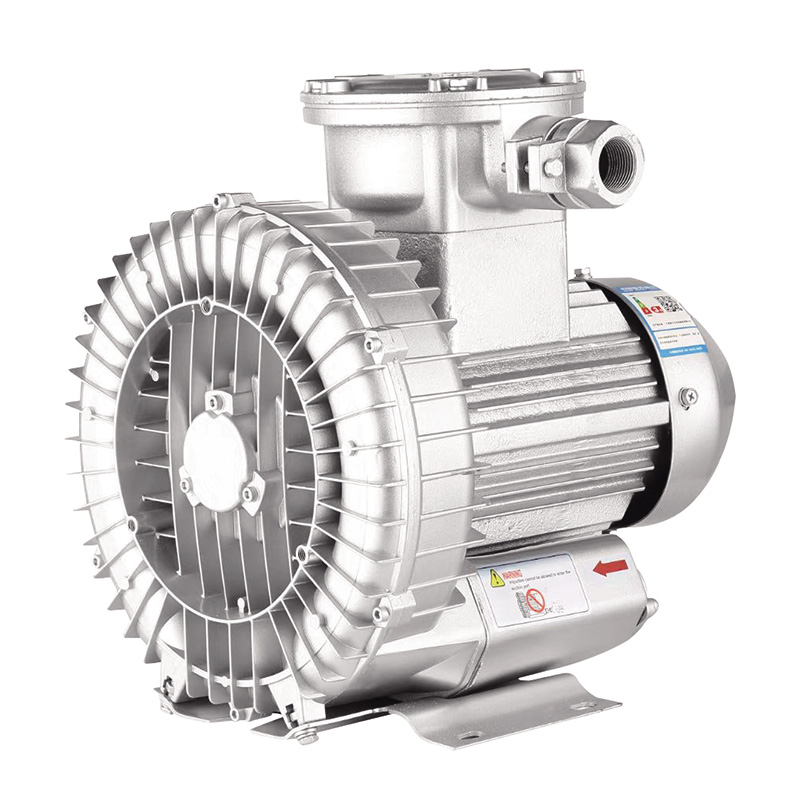

Designed for hazardous, flammable, or explosive environments.Adopts a series of explosion-proof measures to ensure safe operation in dangerous environments. The pump features a special explosion-proof housing material to prevent sparks or arcs from igniting the surroundings. Also includes dust-proof functions to withstand harsh conditions.

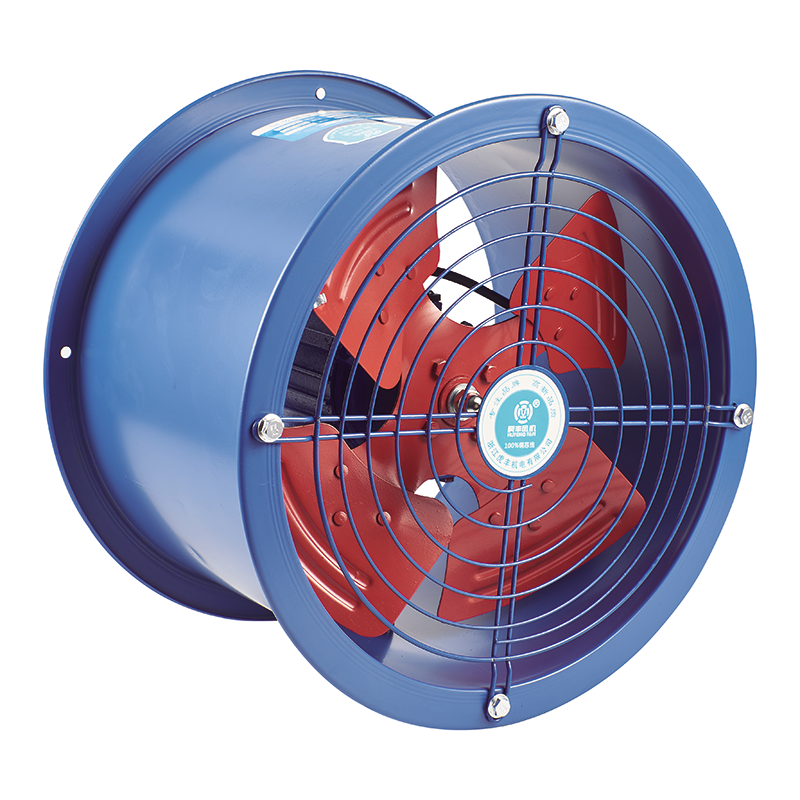

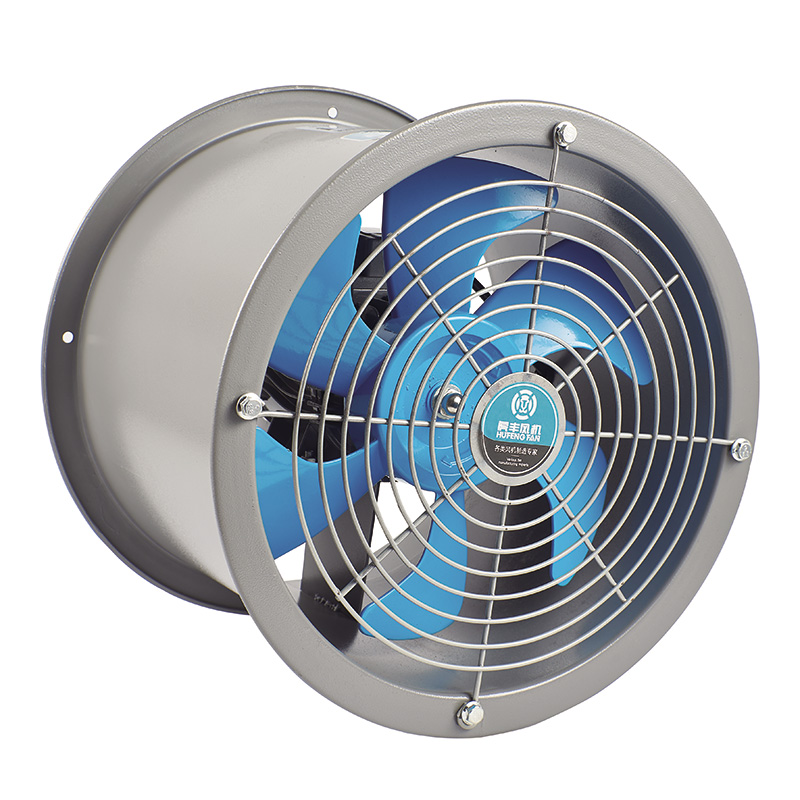

The SFB high-air-volume axial flow fan has undergone comprehensive upgrades based on the SF model, equipped with aluminum alloy sickle-shaped blades. It adopts an aluminum alloy casing to enhance the motor’s sealing performance, featuring low noise, large air volume, high wind pressure, excellent heat dissipation, and stable operation.

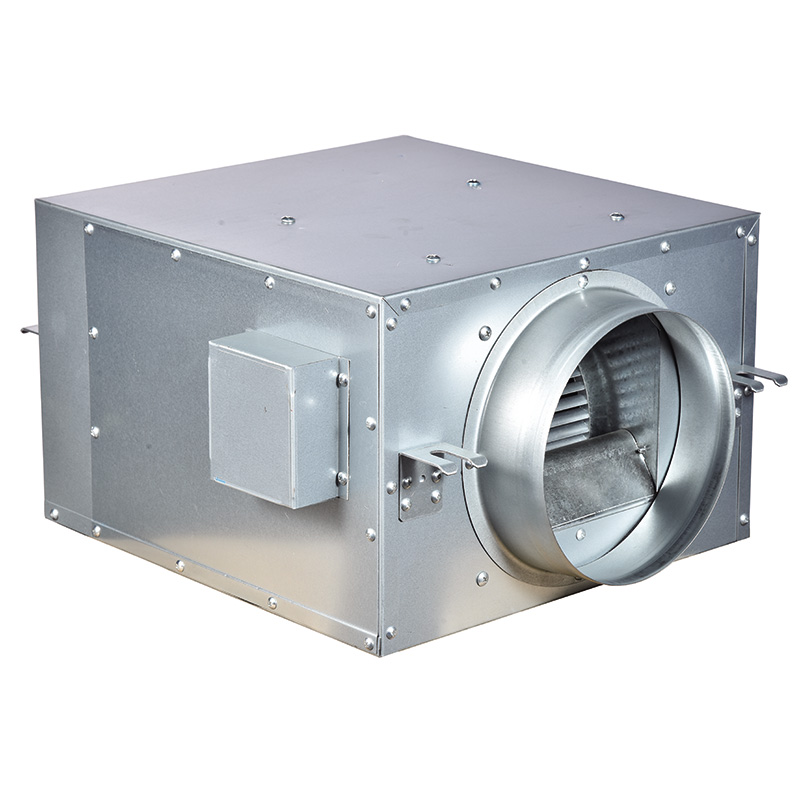

The DPT Ultra-Quiet Ventilator is a product developed by our company after introducing advanced technologies and manufacturing methods both at home and abroad.Suitable for ventilation in quiet places such as offices, hotels, villas, guesthouses, etc.

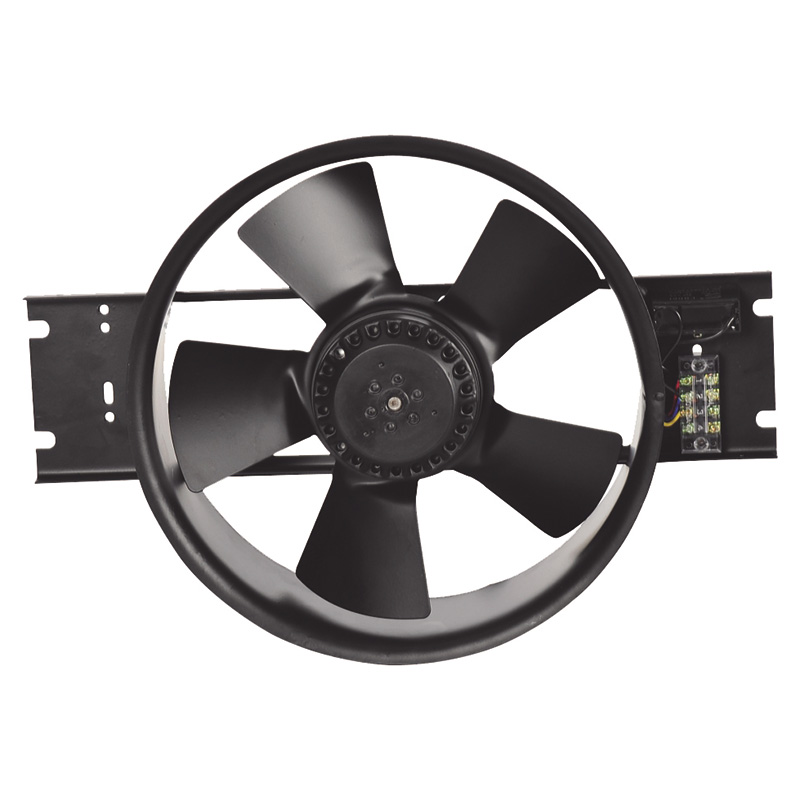

The New Power Frequency Type YWF Series Mains-Frequency-Type Fan is a product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher energy efficiency ratio, lower noise, minimal vibration, more compact structure, and more aesthetically pleasing appearance. This series is suitable for occasions where space is limited and environmental requirements are high.

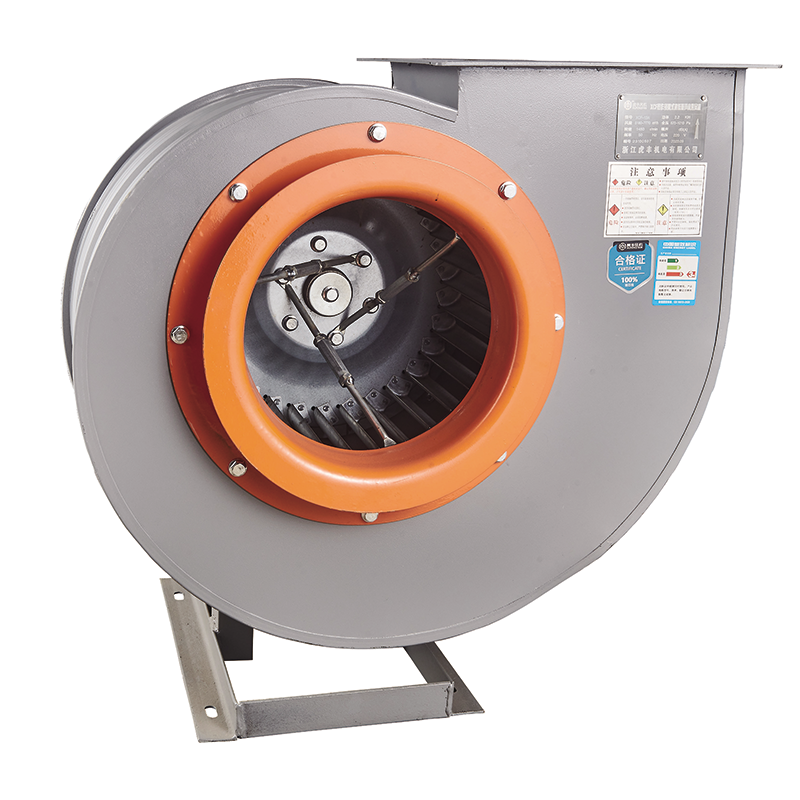

The XCF is a new type developed from the CF-11 series. Engineered to incorporate the needs of modern urban kitchens, this comprehensive fan balances features like high resistance, high static pressure, ultra-low noise, and safety in its design.Compared to conventional multi-blade fans, it offers advantages such as higher pressure and lower noise levels. Moreover, it features a high static pressure design to tackle long ductwork and high resistance typical of modern kitchen setups.Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life.
