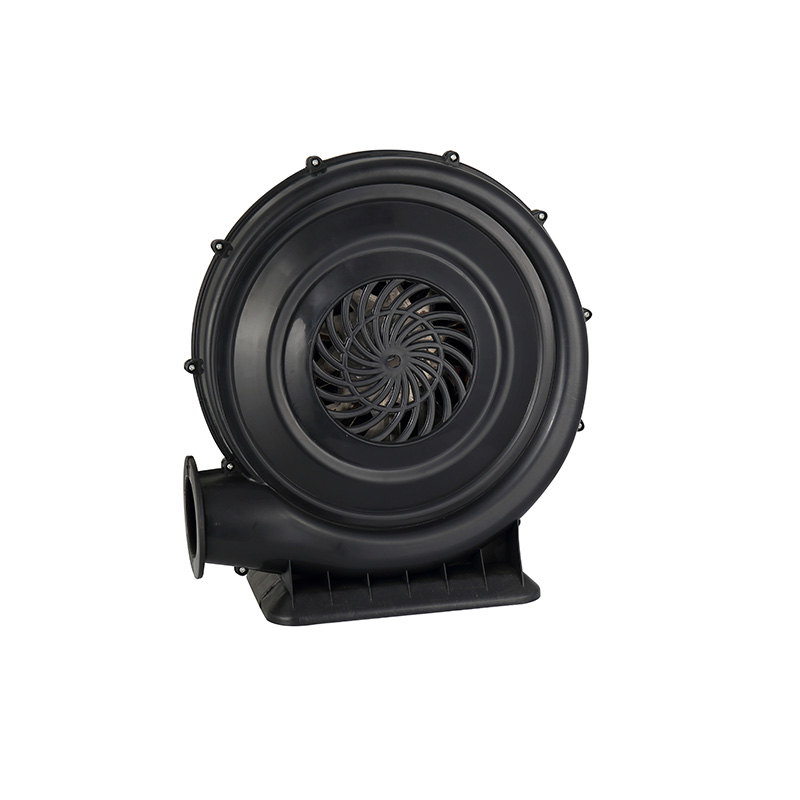

The casing of the plastic air mold fan is injection molded from engineering plastics, featuring light weight, low cost, good insulation and an attractive appearance. The blades of the fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
The casing of the plastic air mold fan is injection molded from engineering plastics, featuring light weight, low cost, good insulation and an attractive appearance. The blades of the fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
Plastic air model fans are core power equipment specifically designed to provide a continuous air source for inflatable products such as air models, inflatable arches, inflatable dolls, inflatable castles, advertising balloons, and inflatable tents.
| Core Technical Parameters | ||||||||
| Power (W) |
External Dimensions
(mm) |
Air intake （мм） |
Motor Mounting Hole Spacing
(mm) |
weight (kg) |
||||
| Width | Length | Height | Inner diameter |
Outer diameter |
Length | Width | ||
| 250W | 160 | 300 | 330 | 60 | 90 | 110 | 110 | 3 |
| 370W | 190 | 320 | 390 | 65 | 95 | 120 | 120 | 4 |
| 550W | 225 | 400 | 400 | 70 | 105 | 110 | 110 | 5.5 |
| 750W | 280 | 400 | 400 | 85 | 120 | 135 | 135 | 9 |
| 1100W | 320 | 500 | 480 | 120 | 160 | 175 | 175 | 11.5 |
The GDT high-pressure low-noise cabinet-type smoke exhaust fan is a high-pressure cabinet-type smoke exhaust fan specially developed and designed by the company for kitchen smoke exhaust in recent years, based on the multi-blade low-noise air cabinet and the rear-inclined high-pressure air cabinet, in response to market demands. It combines the pressure of high-pressure fans with the low noise of multi-blade fans.
The ground dryer is equipped with a handle and swivel casters for easy transport and mobility. Its three-position pull-rod system allows you to adjust the handle height to suit your needs. A protective mesh guard over the motor prevents debris from entering, and three adjustable fan speeds allows for adjusting the air volume according to actual conditions.
The T35-11 series axial flow fans are suitable for transporting non-corrosive gases free of significant dust, with the ambient temperature not exceeding 60°C.It is widely used for ventilation and cooling in ordinary factories, warehouses, offices, and residential buildings.
The fan features Low noise , high air volume , high pressure , low vibration , compact structure , small volume, light weight , easy installation and use .Versatile mounting bracket supports multiple installation orientations.
The HTFC series multi wing low-noise cabinet centrifugal fan is a newly designed and developed product by our company to meet the needs of the increasingly developing commercial kitchen oil fume exhaust, industrial purification, and fresh air conditioning industries. Based on the digestion and absorption of advanced technologies at home and abroad, the principle of combining aerodynamics and aeroacoustics is applied. It has the characteristics of large air volume, high static pressure, low noise, and small vibration.
The fan features high wind pressure, high rotation speed, large air volume, mobile convenience, and strong suction. The casing is made of cold-rolled steel with plastic spraying, the impeller is cast aluminum alloy, and the motor is wound with pure copper wire. Manufactured with optimized aerodynamic design and advanced processing technology, it has a lighter structure.
The 4-72 Model Centrifugal Fan conveys air and other non-flammable, non-toxic gases that do not corrode steel. No viscous substances are permitted within the system. The dust and hard particulate content must not exceed 150 mg/m³, and the gas temperature must not exceed 80°C. This fan employs backward-curved blades with superior aerodynamic properties, delivering smooth operation, high airflow, minimal vibration, high efficiency, and extended service life. It is widely used for ventilation in industrial and mining enterprises, large-scale buildings, hotels, and restaurants.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The 9-19 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
The SFA premium axial flow fan improves upon the SF model by redesigning the blades and adopting an aluminum alloy casing to enhance the motor’s sealing performance. It features low noise, large air volume, high wind pressure, excellent heat dissipation, and stable operation.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The DKT type external rotor centrifugal air conditioning fan is a multi wing centrifugal fan with high air volume, low noise, compact structure, sturdy and durable, beautiful appearance, and easy installation and use. This fan is widely used in various air conditioning units, air curtains, cooling and heating fans, etc. It can also be used for indoor ventilation and air exchange in industrial and mining enterprises and public places. The medium it transports is air and other unnatural gases that are harmless to the human body. The gas is not allowed to contain particulate matter and has a dust content of no more than 150mg/m3.
The YL series electric motor is the latest designed fully enclosed single-phase motors, featuring a simple structure, reliable operation, convenient maintenance and affordable price.
The CBF Explosion-Proof Axial Fan is specialized ventilation equipment for hazardous environments. The fan is composed of an explosion-proof motor, blades, casing, etc. To prevent sparks from friction, the blades are made of cast aluminum alloy.The fan features low noise, low energy consumption, and superior performance. In addition to ventilation and exhaust, it can be installed in spaced series along long exhaust ducts to increase duct pressure. Unlike general fans in structure and material, its applications are similar.
The New Power Frequency Type YWF Series Mains-Frequency-Type Fan is a product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher energy efficiency ratio, lower noise, minimal vibration, more compact structure, and more aesthetically pleasing appearance. This series is suitable for occasions where space is limited and environmental requirements are high.
The DPT Ultra-Quiet Ventilator is a product developed by our company after introducing advanced technologies and manufacturing methods both at home and abroad.Suitable for ventilation in quiet places such as offices, hotels, villas, guesthouses, etc.
