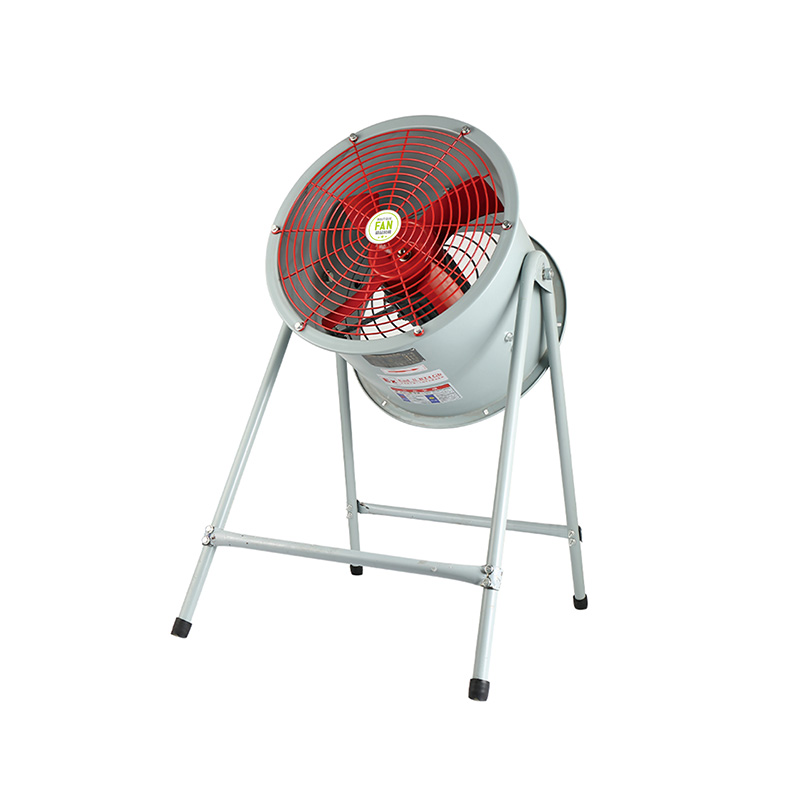

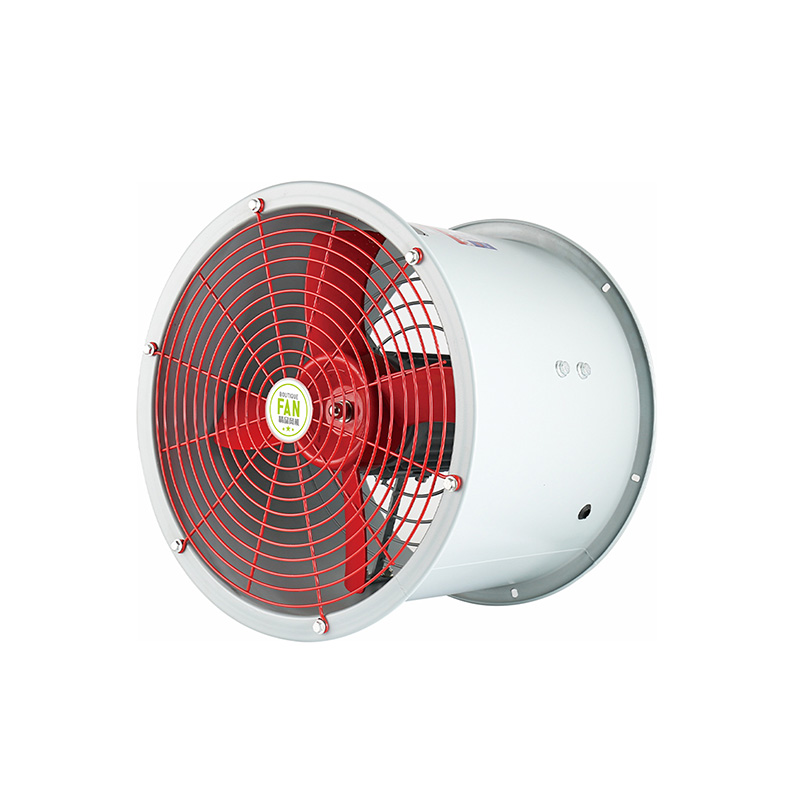

The T35-11 series axial flow fans are suitable for transporting non-corrosive gases free of significant dust, with the ambient temperature not exceeding 60°C.It is widely used for ventilation and cooling in ordinary factories, warehouses, offices, and residential buildings.
The T35-11 (T40-11) Series Axial Flow Ventilator is a new fan model redesigned in the 1980s based on the T30-11 series in China. Compared with the T30-11 fan, it demonstrates significant advantages:
1.More rational structure
2.Substantially improved performance, with total pressure efficiency reaching 89.5%.
3.Lower noise, with noise (A-weighted sound power level) reduced by 3.6 dB(A).
4.BT35-11: Explosion-proof axial flow fan for conveying flammable and explosive gases.
5.FT35-11: Corrosion-resistant axial flow fan made entirely of fiberglass-reinforced plastic (FRP), for conveying corrosive gases.
6.FBT35-11: Corrosion-resistant and explosion-proof axial flow fan for conveying corrosive, flammable, and explosive gases.
| Core Technical Parameters | |||||||
| model | Rotation speed (r/min) |
Blade Angle | Air flow (m³/h) |
Wind Pressure (Pa) |
Motor Model | Power (kW) |
Noise Level dB(A) |
| 2.8 | 2900 | 15 | 1649 | 152 | YSF-5622 | 0.12 | 70 |
| 20 | 2167 | 169 | 72 | ||||
| 25 | 2685 | 174 | YSF-6312 | 0.18 | 73 | ||
| 30 | 2921 | 186 | 74 | ||||
| 35 | 3202 | 232 | YSF-6322 | 0.25 | 75 | ||
| 1450 | 15 | 826 | 38 | YSF-5014 | 0.025 | 55 | |
| 20 | 1086 | 43 | 57 | ||||
| 25 | 1346 | 44 | 59 | ||||
| 30 | 1464 | 48 | YSF-5024 | 0.04 | 60 | ||
| 35 | 1605 | 60 | 62 | ||||
| 3.15 | 2900 | 15 | 2339 | 192 | YSF-6312 | 0.18 | 74 |
| 20 | 3070 | 214 | YSF-6322 | 0.25 | 76 | ||
| 25 | 3810 | 220 | YSF-7112 | 0.37 | 77 | ||
| 30 | 4141 | 237 | 78 | ||||
| 35 | 4545 | 294 | YSF-7122 | 0.55 | 79 | ||
| 1450 | 15 | 1169 | 48 | YSF-5014 | 0.025 | 59 | |
| 20 | 1537 | 53 | YSF-5024 | 0.04 | 61 | ||
| 25 | 1905 | 55 | 62 | ||||
| 30 | 2072 | 59 | YSF-5614 | 0.06 | 63 | ||
| 35 | 2273 | 74 | YSF-5624 | 0.09 | 65 | ||
| 3.55 | 2900 | 15 | 3367 | 241 | YSF-7112 | 0.37 | 76 |
| 20 | 4426 | 272 | 0.55 | 79 | |||
| 25 | 5484 | 279 | 80 | ||||
| 30 | 5965 | 300 | YSF-8012 | 0.75 | 81 | ||
| 35 | 6542 | 373 | YSF-8022 | 1.1 | 82 | ||
| 1450 | 15 | 1680 | 61 | YSF-5024 | 0.04 | 61 | |
| 20 | 2208 | 68 | YSF-5614 | 0.06 | 63 | ||
| 25 | 2737 | 70 | YSF-5624 | 0.09 | 65 | ||
| 30 | 2977 | 75 | 66 | ||||
| 35 | 3265 | 93 | YSF-6314 | 0.12 | 68 | ||
| 4 | 2900 | 15 | 4806 | 310 | YSF-7122 | 0.55 | 79 |
| 20 | 6316 | 345 | YSF-8022 | 1.1 | 80 | ||
| 25 | 7826 | 354 | 83 | ||||
| 30 | 8513 | 380 | 84 | ||||
| 35 | 9336 | 474 | YF90S-2 | 1.5 | 85 | ||
| 1450 | 15 | 2406 | 77 | YSF-5624 | 0.09 | 65 | |
| 20 | 3163 | 86 | YSF-6314 | 0.12 | 67 | ||
| 25 | 3920 | 88 | 68 | ||||
| 30 | 4263 | 95 | YSF-6324 | 0.18 | 69 | ||
| 35 | 4687 | 119 | YSF-7114 | 0.25 | 70 | ||
| 4.5 | 1450 | 15 | 3427 | 98 | YSF-6314 | 0.12 | 68 |
| 20 | 4504 | 110 | YSF-6324 | 0.18 | 70 | ||
| 25 | 5881 | 113 | YSF-7114 | 0.25 | 71 | ||
| 30 | 6070 | 121 | YSF-7124 | 0.37 | 72 | ||
| 35 | 6658 | 150 | 73 | ||||
| 5 | 1450 | 15 | 4700 | 122 | YSF-7114 | 0.25 | 71 |
| 20 | 6178 | 135 | YSF-7124 | 0.37 | 73 | ||
| 25 | 7655 | 138 | 74 | ||||
| 30 | 8327 | 149 | YSF-8014 | 0.55 | 75 | ||
| 35 | 9133 | 185 | YSF-8024 | 0.75 | 76 | ||
| 960 | 15 | 3142 | 53 | YSF-8016 | 0.37 | 62 | |
| 20 | 4129 | 59 | 64 | ||||
| 25 | 5117 | 61 | 65 | ||||
| 30 | 5566 | 65 | 66 | ||||
| 35 | 6104 | 81 | 68 | ||||
| Core Technical Parameters | |||||||
| model | Rotation speed (r/min) |
Blade Angle | Air flow (m³/h) |
Wind Pressure (Pa) |
Motor Model | Power (kW) |
Noise Level dB(A) |
| 5.6 | 1450 | 15 | 6595 | 151 | YSF-7124 | 0.37 | 73 |
| 20 | 8667 | 169 | YSF-8014 | 0.55 | 75 | ||
| 25 | 10379 | 174 | YSF-8024 | 0.75 | 77 | ||
| 30 | 11682 | 186 | YT90S-4 | 1.1 | 77 | ||
| 35 | 12812 | 232 | 79 | ||||
| 960 | 15 | 4362 | 67 | YSF-8016 | 0.37 | 64 | |
| 20 | 5370 | 74 | 66 | ||||
| 25 | 7101 | 76 | 67 | ||||
| 30 | 7724 | 81 | 69 | ||||
| 35 | 8471 | 101 | 71 | ||||
| 6.3 | 1450 | 15 | 9393 | 192 | YSF-8024 | 0.75 | 77 |
| 20 | 12345 | 214 | YT90S-4 | 1.1 | 79 | ||
| 25 | 15297 | 220 | YT90L-4 | 1.5 | 80 | ||
| 30 | 16639 | 236 | 81 | ||||
| 35 | 18250 | 294 | YT100L1-4 | 2.2 | 82 | ||
| 960 | 15 | 6219 | 84 | YSF-8026 | 0.37 | 68 | |
| 20 | 8173 | 94 | 70 | ||||
| 25 | 10128 | 96 | 71 | ||||
| 30 | 11016 | 104 | YT90S-6 | 0.75 | 72 | ||
| 35 | 12082 | 128 | 74 | ||||
| 7.1 | 1450 | 15 | 13444 | 244 | YT90L-4 | 1.5 | 80 |
| 20 | 17670 | 272 | YT100L1-4 | 2.2 | 81 | ||
| 25 | 21895 | 279 | 82 | ||||
| 30 | 23815 | 300 | YT100L2-4 | 3 | 83 | ||
| 35 | 26120 | 373 | YT112M-4 | 4 | 84 | ||
| 960 | 15 | 8902 | 108 | YT90S-6 | 0.75 | 72 | |
| 20 | 11700 | 120 | 74 | ||||
| 25 | 14498 | 123 | 75 | ||||
| 30 | 15766 | 131 | 76 | ||||
| 35 | 17296 | 164 | YT90L-6 | 1.1 | 78 | ||
| 8 | 1450 | 15 | 19235 | 310 | YT100L1-4 | 2.2 | 82 |
| 20 | 25280 | 345 | YT112M-4 | 4 | 83 | ||
| 25 | 31325 | 354 | 84 | ||||
| 30 | 34073 | 380 | YT132S-4 | 5.5 | 85 | ||
| 35 | 37070 | 474 | YT132M-4 | 7.5 | 86 | ||
| 960 | 15 | 12733 | 136 | YT90S-6 | 0.75 | 74 | |
| 20 | 16733 | 151 | YT90L-6 | 1.1 | 76 | ||
| 25 | 20735 | 155 | YT100L-6 | 1.5 | 77 | ||
| 30 | 22556 | 167 | 78 | ||||
| 35 | 24739 | 208 | YT112M-6 | 2.2 | 79 | ||
| 9 | 960 | 15 | 18132 | 172 | YT100L-6 | 1.5 | 78 |
| 20 | 23830 | 191 | YT112M-6 | 2.2 | 79 | ||
| 25 | 29529 | 196 | YT132S-6 | 3 | 80 | ||
| 30 | 32119 | 211 | 81 | ||||
| 35 | 35227 | 263 | YT132M1-6 | 4 | 82 | ||
| 10 | 960 | 15 | 24874 | 213 | YT112M-6 | 2.2 | 79 |
| 20 | 32691 | 236 | YT132S-6 | 3 | 80 | ||
| 25 | 40508 | 242 | YT132M1-6 | 4 | 81 | ||
| 30 | 44062 | 261 | 82 | ||||
| 35 | 48326 | 324 | YT160M-6 | 7.5 | 83 | ||
| 11.2 | 960 | 15 | 34944 | 267 | YT132M1-6 | 4 | 83 |
| 20 | 45927 | 297 | YT132M2-6 | 5.5 | 84 | ||
| 25 | 56909 | 304 | YT160M-6 | 7.5 | 85 | ||
| 30 | 61091 | 337 | 86 | ||||
| 35 | 67892 | 407 | YT160L-6 | 11 | 88 | ||
| model | B | φ1 | φ2 | φ3 | φ4 |
| 2.8 | 310 | 285 | 310 | 335 | 335 |
| 3.15 | 310 | 320 | 345 | 370 | 365 |
| 3.55 | 340 | 359 | 386 | 410 | 408 |
| 4 | 340 | 405 | 428 | 455 | 448 |
| 4.5 | 340 | 455 | 484 | 505 | 505 |
| 5 | 340 | 505 | 532 | 555 | 555 |
| 5.6 | 395 | 565 | 593 | 620 | 625 |
| 6.3 | 435 | 630 | 631 | 685 | 685 |
| 7.1 | 550 | 720 | 742 | 772 | 772 |
| 8 | 550 | 815 | 820 | 860 | 860 |
| 9 | 690 | 920 | 936 | 980 | 980 |
| 10 | 690 | 1020 | 1048 | 1080 | 1080 |
| 11.2 | 690 | 1150 | 1174 | 1210 | 1210 |
