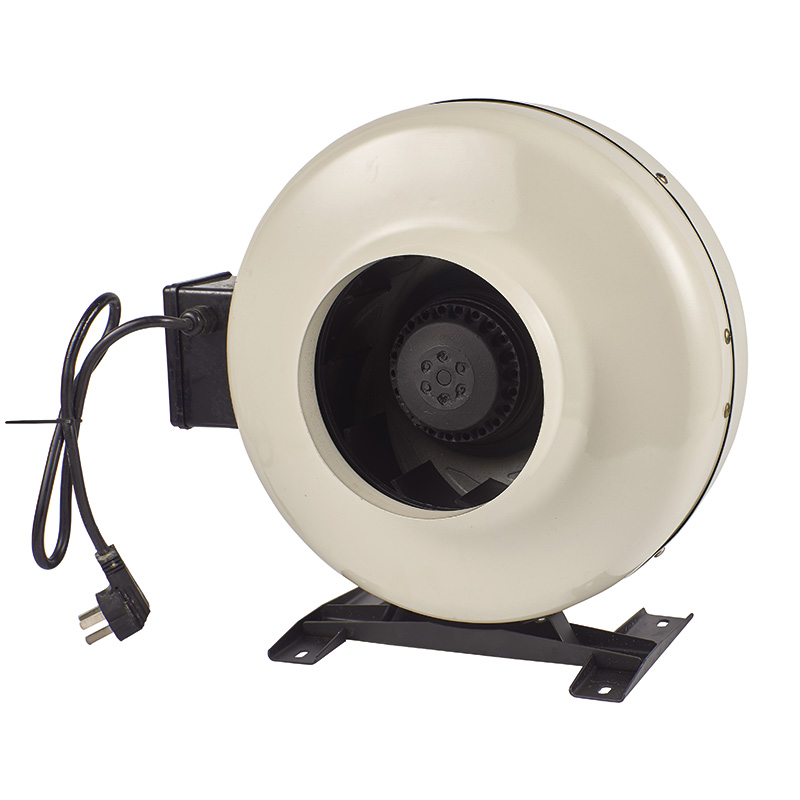

The impeller of the TSK centrifugal duct fan adopts a backward-curved wind wheel and the fan is directly connected to the duct. This fan features low noise, large air volume and no overload. While operating with low noise, the fan not only withstands high pressure but is also suitable for operation in long pipelines or those with many bends. Moreover, it allows for use in humid or damp environments.
High-quality galvanized steel sheets and high-precision stamping technology make this fan regarded as a top-grade product among similar products. The fan can be installed at any angle, and there are 7 models of TSK centrifugal duct fans available for selection.
Applications:
Hotels, offices, conference rooms, karaoke bars, and other noise-sensitive spaces requiring long-distance air delivery.
Application area: hotel rooms, offices, conference rooms, karaoke and other places with long-distance signal transmission and noise level requirements.
| Core Technical Parameters | |||||||||
| Model | Voltage (V) |
Frequency (Hz) |
Electric current (A) |
Power (W) |
Rotation speed（r/min） | Air flow (m³/h) | Noise Level
dB(A) |
Capacitance
(μF) |
Static Pressure
(Pa) |
| TSKNO100 | 220 | 50 | 0.35 | 78 | 2200 | 290 | 47 | 2 | 350 |
| TSKNO125 | 220 | 50 | 0.36 | 80 | 2250 | 405 | 47 | 2 | 390 |
| TSKNO150 | 220 | 50 | 0.59 | 130 | 2150 | 720 | 52 | 3 | 400 |
| TSKNO160 | 220 | 50 | 0.59 | 130 | 2200 | 755 | 52 | 3 | 420 |
| TSKNO200 | 220 | 50 | 0.77 | 170 | 2100 | 1000 | 53 | 4 | 550 |
| TSKNO250 | 220 | 50 | 0.81 | 180 | 2100 | 1105 | 55 | 4 | 670 |
| TSKNO315 | 220 | 50 | 1.27 | 280 | 2100 | 1420 | 57 | 6 | 780 |
| Model | A | B | C | D | E |
| TSKNO100 | 194 | 23 | 245 | 100 | 290 |
| TSKNO125 | 200 | 27 | 245 | 125 | 290 |
| TSKNO150 | 226 | 24 | 335 | 150 | 380 |
| TSKNO160 | 226 | 28 | 335 | 160 | 380 |
| TSKNO200 | 217 | 27 | 335 | 200 | 380 |
| TSKNO250 | 206 | 25 | 335 | 250 | 380 |
| TSKNO315 | 240 | 26 | 395 | 315 | 450 |
The 4-72 Model Centrifugal Fan conveys air and other non-flammable, non-toxic gases that do not corrode steel. No viscous substances are permitted within the system. The dust and hard particulate content must not exceed 150 mg/m³, and the gas temperature must not exceed 80°C. This fan employs backward-curved blades with superior aerodynamic properties, delivering smooth operation, high airflow, minimal vibration, high efficiency, and extended service life. It is widely used for ventilation in industrial and mining enterprises, large-scale buildings, hotels, and restaurants.
The DWT type roof fan features low noise, light weight, smooth operation, high efficiency, and excellent anti-corrosion performance. It is applicable to indoor ventilation and air exchange in mechanical factory buildings and warehouses of petroleum, chemical, textile, metallurgy and other industries.
Ideal for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railways, airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 8 MPa.

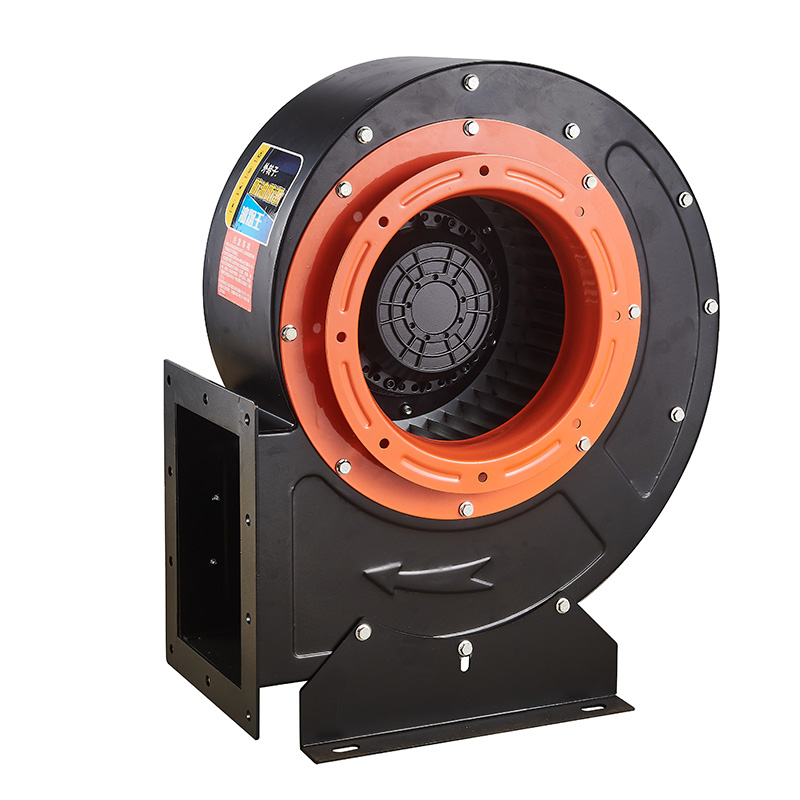

The YWL series external rotor multi-wing centrifugal fan is a new-type centrifugal fan developed by our company by incorporating advanced technologies at home and abroad. All fans are produced via modular manufacturing, subjected to static and dynamic balance correction, and treated with high-grade electrostatic spraying on the surface. They feature small size, large air volume, high efficiency, minimal vibration, low noise, and easy installation and debugging. The gases transported by this series of fans shall not contain viscous substances, and must be non-corrosive, non-flammable, and non-explosive.
The impeller of the transparent medium pressure fan is covered with a mechanical shell, and the center of the impeller is the air inlet. It has the advantages of light weight, beauty, high wind pressure, large air volume, and stable wind pressure. Widely used for ventilation or blowing on woodworking machinery, glass machinery, blown film machines, packaging machinery, plastic product machinery, and other industry equipment.
This silencer is compatible with both HFJZ-A and HFJZ-B models, further reducing operational noise on top of the low noise features of artisan fans. Ideal for high-end commercial kitchens requiring superior acoustic performance, including institutional cafeterias, hotels, and restaurants.
The vortex air pump has the characteristics of compact structure, small volume, light weight, low noise, and dual-use of blowing and suction. The shell is made of aluminum alloy material, further optimizing heat dissipation, and the motor is wound with pure copper wire . Widely used in supporting equipment, water treatment aeration, aquaculture, gas transmission, air dust removal, dry bottle, feeding, collection, etc.
The 9-19 Type High-pressure Centrifugal Ventilator can be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, and free of viscous substances. The temperature of the conveyed medium generally does not exceed 80°C, and the dust and hard particles content does not exceed 150mg/m³. It is suitable for high-pressure ventilation in general forging and smelting, glass, ceramics, radio, electroplating, storage battery industries, as well as material conveying in processing industries such as grain, feed, mineral powder, and plastics.
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.

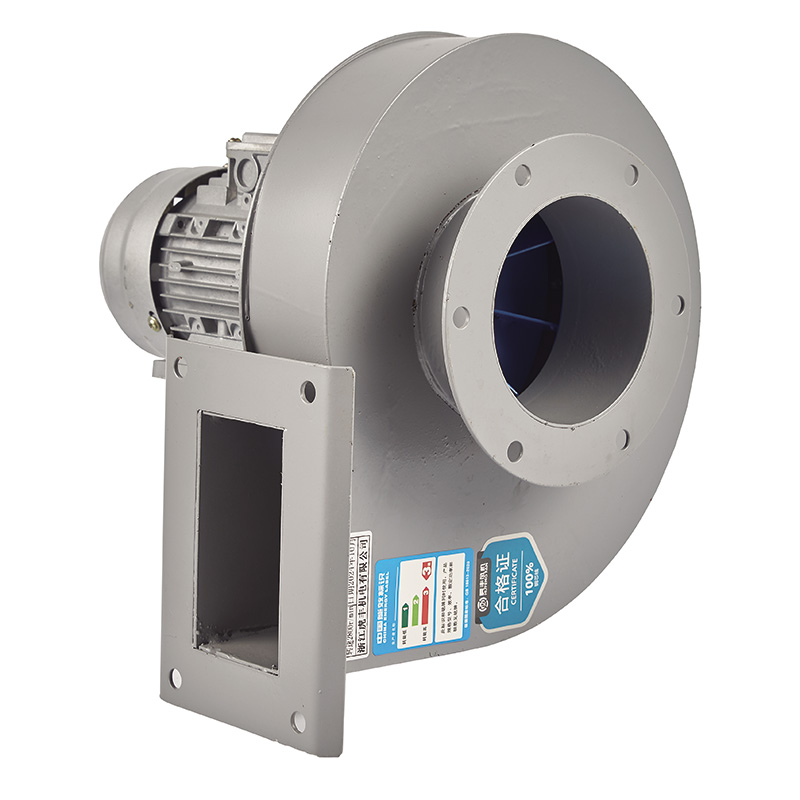

The YW5-47 series boiler induced draft fan (air-cooled high-temperature resistant) is a new-type high-efficiency and low-noise boiler fan developed by our company specifically for the domestic boiler industry, based on referencing advanced foreign prototypes. This series of fans is currently one of the lowest-noise and minimal-vibration products in domestic boiler fans, reaching the advanced domestic level.
The fan features Low noise , high air volume , high pressure , low vibration , compact structure , small volume, light weight , easy installation and use .Versatile mounting bracket supports multiple installation orientations.
The YE3 Series Three-Phase Induction Motor is a fully enclosed self fan squirrel cage three-phase induction motor, which adopts the national unified design standard. It has the characteristics of high efficiency and energy saving, high starting torque, low noise, small vibration, high reliability, power level and installation size in accordance with the IEC standards, and easy use and maintenance. This series of motors is widely used in general places and precision instruments without special requirements, especially suitable for industries such as reducers, air compressors, water pumps, oil pumps, assembly lines, packaging, food machinery, etc.
SF Series Axial Flow Fans feature a smooth streamlined surface, offering advantages such as stable operation, high efficiency, low noise, and low energy consumption. The SF series fans are classified into three types by usage requirements: duct type, fixed type, and post type, and divided into 12 models by impeller diameter.
The DPT Ultra-Quiet Ventilator is a product developed by our company after introducing advanced technologies and manufacturing methods both at home and abroad.Suitable for ventilation in quiet places such as offices, hotels, villas, guesthouses, etc.
Applications: Suitable for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railway stations and airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
Ideal for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railways, airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
