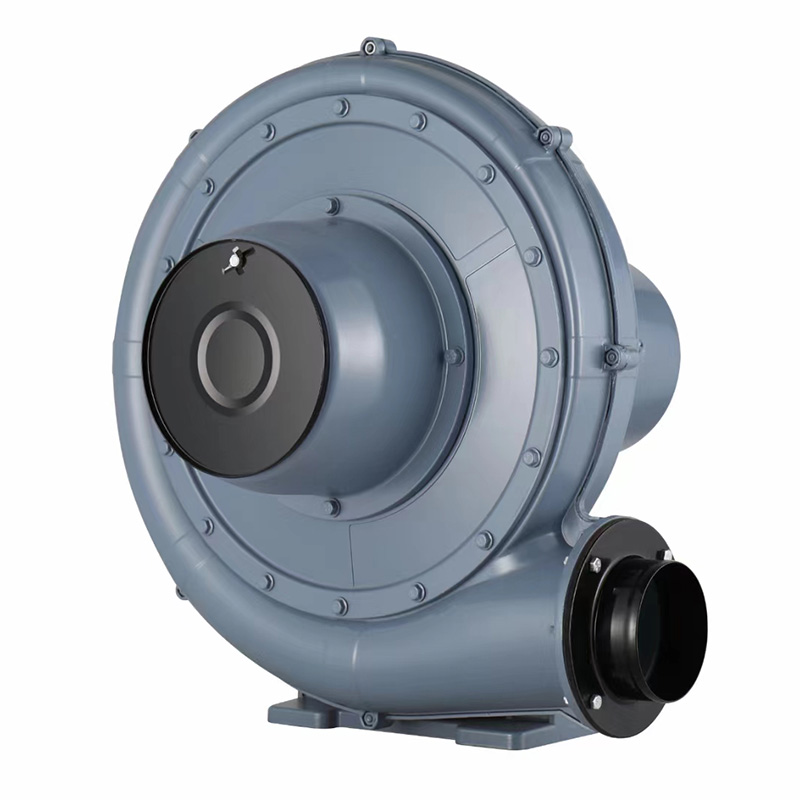

The impeller of the transparent medium pressure fan is covered with a mechanical shell, and the center of the impeller is the air inlet. It has the advantages of light weight, beauty, high wind pressure, large air volume, and stable wind pressure.
Widely used for ventilation or blowing on woodworking machinery, glass machinery, blown film machines, packaging machinery, plastic product machinery, and other industry equipment.
The impeller of the transparent medium pressure fan is covered with a mechanical shell, and the center of the impeller is the air inlet. It has the advantages of light weight, beauty, high wind pressure, large air volume, and stable wind pressure.
Widely used for ventilation or blowing on woodworking machinery, glass machinery, blown film machines, packaging machinery, plastic product machinery, and other industry equipment.
| Core Technical Parameters | ||||
| Model | Voltage (V) |
Power (kW) |
Air flow (m³/h) |
Negative Pressure
(kPa) |
| TB-100 | 380 | 0.75 | 1080 | 1.3 |
| 380 | 1.5 | 1200 | 2 | |
| TB-125 | 380 | 2.2 | 1980 | 2.4 |
| 380 | 3 | 2350 | 3 | |
| TB-150 | 380 | 4 | 2880 | 4 |
| 380 | 5.5 | 3000 | 4 | |
| 380 | 7.5 | 3600 | 4 | |
The YWF Series External Rotor Fan is a new product developed by our company through repeated research and trial production. Compared with conventional axial flow fans, this fan features higher efficiency, lower noise, minimal vibration, compact structure, and aesthetically pleasing appearance. The impeller is directly mounted on the outer circumference of the external rotor, resulting in shorter axial dimensions. Its successful development represents a major breakthrough in the field of axial flow fans. This series has obtained multiple national patents.
The SFA premium axial flow fan improves upon the SF model by redesigning the blades and adopting an aluminum alloy casing to enhance the motor’s sealing performance. It features low noise, large air volume, high wind pressure, excellent heat dissipation, and stable operation.
The T40 axial flow fan is suitable for ventilation and heat dissipation in general factories, warehouses, offices, and residences. Removing the casing allows it to be used as a free-standing fan, or it can be installed in spaced series along long exhaust ducts to increase air pressure in the pipeline. According to user needs, this series can adopt an external motor (mounted on the casing) with belt drive in its structure, designated as model KT40. It shares the same performance parameters as the T40 fan, with the primary function of exhausting high-temperature or moisture-resistant gases.
The impeller of the TSK centrifugal duct fan adopts a backward-curved wind wheel and the fan is directly connected to the duct. This fan features low noise, large air volume and no overload. While operating with low noise, the fan not only withstands high pressure but is also suitable for operation in long pipelines or those with many bends. Moreover, it allows for use in humid or damp environments.
The FA series exhaust fan has the characteristics of sturdy structure, beautiful appearance, low noise, and low energy consumption, and is suitable for ventilation, air exchange, and cooling in general environments such as factories, warehouses, offices, canteens, and kitchens.
The YWL series external rotor multi-wing centrifugal fan is a new-type centrifugal fan developed by our company by incorporating advanced technologies at home and abroad. All fans are produced via modular manufacturing, subjected to static and dynamic balance correction, and treated with high-grade electrostatic spraying on the surface. They feature small size, large air volume, high efficiency, minimal vibration, low noise, and easy installation and debugging. The gases transported by this series of fans shall not contain viscous substances, and must be non-corrosive, non-flammable, and non-explosive.
The stove fan can be installed in the stove system to enhance air circulation or exhaust smoke. It is commonly found in household stoves, integrated stoves or commercial kitchen equipment.
The blades of the medium pressure fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
The YE3 Series Three-Phase Induction Motor is a fully enclosed self fan squirrel cage three-phase induction motor, which adopts the national unified design standard. It has the characteristics of high efficiency and energy saving, high starting torque, low noise, small vibration, high reliability, power level and installation size in accordance with the IEC standards, and easy use and maintenance. This series of motors is widely used in general places and precision instruments without special requirements, especially suitable for industries such as reducers, air compressors, water pumps, oil pumps, assembly lines, packaging, food machinery, etc.
The HTFC series multi wing low-noise cabinet centrifugal fan is a newly designed and developed product by our company to meet the needs of the increasingly developing commercial kitchen oil fume exhaust, industrial purification, and fresh air conditioning industries. Based on the digestion and absorption of advanced technologies at home and abroad, the principle of combining aerodynamics and aeroacoustics is applied. It has the characteristics of large air volume, high static pressure, low noise, and small vibration.
The medium pressure fan adopts stamped and aluminum alloy die-casting shell and fan blades, which are lightweight, novel in style, beautiful in appearance, and easy to install.The blades of the fan are designed to have the advantages of large air volume, high pressure, low vibration and low noise.
Applications: Suitable for moisture-proof drying, localized heating, construction sites, outdoor heating, equipment insulation, railway stations and airports, yachts and ships, paint drying, mobile heating, convenient warming, venues and clubs, clean heat delivery, rapid temperature rise, etc. Working pressure ≤ 0.8 MPa.
The SFG Series High-Temperature Axial Fan is upgraded from the SF model with a redesigned impeller and adopts an aluminum alloy casing to enhance the motor’s sealing performance,The motor incorporates high-temperature enameled wire, high-temperature bearings, and high-temperature lead wires. Consequently, this product can operate in environments with elevated temperatures (ambient temperature ≤100°C) or high humidity. The fan features a novel structure, aesthetically pleasing appearance, and superior performance, characterized by low noise, high airflow, elevated static pressure, and smooth operation.
The YW5-47 series boiler induced draft fan (air-cooled high-temperature resistant) is a new-type high-efficiency and low-noise boiler fan developed by our company specifically for the domestic boiler industry, based on referencing advanced foreign prototypes. This series of fans is currently one of the lowest-noise and minimal-vibration products in domestic boiler fans, reaching the advanced domestic level.
The 4-79 series centrifugal fans are applicable for indoor ventilation in general factories and large buildings, capable of both air intake and exhaust. The gases transported include air and other non-combustible, human-harmless gases that are non-corrosive to steel materials. The gases must not contain viscous substances, with the dust and hard particles content not exceeding 150mg/m³, and the gas temperature should not exceed 80°C.
The 4-72 Model Centrifugal Fan conveys air and other non-flammable, non-toxic gases that do not corrode steel. No viscous substances are permitted within the system. The dust and hard particulate content must not exceed 150 mg/m³, and the gas temperature must not exceed 80°C. This fan employs backward-curved blades with superior aerodynamic properties, delivering smooth operation, high airflow, minimal vibration, high efficiency, and extended service life. It is widely used for ventilation in industrial and mining enterprises, large-scale buildings, hotels, and restaurants.
