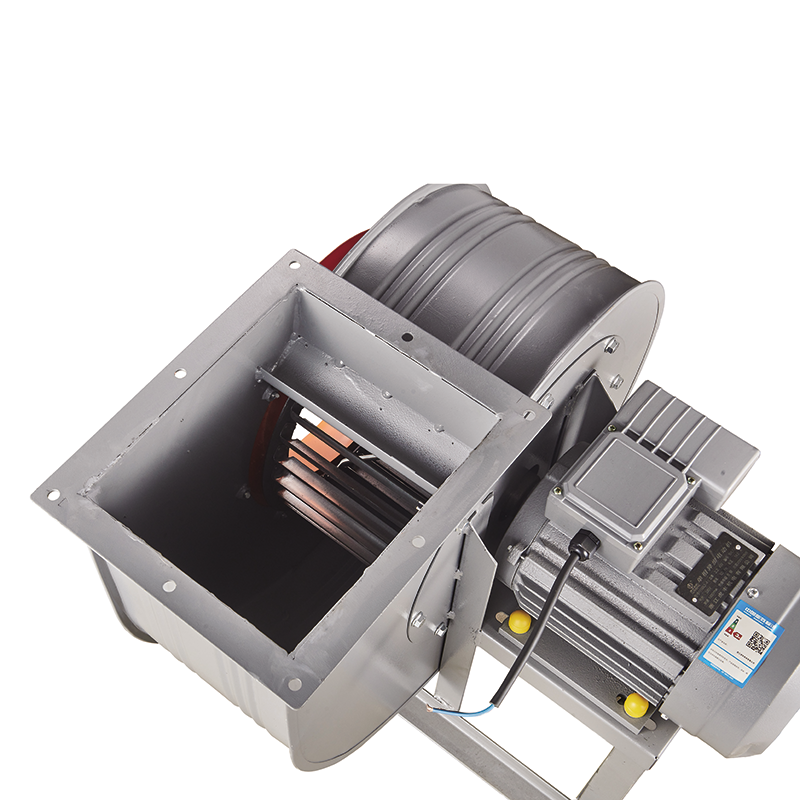

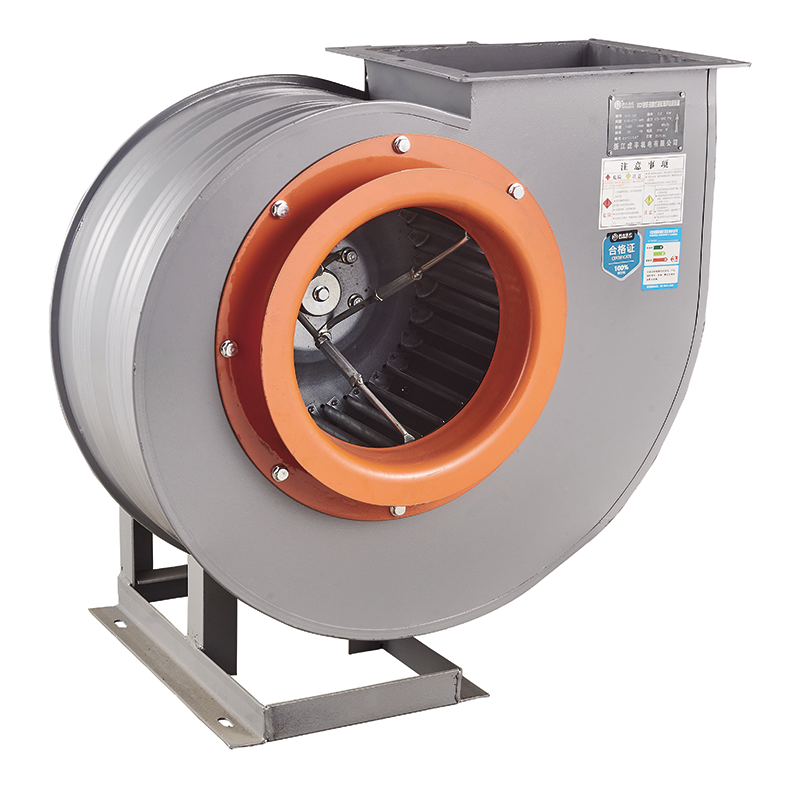

The XCF is a new type developed from the CF-11 series. Engineered to incorporate the needs of modern urban kitchens, this comprehensive fan balances features like high resistance, high static pressure, ultra-low noise, and safety in its design.Compared to conventional multi-blade fans, it offers advantages such as higher pressure and lower noise levels. Moreover, it features a high static pressure design to tackle long ductwork and high resistance typical of modern kitchen setups.Featuring a redesigned impeller with an optimized aerodynamic blade structure. This delivers key advantages: low noise, minimal vibration, and extended service life.
Suitable for kitchen exhaust, fume extraction, or ventilation in public venues like canteens, hotels, and restaurants. Also ideal for use with production equipment such as grain machinery, chemical machinery, and plastic machinery. Highly versatile and adaptable for wide-ranging applications.
| Core Technical Parameters | ||||||
| Model | Power (kW) |
Voltage (V) |
Rotational Speed
（r/min） |
Air flow (m³/h) |
Total pressure (Pa) |
Noise Level
dB(A) |
| 8A | 1.1KW-2P | 220/380 | 2800 | 1900-2500 | 1200-959 | 74 |
| 10A | 750W-4P | 220/380 | 1450 | 1950-2850 | 490-390 | 68 |
| 12ASmall | 1.1KW-4P | 220/380 | 1450 | 3900-5850 | 700-466 | 68 |
| 12AMedium | 1.5KW-4P | 220/380 | 1450 | 4620-6930 | 920-610 | 68 |
| 12ALarge | 1.5KW-4P | 220/380 | 1450 | 4620-6930 | 920-610 | 68 |
| 13A | 2.2KW-4P | 220/380 | 1450 | 5180-7770 | 1010-670 | 68 |
| 14A | 2.2KW-4P | 220/380 | 1450 | 5270-7905 | 1035-690 | 68 |
| 14A | 3KW-4P | 220/380 | 1450 | 5735-8600 | 1255-835 | 70 |
| 16A | 3KW-4P | 380 | 1450 | 7240-10860 | 1290-860 | 70 |
| 16A | 4KW-4P | 220/380 | 1450 | 7600-11400 | 1360-905 | 72 |
| 18A | 5.5KW-4P | 380 | 1450 | 9200-13800 | 1680-1200 | 76 |
| 18A | 3KW-6P | 380 | 960 | 7000-9000 | 750-600 | 72 |
| 20A | 7.5KW-4P | 380 | 1450 | 12620-18900 | 1980-1390 | 82 |
| 20A | 4KW-6P | 380 | 960 | 8500-12750 | 1260-835 | 76 |
| Model | Outlet Flange Dimensions
(mm) |
Inlet Flange Dimensions
(mm) |
External Dimensions
(mm) |
||||||||
| A1 | A | B1 | B | D | d | L | L1 | H | h | W | |
| 10A | 195 | 124 | 240 | 167 | 268 | 207 | 465 | 166 | 478 | 308 | 421 |
| 12ASmall | 198 | 128 | 288 | 220 | 315 | 254 | 567 | 194 | 592 | 388 | 430 |
| 12AMedium | 225 | 165 | 305 | 245 | 296 | 240 | 600 | 193 | 620 | 390 | 560 |
| 12ALarge | 283 | 223 | 305 | 245 | 296 | 240 | 600 | 193 | 620 | 390 | 620 |
| 13A | 280 | 220 | 330 | 270 | 320 | 260 | 650 | 210 | 660 | 420 | 635 |
| 14A | 280 | 220 | 360 | 300 | 360 | 300 | 700 | 225 | 720 | 450 | 635 |
| 16A | 310 | 250 | 390 | 330 | 400 | 340 | 750 | 245 | 805 | 515 | 695 |
| 18A | 351 | 275 | 436 | 360 | 460 | 400 | 850 | 270 | 910 | 585 | 800 |
| 20A | 351 | 275 | 466 | 390 | 520 | 460 | 895 | 300 | 990 | 635 | 780 |
