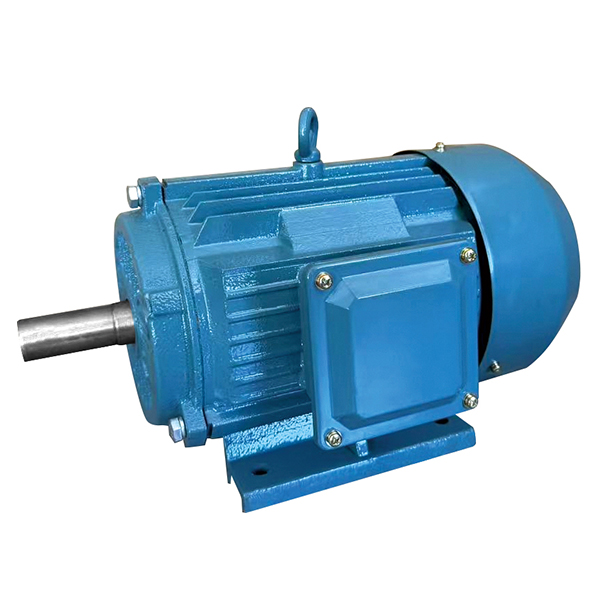

The YE3 Series Three-Phase Induction Motor is a fully enclosed self fan squirrel cage three-phase induction motor, which adopts the national unified design standard. It has the characteristics of high efficiency and energy saving, high starting torque, low noise, small vibration, high reliability, power level and installation size in accordance with the IEC standards, and easy use and maintenance. This series of motors is widely used in general places and precision instruments without special requirements, especially suitable for industries such as reducers, air compressors, water pumps, oil pumps, assembly lines, packaging, food machinery, etc.
The YE3 Series Three-Phase Induction Motor is a fully enclosed self fan squirrel cage three-phase induction motor, which adopts the national unified design standard. It has the characteristics of high efficiency and energy saving, high starting torque, low noise, small vibration, high reliability, power level and installation size in accordance with the IEC standards, and easy use and maintenance. This series of motors is widely used in general places and precision instruments without special requirements, especially suitable for industries such as reducers, air compressors, water pumps, oil pumps, assembly lines, packaging, food machinery, etc.
| 2-pole motor Main technical parameters | ||||||||||||||
| Model | Rated power | Full load | Rated torque | Locked-Rotor Torque
Rated Torque |
Breakdown Torque
Rated Torque |
Locked-Rotor Current/Rated Current | Noise Level dB(A) | Weight (kg) |
||||||
| Rotational Speed | Electric current（A） | Efficiency | power factor | |||||||||||
| （KW） | （HP） | （r/min） | 380（V） | 400（V） | 415（V） | η(%) | COS Φ | TN（Н·м） | TST（Н·м） | TMAX（Н·м） | Ist/IN（А） | |||
| 2-pole motor | ||||||||||||||
| YE3-80M1-2 | 0.75 | 1 | 2843 | 1.72 | 1.64 | 1.58 | 80.7 | 0.82 | 2.52 | 2.3 | 2.3 | 7 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2843 | 2.43 | 2.31 | 2.23 | 82.7 | 0.83 | 3.7 | 2.2 | 2.3 | 7.3 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2 | 2856 | 3.22 | 3.06 | 2.95 | 84.2 | 0.84 | 5.02 | 2.2 | 2.3 | 7.6 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3 | 2856 | 4.58 | 4.35 | 4.19 | 85.9 | 0.85 | 7.36 | 2.2 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3 | 4 | 2883 | 6.02 | 5.71 | 5.51 | 87.1 | 0.87 | 9.94 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4 | 5.5 | 2892 | 7.84 | 7.45 | 7.18 | 88.1 | 0.88 | 13.21 | 2.2 | 2.3 | 8.3 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2910 | 10.6 | 10.1 | 9.75 | 89.2 | 0.88 | 18.05 | 2 | 2.3 | 8.3 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2910 | 14.4 | 13.7 | 13.2 | 90.1 | 0.88 | 24.61 | 2 | 2.3 | 7.9 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2937 | 20.6 | 19.6 | 18.9 | 91.2 | 0.89 | 35.76 | 2 | 2.3 | 8.1 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2937 | 27.9 | 26.5 | 25.5 | 91.9 | 0.89 | 48.77 | 2 | 2.3 | 8.1 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2937 | 34.2 | 32.5 | 31.3 | 92.4 | 0.89 | 60.15 | 2 | 2.3 | 8.2 | 81 | 152 |
| YE3-180M-2 | 22 | 30 | 2946 | 40.5 | 38.5 | 37.1 | 92.7 | 0.89 | 71.31 | 2 | 2.3 | 8.2 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2955 | 54.9 | 52.1 | 50.3 | 93.3 | 0.89 | 96.94 | 2 | 2.3 | 7.6 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2955 | 67.4 | 64 | 61.7 | 93.7 | 0.89 | 119.6 | 2 | 2.3 | 7.6 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2964 | 80.8 | 76.8 | 74 | 94 | 0.9 | 145 | 2 | 2.3 | 7.7 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2969 | 98.5 | 93.5 | 90.2 | 94.3 | 0.9 | 176.9 | 2 | 2.3 | 7.7 | 89 | 400 |
| YE3-280S-2 | 75 | 100 | 2973 | 133.7 | 127 | 122.4 | 94.7 | 0.9 | 240.9 | 1.8 | 2.3 | 7.1 | 91 | 525 |
| YE3-280M-2 | 90 | 120 | 2973 | 159.9 | 151.9 | 146.4 | 95 | 0.9 | 289.1 | 1.8 | 2.3 | 7.1 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2978 | 195.1 | 185.3 | 178.6 | 95.2 | 0.9 | 352.8 | 1.8 | 2.3 | 7.1 | 92 | 990 |
| YE3-315M-2 | 132 | 180 | 2978 | 233.6 | 221.9 | 213.9 | 95.4 | 0.9 | 423.3 | 1.8 | 2.3 | 7.1 | 92 | 1180 |
| YE3-315L1-2 | 160 | 220 | 2978 | 279.4 | 265.5 | 255.9 | 95.6 | 0.91 | 513.1 | 1.8 | 2.3 | 7.2 | 92 | 1280 |
| YE3-315L2-2 | 200 | 270 | 2978 | 348.6 | 331.1 | 319.2 | 95.8 | 0.91 | 641.4 | 1.8 | 2.2 | 7.2 | 92 | 1250 |
| YE3-355M-2 | 250 | 340 | 2982 | 435.7 | 413.9 | 399 | 95.8 | 0.91 | 800.6 | 1.6 | 2.2 | 7.2 | 100 | 1910 |
| YE3-355L-2 | 315 | 430 | 2982 | 549 | 521.5 | 502.7 | 95.8 | 0.91 | 1008.7 | 1.6 | 2.2 | 7.2 | 100 | 2000 |
| 4-pole motor Main technical parameters | ||||||||||||||
| Model | Rated power | Full load | Rated Torque | Locked-Rotor Torque
Rated Torque |
Breakdown Torque
Rated Torque |
Locked-Rotor Current
Rated Current |
Noise Level dB(A) | Weight (kg) |
||||||
| Rotational Speed | Electric current（A） | Efficiency | power factor | |||||||||||
| (kW) | （HP） | （r/min） | 380（V） | 400（V） | 415（V） | η(%) | COS Φ | TN（Н·м） | TST（Н·м） | TMAX（Н·м） | Is/IN（A） | |||
| 4-pole motor | ||||||||||||||
| YE3-80M2-4 | 0.75 | 1 | 1401 | 1.84 | 1.75 | 1.69 | 82.5 | 0.75 | 5.11 | 2.3 | 2.3 | 6.6 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1410 | 2.61 | 2.48 | 2.39 | 84.1 | 0.76 | 7.45 | 2.3 | 2.3 | 6.8 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2 | 1410 | 3.47 | 3.3 | 3.18 | 85.3 | 0.77 | 10.16 | 2.3 | 2.3 | 7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3 | 1428 | 4.76 | 4.52 | 4.36 | 86.7 | 0.81 | 14.71 | 2.3 | 2.3 | 7.6 | 64 | 39.5 |
| YE3-100L2-4 | 3 | 4 | 1428 | 6.34 | 6.02 | 5.8 | 87.7 | 0.82 | 20.06 | 2.3 | 2.3 | 7.6 | 64 | 43.5 |
| YE3-112M-4 | 4 | 5.5 | 1446 | 8.37 | 7.95 | 7.66 | 88.6 | 0.82 | 26.4 | 2.2 | 2.3 | 7.8 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1446 | 11.2 | 10.7 | 10.3 | 89.6 | 0.83 | 36.3 | 2 | 2.3 | 7.9 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1446 | 15 | 14.3 | 13.7 | 90.4 | 0.84 | 49.5 | 2 | 2.3 | 7.5 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1464 | 21.5 | 20.4 | 19.7 | 91.4 | 0.85 | 71.8 | 2.2 | 2.3 | 7.7 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1464 | 28.8 | 27.3 | 26.3 | 92.1 | 0.86 | 97.8 | 2.2 | 2.3 | 7.8 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1469 | 35.3 | 33.5 | 32.3 | 92.6 | 0.86 | 120.3 | 2 | 2.3 | 7.8 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1469 | 41.8 | 39.7 | 38.3 | 93 | 0.86 | 143.1 | 2 | 2.3 | 7.8 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1473 | 56.6 | 53.8 | 51.9 | 93.6 | 0.86 | 194.5 | 2 | 2.3 | 7.3 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1478 | 69.6 | 66.1 | 63.7 | 93.9 | 0.86 | 239.1 | 2 | 2.3 | 7.4 | 78 | 308 |
| YE3-225M-4 | 45 | 60 | 1478 | 84.4 | 80.2 | 77.3 | 94.2 | 0.86 | 290.8 | 2 | 2.3 | 7.4 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1478 | 102.7 | 97.6 | 94.1 | 94.6 | 0.86 | 355.5 | 2.2 | 2.3 | 7.4 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1482 | 136.3 | 129.5 | 124.8 | 95 | 0.88 | 483.2 | 2 | 2.3 | 6.9 | 80 | 541 |
| YE3-280M-4 | 90 | 120 | 1482 | 163.2 | 155.1 | 149.5 | 95.2 | 0.88 | 579.9 | 2 | 2.3 | 6.9 | 80 | 630 |
| YE3-315S-4 | 110 | 160 | 1482 | 196.8 | 187 | 180.2 | 95.4 | 0.89 | 708.8 | 2 | 2.2 | 7 | 88 | 910 |
| YE3-315M-4 | 132 | 180 | 1482 | 235.7 | 223.9 | 215.8 | 95.6 | 0.89 | 850.5 | 2 | 2.2 | 7 | 88 | 1005 |
| YE3-315L1-4 | 160 | 220 | 1482 | 285.1 | 270.9 | 261.1 | 95.8 | 0.89 | 1030.9 | 2 | 2.2 | 7.1 | 88 | 1085 |
| YE3-315L2-4 | 200 | 270 | 1482 | 351.7 | 334.1 | 322 | 96 | 0.9 | 1288.7 | 2 | 2.2 | 7.1 | 88 | 1160 |
| YE3-355M-4 | 250 | 340 | 1491 | 439.6 | 417.7 | 402.6 | 96 | 0.9 | 1601.1 | 2 | 2.2 | 7.1 | 95 | 1830 |
| YE3-355L-4 | 315 | 430 | 1491 | 553.9 | 526.2 | 507.2 | 96 | 0.9 | 2017.4 | 2 | 2.2 | 7.1 | 95 | 1990 |
| 6-pole motor Main technical parameters | ||||||||||||||
| Model | Rated power | Full load | Rated torque | Locked-Rotor Torque
Rated Torque |
Breakdown Torque
Rated Torque |
Locked-Rotor Current
Rated Current |
Noise Level dB(A) | Weight (kg) |
||||||
| Rotation Speed | Electric current (A) |
Efficiency | Power Factor | |||||||||||
| （KW） | （HP） | （r/min） | 380（V） | 400（V） | 415（V） | η(%) | COS Φ | TN（Н·м） | TST（Н·м） | TMAX（Н·м） | Ist/IN（А） | |||
| 6-pole motor | ||||||||||||||
| YE3-90S-6 | 0.75 | 1 | 919 | 2.03 | 1.93 | 1.86 | 78.9 | 0.71 | 7.79 | 2 | 2.1 | 6 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 919 | 2.83 | 2.69 | 2.59 | 81 | 0.73 | 11.43 | 2 | 2.1 | 6 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2 | 937 | 3.78 | 3.6 | 3.47 | 82.5 | 0.73 | 15.29 | 2 | 2.1 | 6.5 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3 | 946 | 5.36 | 5.09 | 4.91 | 84.3 | 0.74 | 22.2 | 2 | 2.1 | 6.6 | 65 | 48 |
| YE3-132S-6 | 3 | 4 | 964 | 7.2 | 6.84 | 6.59 | 85.6 | 0.74 | 29.7 | 2 | 2.1 | 6.8 | 69 | 65 |
| YE3-132M1-6 | 4 | 5.5 | 964 | 9.46 | 8.99 | 8.66 | 86.8 | 0.74 | 39.6 | 2 | 2.1 | 6.8 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 964 | 12.7 | 12 | 11.6 | 88 | 0.75 | 54.5 | 2 | 2.1 | 7 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 973 | 16.2 | 15.4 | 14.8 | 89.1 | 0.79 | 73.6 | 2 | 2.1 | 7 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 973 | 23.1 | 22 | 21.2 | 90.3 | 0.8 | 108 | 2 | 2.1 | 7.2 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 973 | 30.9 | 29.3 | 28.2 | 91.2 | 0.81 | 147.2 | 2 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 978 | 37.8 | 36 | 34.7 | 91.7 | 0.81 | 180.7 | 2 | 2.1 | 7.3 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 978 | 44.8 | 42.5 | 41 | 92.2 | 0.81 | 214.9 | 2 | 2.1 | 7.4 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 982 | 59.1 | 56.2 | 54.1 | 92.9 | 0.83 | 291.7 | 2 | 2.1 | 6.9 | 74 | 294 |
| YE3-250M-6 | 37 | 50 | 982 | 71.7 | 68.1 | 65.7 | 93.3 | 0.84 | 359.8 | 2 | 2.1 | 7.1 | 76 | 388 |
| YE3-280S-6 | 45 | 60 | 982 | 85.8 | 81.6 | 78.6 | 93.7 | 0.85 | 437.6 | 2 | 2 | 7.3 | 78 | 495 |
| YE3-280M-6 | 55 | 75 | 982 | 103.3 | 98.1 | 94.6 | 94.1 | 0.86 | 534.8 | 2 | 2 | 7.3 | 78 | 574 |
| YE3-315S-6 | 75 | 100 | 987 | 143.4 | 136.2 | 131.3 | 94.6 | 0.84 | 726 | 2 | 2 | 6.6 | 83 | 836 |
| YE3-315M-6 | 90 | 120 | 987 | 169.5 | 161 | 155.2 | 94.9 | 0.85 | 871.2 | 2 | 2 | 6.7 | 83 | 940 |
| YE3-315L1-6 | 110 | 150 | 987 | 206.8 | 196.4 | 189.3 | 95.1 | 0.85 | 1064.8 | 2 | 2 | 6.7 | 83 | 1068 |
| YE3-315L2-6 | 132 | 180 | 987 | 244.5 | 232.2 | 223.8 | 95.4 | 0.86 | 1277.7 | 2 | 2 | 6.8 | 83 | 1140 |
| YE3-355M1-6 | 160 | 220 | 991 | 295.7 | 280.9 | 270.7 | 95.6 | 0.86 | 1541.7 | 1.8 | 2 | 6.8 | 85 | 1742 |
| YE3-355M2-6 | 200 | 270 | 991 | 364.6 | 346.4 | 333.8 | 95.8 | 0.87 | 1927.1 | 1.8 | 2 | 6.8 | 85 | 1850 |
| YE3-355L-6 | 250 | 340 | 991 | 455.7 | 433 | 417.3 | 95.8 | 0.87 | 2408.9 | 1.8 | 2 | 6.8 | 85 | 1960 |
