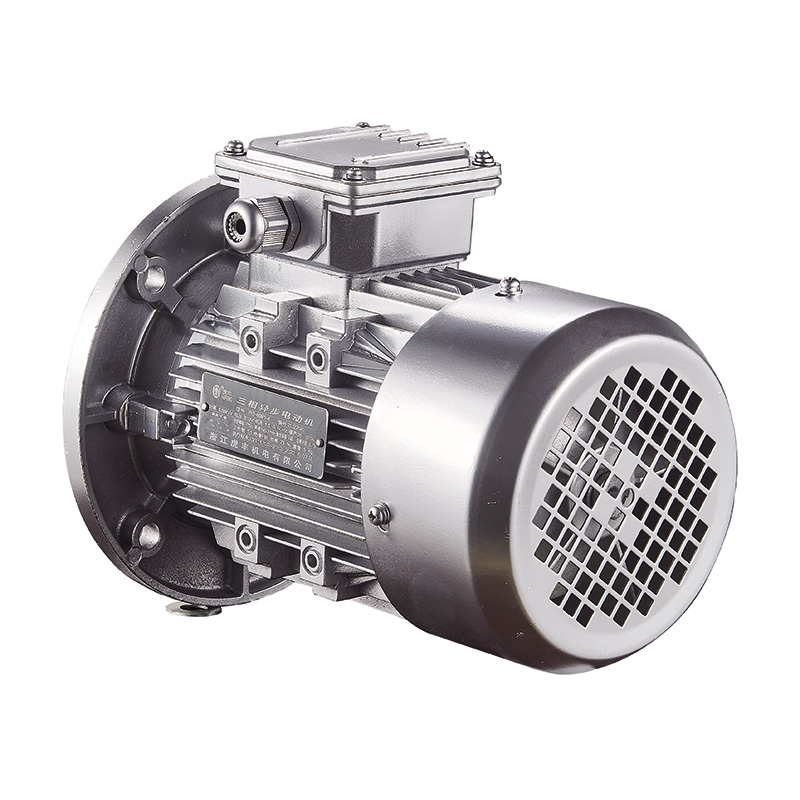

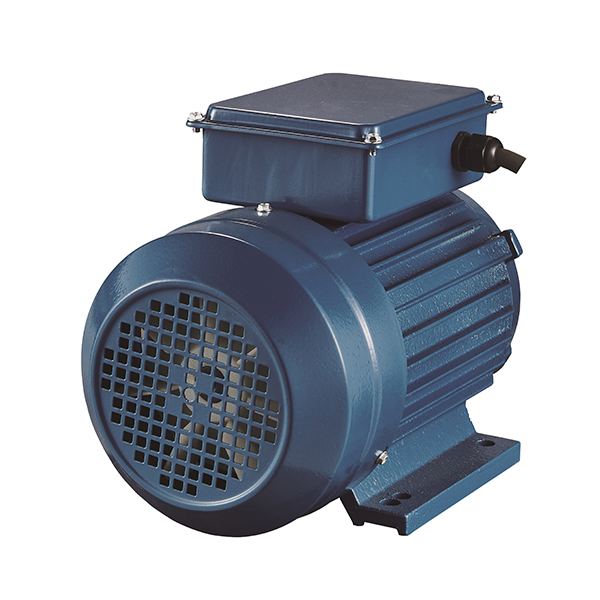

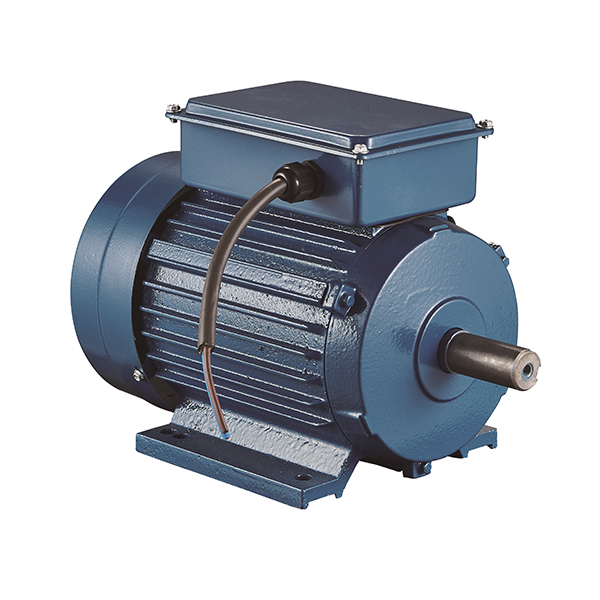

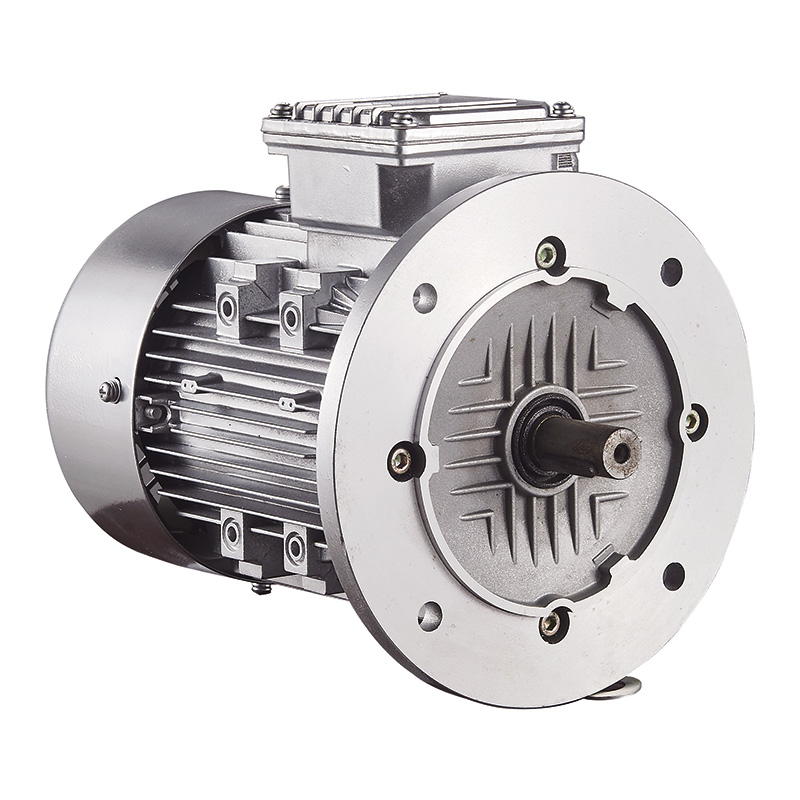

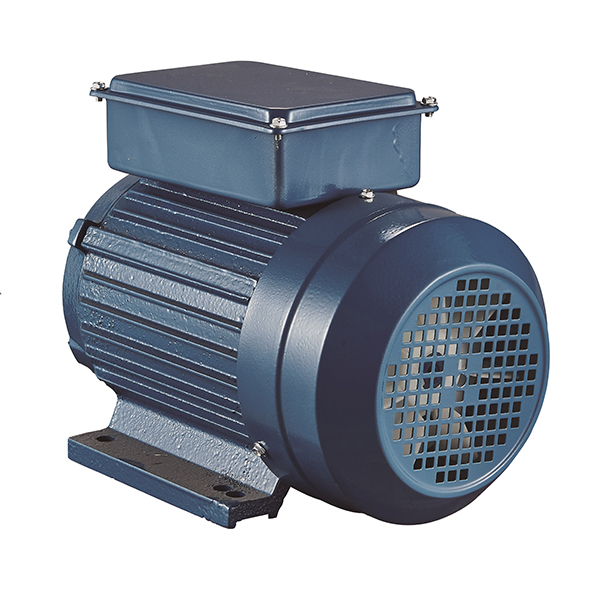

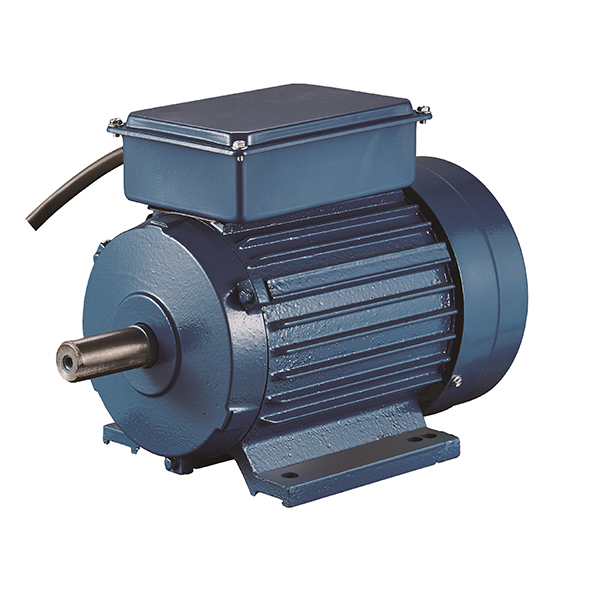

The YL series electric motor is suitable for applications without three-phase power supply and is used to drive various equipment such as metal cutting machines, pumps, transportation machinery, mixers, agricultural machinery, food machinery, and household appliances.
| Core Technical Parameters | |||||||||
| Model | Power | Electric current
（A） |
Rotational Speed
（r/min） |
Efficiency | Power Factor | Locked-Rotor Current | Locked-Rotor Torque
Rated Torque |
Breakdown Torque
Rated Torque |
|
| (KW) | （HP） | η(%) | COS Φ | Ist/IN（А） | TST（Н·м） | TMAX（Н·м） | |||
| YL7112 | 0.37 0. 5 | 2.73 | 2800 | 67 | 0.92 | 16 | 1.8 | 1 .7 | |
| YL7122 | 0. 55 | 0.75 | 3.88 | 2800 | 70 | 0.92 | 21 | 1.8 | |
| YL7114 | 0.25 | 0.37 | 1.81 | 1400 | 62 | 0.92 | 12 | 1.8 | |
| YL7124 | 0.37 | 0. 5 | 2.66 | 1400 | 65 | 0.92 | 16 | 1.8 | |
| YL8012 | 0.75 | 1 | 4.7 | 2870 | 72 | 0.92 | 29 | 1.8 | |
| YL8022 | 1. 1 | 1. 5 | 6.8 | 2860 | 75 | 0.95 | 40 | 1.8 | |
| YL8014 | 0. 55 | 0.75 | 3.61 | 1430 | 68 | 0.92 | 21 | 1.8 | |
| YL8024 | 0.75 | 1 | 4.81 | 1430 | 71 | 0.92 | 29 | 1.8 | |
| YL90S-2 | 1. 5 | 2 | 9. 17 | 2850 | 76 | 0.95 | 55 | 1.7 | |
| YL90S-4 | 1. 1 | 1. 5 | 7 | 1430 | 73 | 0.95 | 40 | 1.7 | |
| YL90L-2 | 2.2 | 3 | 13. 1 | 2830 | 77 | 0.95 | 80 | 1.7 | |
| YL90L2-2 | 2.7 | 3.7 | 17. 5 | 2870 | 79 | 0.97 | 1 10 | 1.8 | 2 .6 |
| YL90L3-2 | 3 | 4 | 19.8 | 2870 | 80 | 0.97 | 130 | 1.8 | |
| YL90L-4 | 1. 5 | 2 | 9.7 | 1420 | 75 | 0.95 | 55 | 1.7 | 1 .7 |
| YL90L2-4 | 2.2 | 3 | 13.7 | 1420 | 78 | 0.98 | 60 | 1.8 | |
| YL100L1-2 | 3 | 4 | 17.4 | 2900 | 79 | 0.95 | 1 10 | 1.7 | |
| YL100L2-2 | 3.7 | 5 | 24.4 | 2880 | 81 | 0.98 | 140 | 1.7 | 2.2 |
| YL100L1-4 | 2.2 | 3 | 14.2 | 1430 | 76 | 0.95 | 80 | 1.7 | 1 .7 |
| YL100L2-4 | 3 | 4 | 18.98 | 1430 | 77 | 0.95 | 1 10 | 1.7 | |
